Aristo 7275,000007275,0000 07275 Cutter Round Shank Shaft Knife Blades For Sale Service Shop
.jpg)

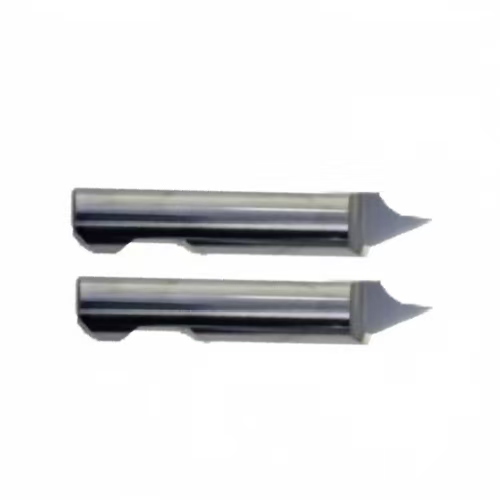

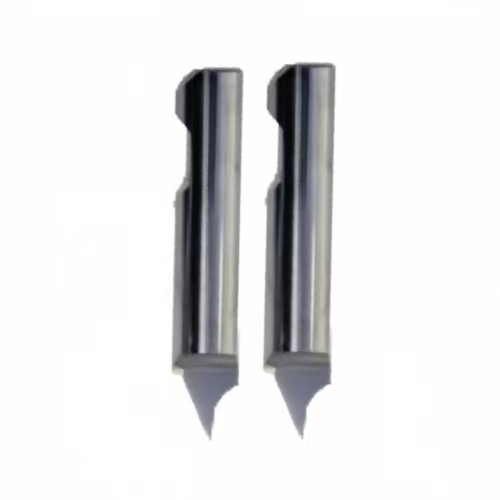

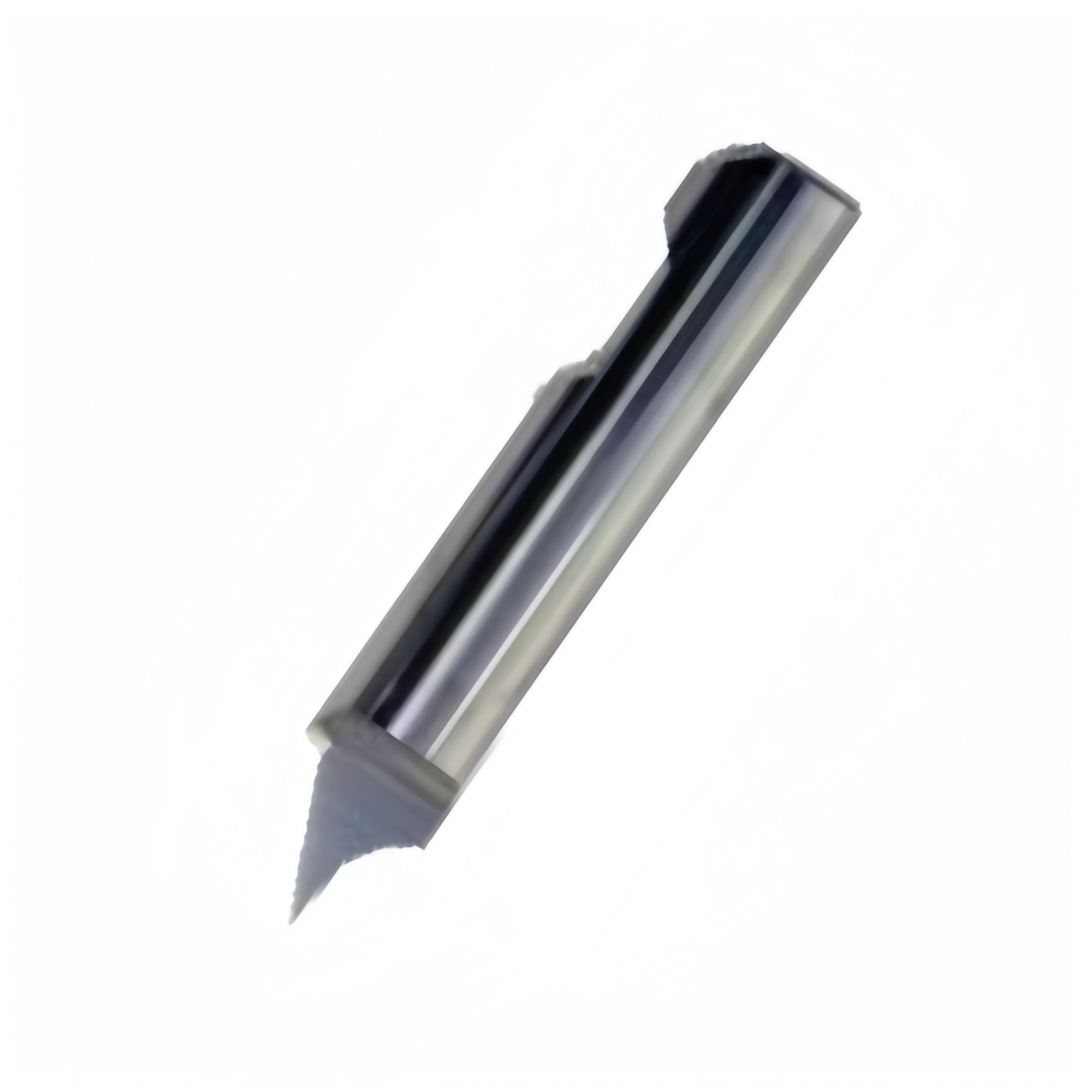

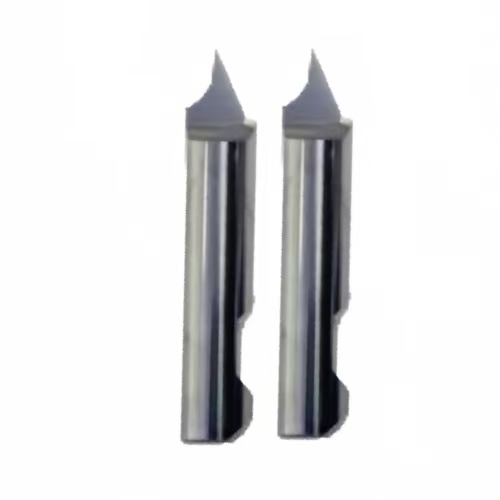

ARISTO 7275(The official material code is usually written as 000007275 or 0000 07275 ) It is a short blade/shallow-deep round shank vibrating blade commonly used in digital flatbed cutting machines
Request A Quote
Aristo 7275,000007275,0000 07275 Cutter Round Shank Shaft Knife Blade
Core Technical Specifications
This blade is made of high-density monolithic tungsten carbide (hard alloy), possessing excellent geometric bending strength:

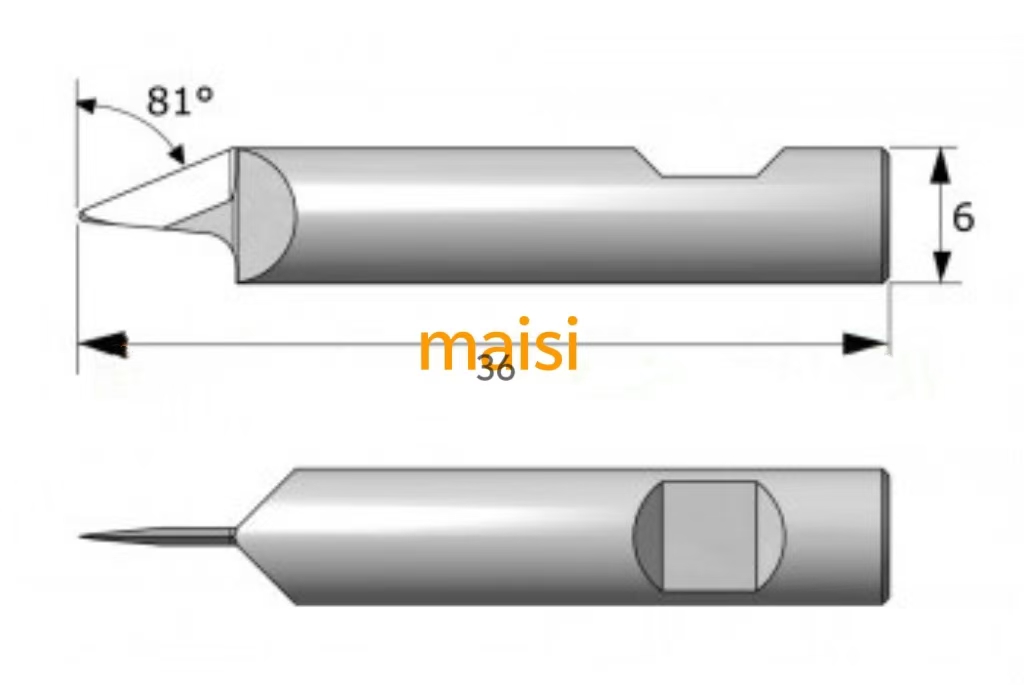

Shank Diameter : 6.0 mm (standard round shank)
Maximum Cutting Depth : 5.0 mm - 6.0 mm (typically a shallow-depth precision knife)
Overall blade length : 36.00 mm
Cutting Angle : 25° or 30°
Knife Type : Single Edge Round Point Oscillating Blade
Core processing materials
Because its cutting depth is limited to about 5mm and its cutting resistance is low, it is perfectly suited for high-speed vibration cutting of medium-hardness, thin non-metallic materials .
Gaskets : rubber gaskets, graphite gaskets, asbestos and composite sealing materials.
Printing and Packaging : Thick cardboard, solid folding cardboard boxes, and thinner corrugated cardboard.
Advertising images and text : Thin KT board, thin pearl cotton, various foamed plastic boards.
Equivalent to: Aristo 7275, Aristo 000007275, Aristo 0000 07275, Aristo 0000 07180, Aristo 000007180, Aristo 7180, MultiCam K2 84-00193-BT-57275, AXYZ B1041L-6
Comparison with ARISTO 7265
Model 7265 : Cutting depth 15mm , suitable for cutting thick honeycomb cardboard and thick foam. The disadvantage is that the blade is long, and it is prone to lateral deformation or chipping when cutting hard pads.
Model 7275 : 5mm cutting depth , extremely short blade, resulting in exceptional rigidity . When cutting hard and tough materials such as high-density rubber and automotive gaskets, its lifespan and processing precision far exceed those of the 7265.
This blade is made of high-density monolithic tungsten carbide (hard alloy), possessing excellent geometric bending strength:
Shank Diameter : 6.0 mm (standard round shank)
Maximum Cutting Depth : 5.0 mm - 6.0 mm (typically a shallow-depth precision knife)
Overall blade length : 36.00 mm
Cutting Angle : 25° or 30°
Knife Type : Single Edge Round Point Oscillating Blade
Core processing materials
Because its cutting depth is limited to about 5mm and its cutting resistance is low, it is perfectly suited for high-speed vibration cutting of medium-hardness, thin non-metallic materials .
Gaskets : rubber gaskets, graphite gaskets, asbestos and composite sealing materials.
Printing and Packaging : Thick cardboard, solid folding cardboard boxes, and thinner corrugated cardboard.
Advertising images and text : Thin KT board, thin pearl cotton, various foamed plastic boards.
Equivalent to: Aristo 7275, Aristo 000007275, Aristo 0000 07275, Aristo 0000 07180, Aristo 000007180, Aristo 7180, MultiCam K2 84-00193-BT-57275, AXYZ B1041L-6
Comparison with ARISTO 7265
Model 7265 : Cutting depth 15mm , suitable for cutting thick honeycomb cardboard and thick foam. The disadvantage is that the blade is long, and it is prone to lateral deformation or chipping when cutting hard pads.
Model 7275 : 5mm cutting depth , extremely short blade, resulting in exceptional rigidity . When cutting hard and tough materials such as high-density rubber and automotive gaskets, its lifespan and processing precision far exceed those of the 7265.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
