Atom 01030793 Flashcut 5°-15° HV1600 Oscillating Knife Blade For Atom Cutting Systems

Atom 01030793Vibrating cutter blades are high-performance carbide (tungsten carbide) industrial blades designed specifically for the Atom Flashcut series of CNC digital knife cutting systems

Request A Quote

Description
Related Products

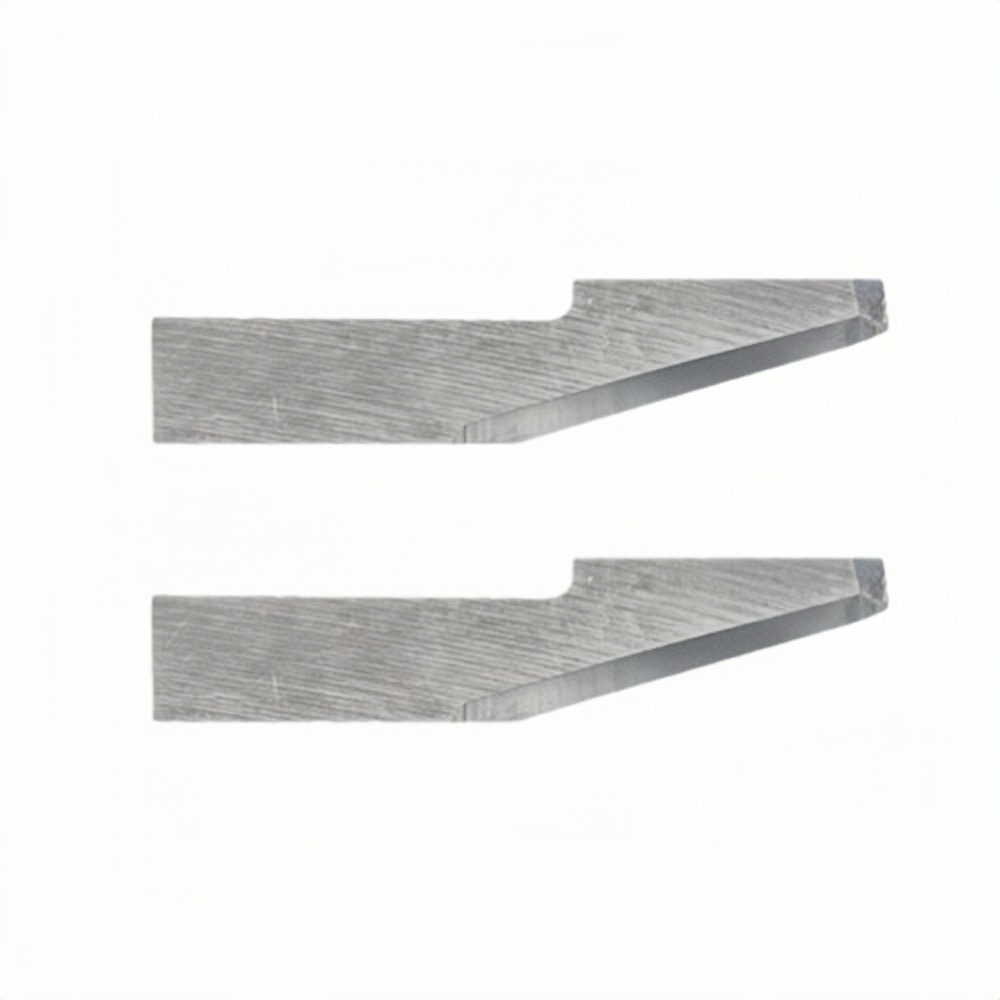

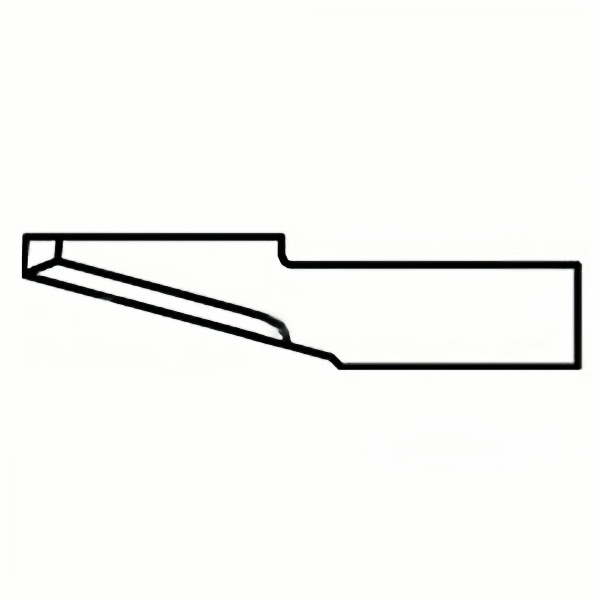

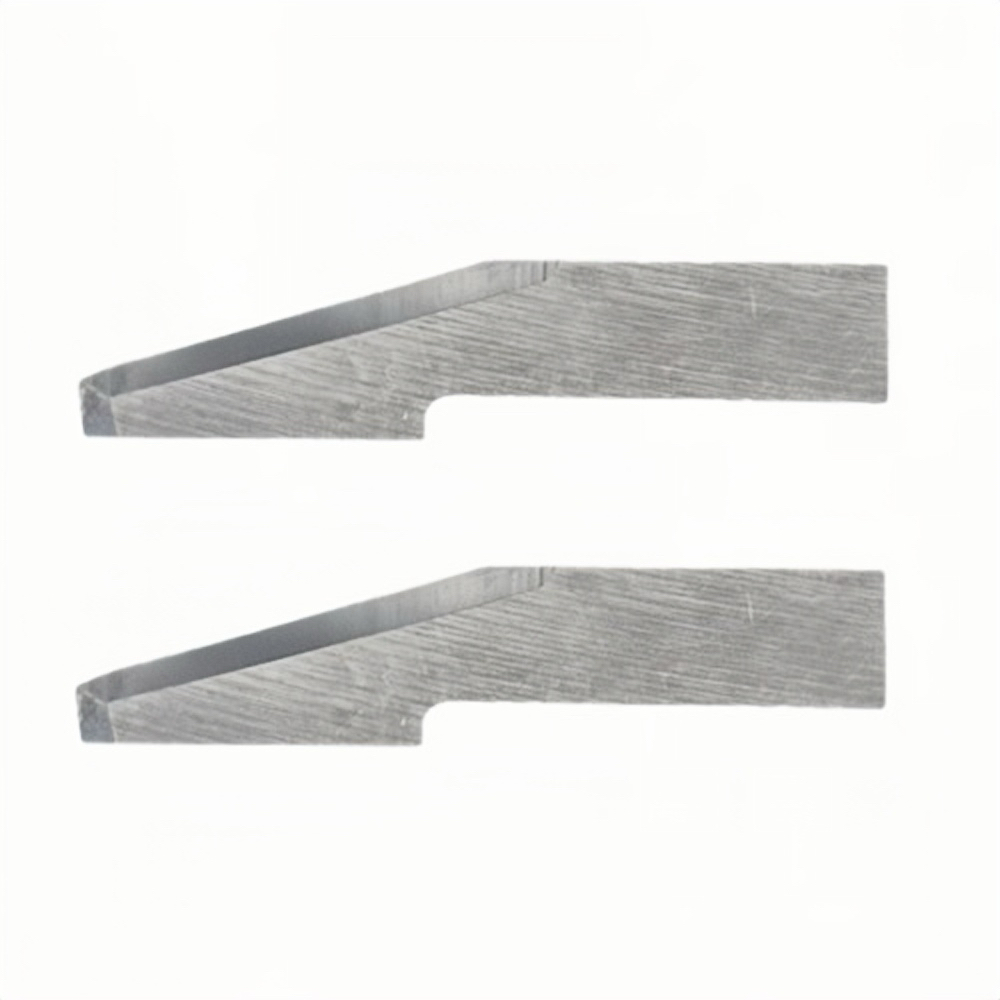

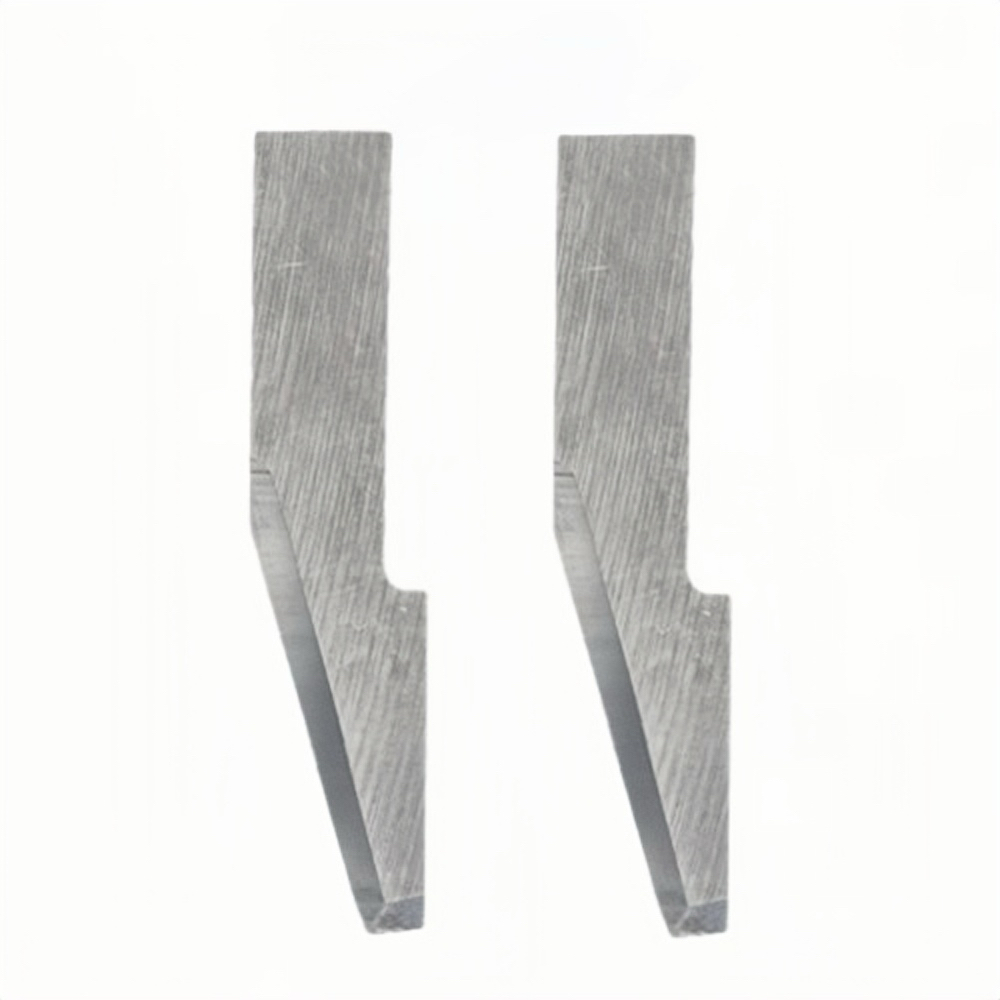

Atom 01030793 Carbide Oscillating Knife Blades

Core Technical Specifications
Product Model :Atom 01030793
Insert Series : HV1600 Enhanced Cutting Series (Designed for handling high loads from high-frequency electric or pneumatic vibration cutter heads)
Cutting angle : 5° - 15° Double-sided cutting edge (provides extremely high penetration and sharpness)
Material and process : High-quality cemented carbide (Tungsten Carbide / HM), with extremely high hardness and wear resistance.
Slot specifications : Standard 0.63mm thick tool holder support.

Applicable processing materials
This model, with its sharp cutting edge of 5°-15° and HV1600 impact-resistant rigidity, is ideal for cutting medium to high hardness, multi-layered, or flexible industrial materials.
Sealing gaskets : asbestos-free board, graphite composite board, rubber gaskets.
Footwear and leather : high-density sole materials, medium-thickness natural leather, and synthetic leather.
Composite materials : industrial soft or semi-rigid composite materials such as multilayer glass fiber and carbon fiber prepreg.

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
