Atom 01043086 Flashcut Oscillating Knife Blade-Replacement Compatible Spare Parts

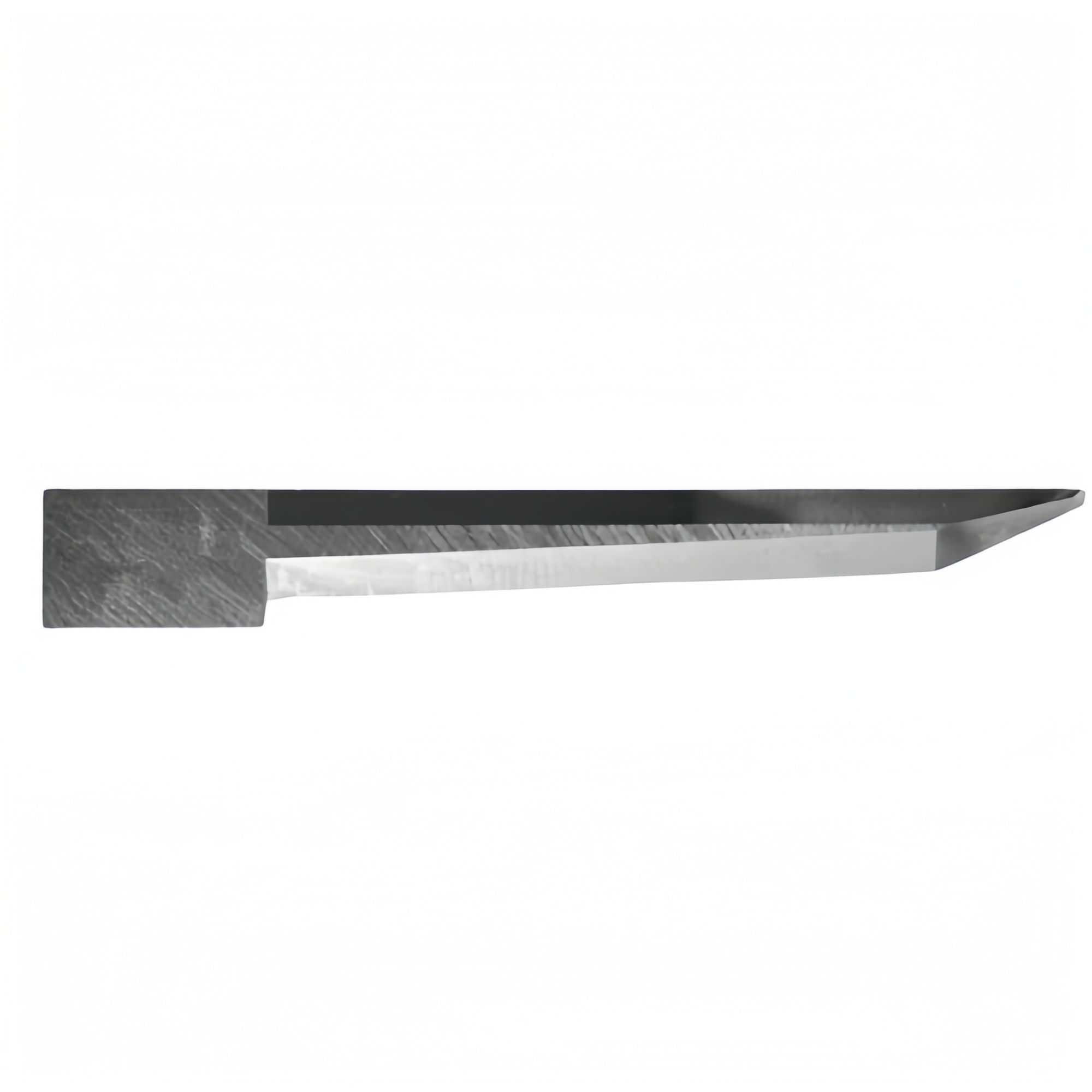

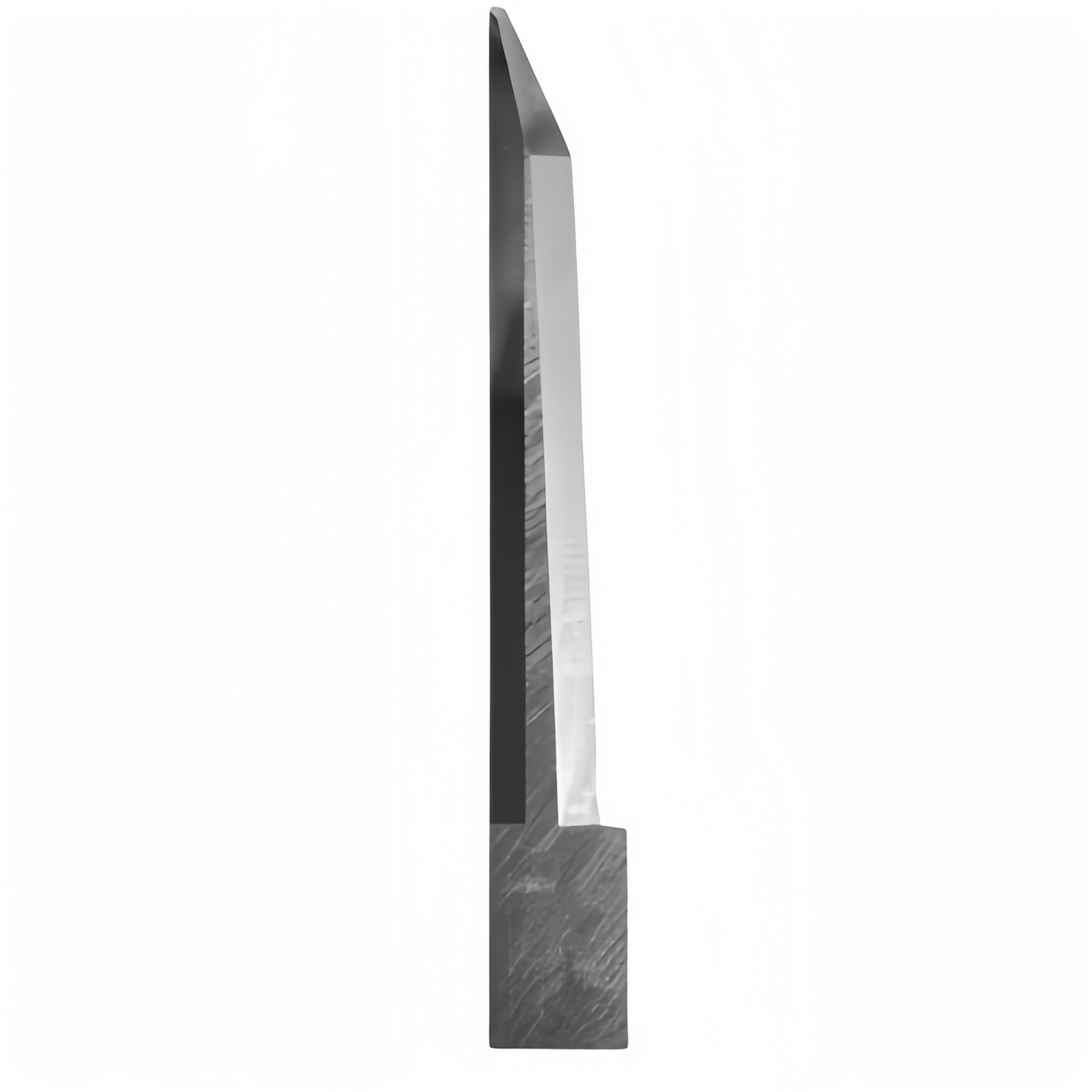

Atom 01043086 is a heavy-duty, high-performance tungsten carbide oscillating knife blade designed specifically for ATOM FlashCut automatic digital cutting systems
Request A Quote
Atom 01043086 Flashcut Oscillating Knife Blade-Replacement Compatible Spare Parts
Technical Specifications
Part Number: 01043086
Blade Geometry: Features a 3°-25°-10° triple angle profile (also designated with a 65°/87° cutting angle structure with back sharpening).
Tooling Series: HV1600 series, which standardizes on a flat, robust 1.0 mm thick mounting shank to withstand high-frequency pneumatic or electric oscillating tool heads.
Maximum Cutting Depth: 30 mm to 35 mm.

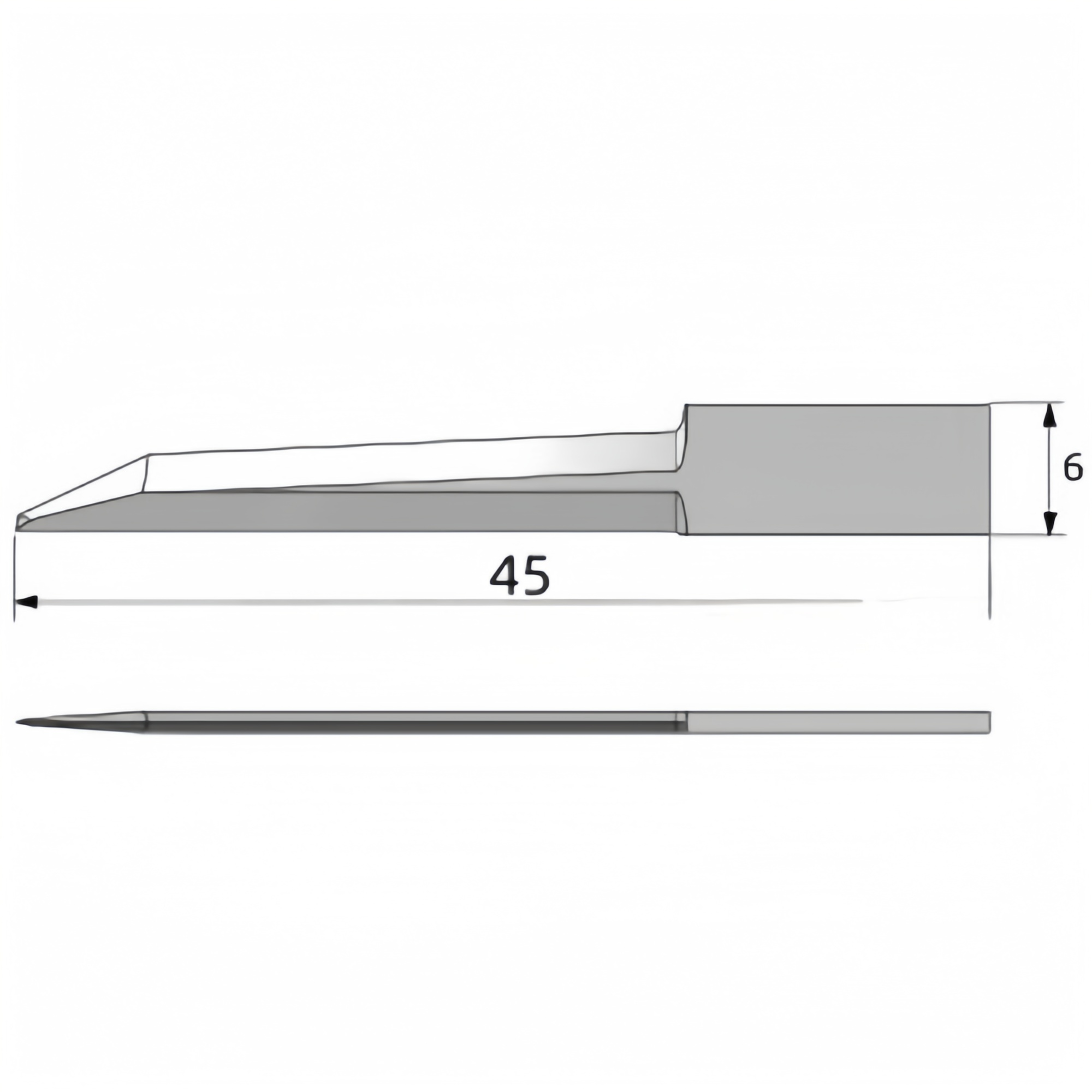

Total Blade Length: 45.00 mm.
Blade Width: 6.00 mm.
Primary Applications
This blade profile is engineered to execute clean, intricate nested cuts through tough, thick, or flexible materials without tearing. It is widely deployed across the footwear, automotive upholstery, packaging, and industrial gasket sectors to process:
Synthetic Foams & Foam Boards
Industrial Rubber & High Shore Rubbers
Packaging and Gasket Materials
Synthetic Composites & Multi-ply Fabrics
Part Number: 01043086
Blade Geometry: Features a 3°-25°-10° triple angle profile (also designated with a 65°/87° cutting angle structure with back sharpening).
Tooling Series: HV1600 series, which standardizes on a flat, robust 1.0 mm thick mounting shank to withstand high-frequency pneumatic or electric oscillating tool heads.
Maximum Cutting Depth: 30 mm to 35 mm.
Total Blade Length: 45.00 mm.
Blade Width: 6.00 mm.
Primary Applications
This blade profile is engineered to execute clean, intricate nested cuts through tough, thick, or flexible materials without tearing. It is widely deployed across the footwear, automotive upholstery, packaging, and industrial gasket sectors to process:
Synthetic Foams & Foam Boards
Industrial Rubber & High Shore Rubbers
Packaging and Gasket Materials
Synthetic Composites & Multi-ply Fabrics
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
