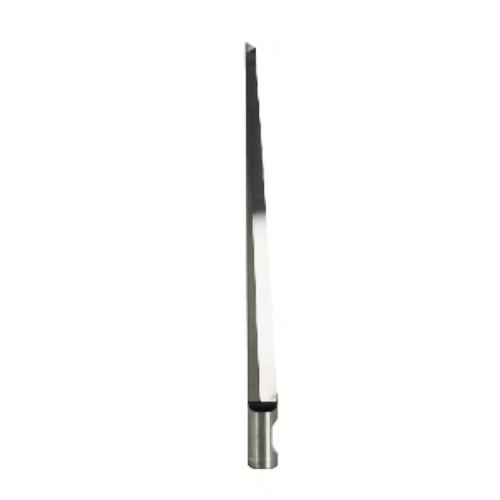

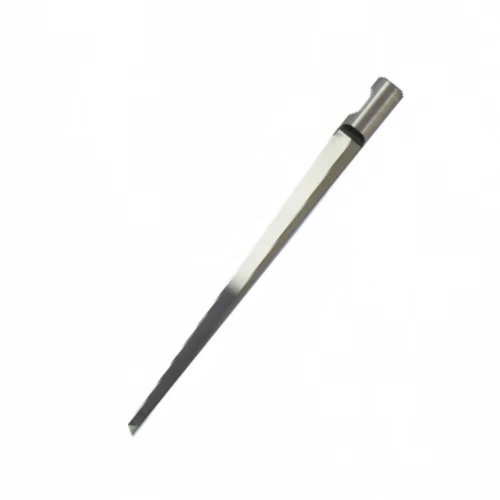

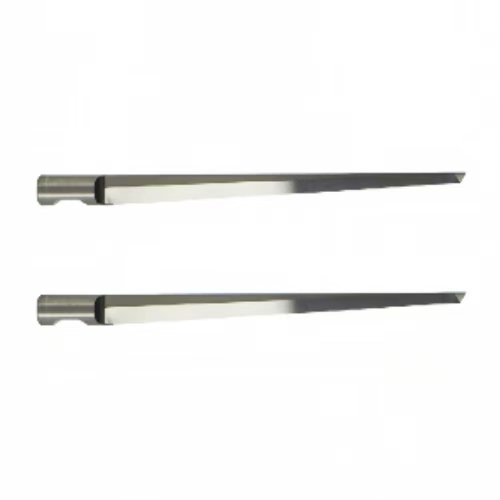

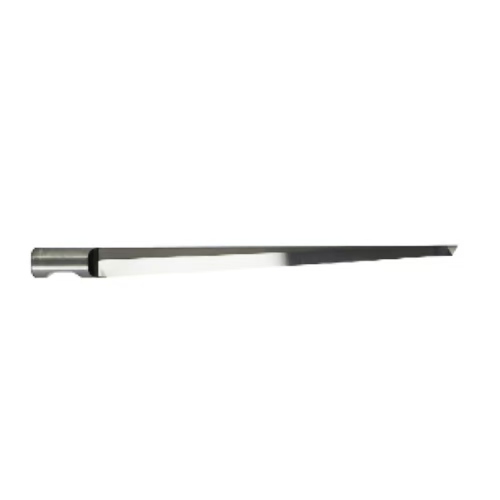

Axyz BT-572070 B1031l-70 Single Edge Flat Point Knife Blades
.jpg)
The Axyz BT-572070 (also categorized as B1031L-70) is a specialized single-edge, flat-point knife blade engineered for high-performance cutting on Axyz CNC routers and cutting systems. It is primarily designed for use with the Oscillating Knife Tool (OTK) and the Tangential Knife Tool
Request A Quote
Axyz BT-572070 B1031l-70 Single Edge Flat Point Knife Blades
Diameter of the holder: 6 mm
Knife hight: 83 mm
Max. cutting depth: 70 mm
Knife type: Oscillating
Angle: 86,6°
equivalent to: MultiCam 84-00193-BT-572070AXYZ B1031l-70
Key Applications
Due to its 70mm cutting capacity and flat-point geometry, this blade is ideal for:
Heavy-Duty Foam: Packaging foam, expanded polystyrene (EPS), and closed-cell foams.
Corrugated Materials: Thick triple-wall corrugated cardboard and honeycomb boards (like Re-board).
Thick Gaskets: Heavy rubber and industrial sealing materials.
Insulation: High-density mineral wool or fiberglass boards.
Performance Advantage
The Flat Point geometry is specifically chosen for applications where you need to cut all the way through a thick material without the "overcut" often associated with pointed (spear-tip) blades. It provides a more vertical finish at the bottom of the cut, which is critical for interlocking packaging parts or structural foam inserts.
Compatibility Note
While this is a native Axyz blade, its 6mm shank and tungsten carbide construction make it physically compatible with several other systems (as discussed previously) if the machine software can handle the 70mm depth and the tool holder is rated for the specific oscillation frequency.
Knife hight: 83 mm
Max. cutting depth: 70 mm
Knife type: Oscillating
Angle: 86,6°
equivalent to: MultiCam 84-00193-BT-572070AXYZ B1031l-70
Key Applications
Due to its 70mm cutting capacity and flat-point geometry, this blade is ideal for:
Heavy-Duty Foam: Packaging foam, expanded polystyrene (EPS), and closed-cell foams.
Corrugated Materials: Thick triple-wall corrugated cardboard and honeycomb boards (like Re-board).
Thick Gaskets: Heavy rubber and industrial sealing materials.
Insulation: High-density mineral wool or fiberglass boards.
Performance Advantage
The Flat Point geometry is specifically chosen for applications where you need to cut all the way through a thick material without the "overcut" often associated with pointed (spear-tip) blades. It provides a more vertical finish at the bottom of the cut, which is critical for interlocking packaging parts or structural foam inserts.
Compatibility Note
While this is a native Axyz blade, its 6mm shank and tungsten carbide construction make it physically compatible with several other systems (as discussed previously) if the machine software can handle the 70mm depth and the tool holder is rated for the specific oscillation frequency.
