Esko Kongsberg 6mm Special Purpose Milling & Router Bits Replacement Compatible
Esko Kongsberg 6mm Special Purpose Milling & Router Bits are a distinct category of tools separated from standard up-cut and down-cut routing bits. Instead of simple raw material cutout, these bits execute highly geometric or finish-specific tasks like engraving, edge chamfering, braille insertion, …
Request A Quote
Esko Kongsberg 6mm Special Purpose Milling & Router Bits Replacement Compatible

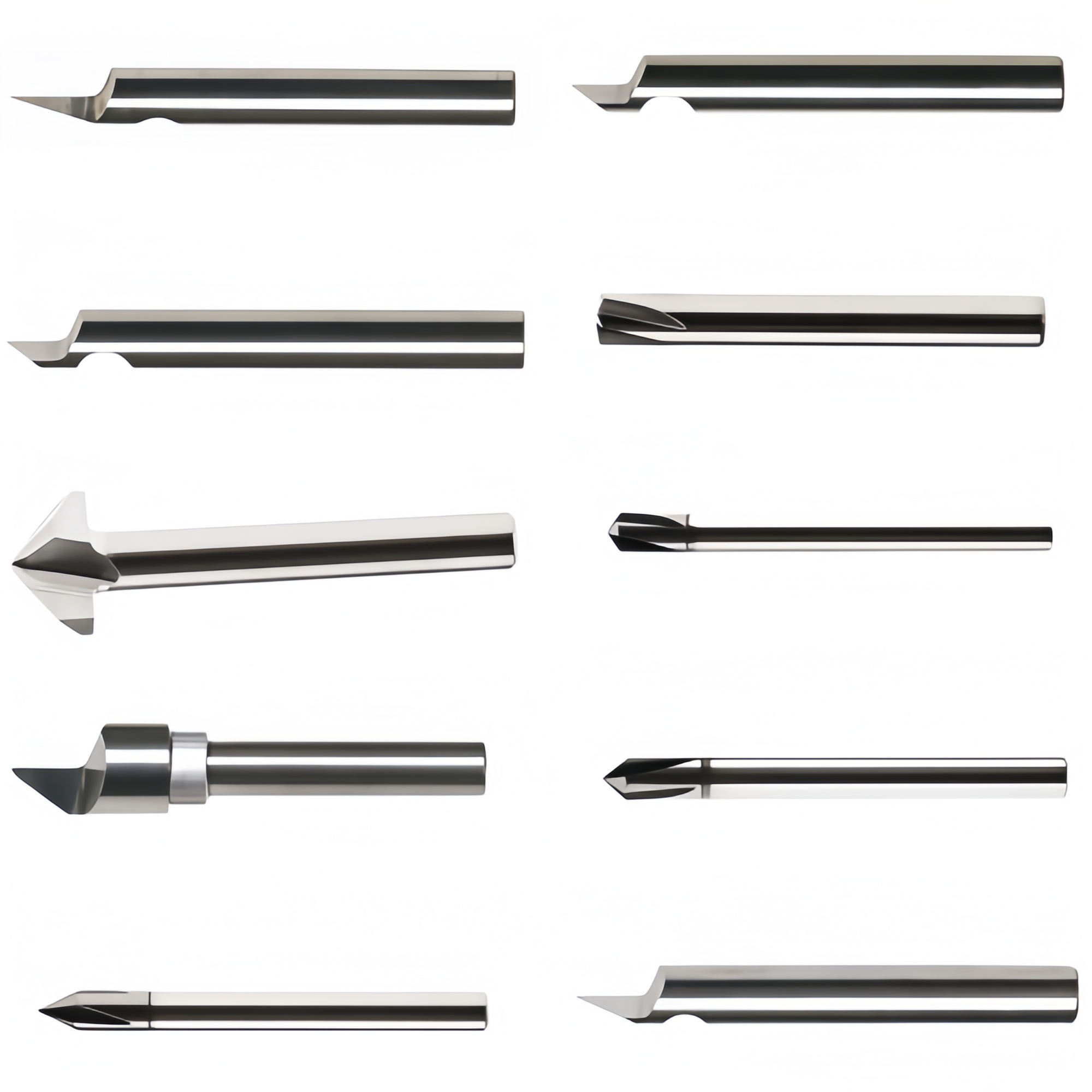

Kongsberg Precision Cutting Systems CNC milling, engraving, and routing bits. They are universally designed with a standard 6 mm shank diameter to fit Kongsberg multi-purpose high-frequency router heads. The technical specifications, angles, and dimensions for each part code are categorized by application below:

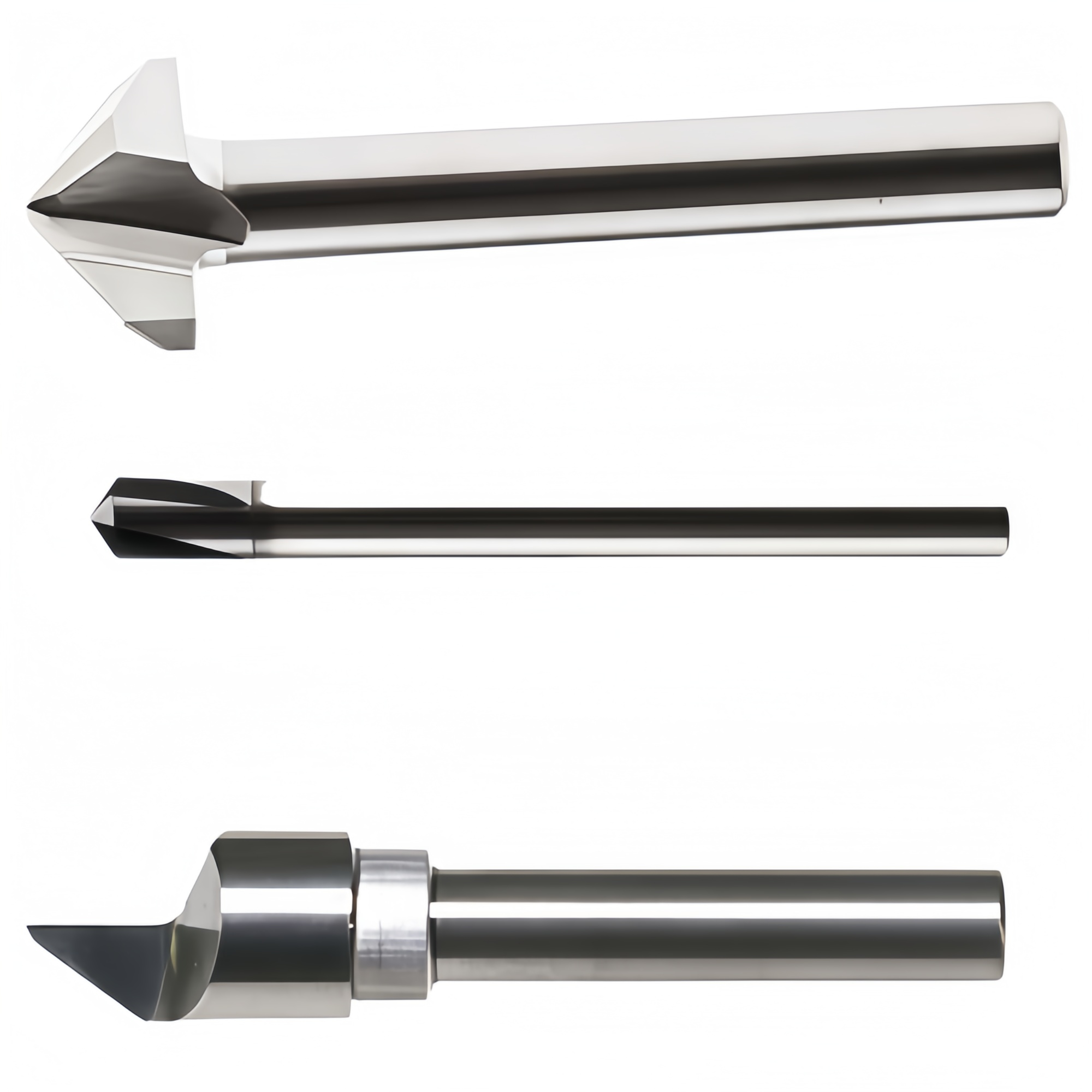

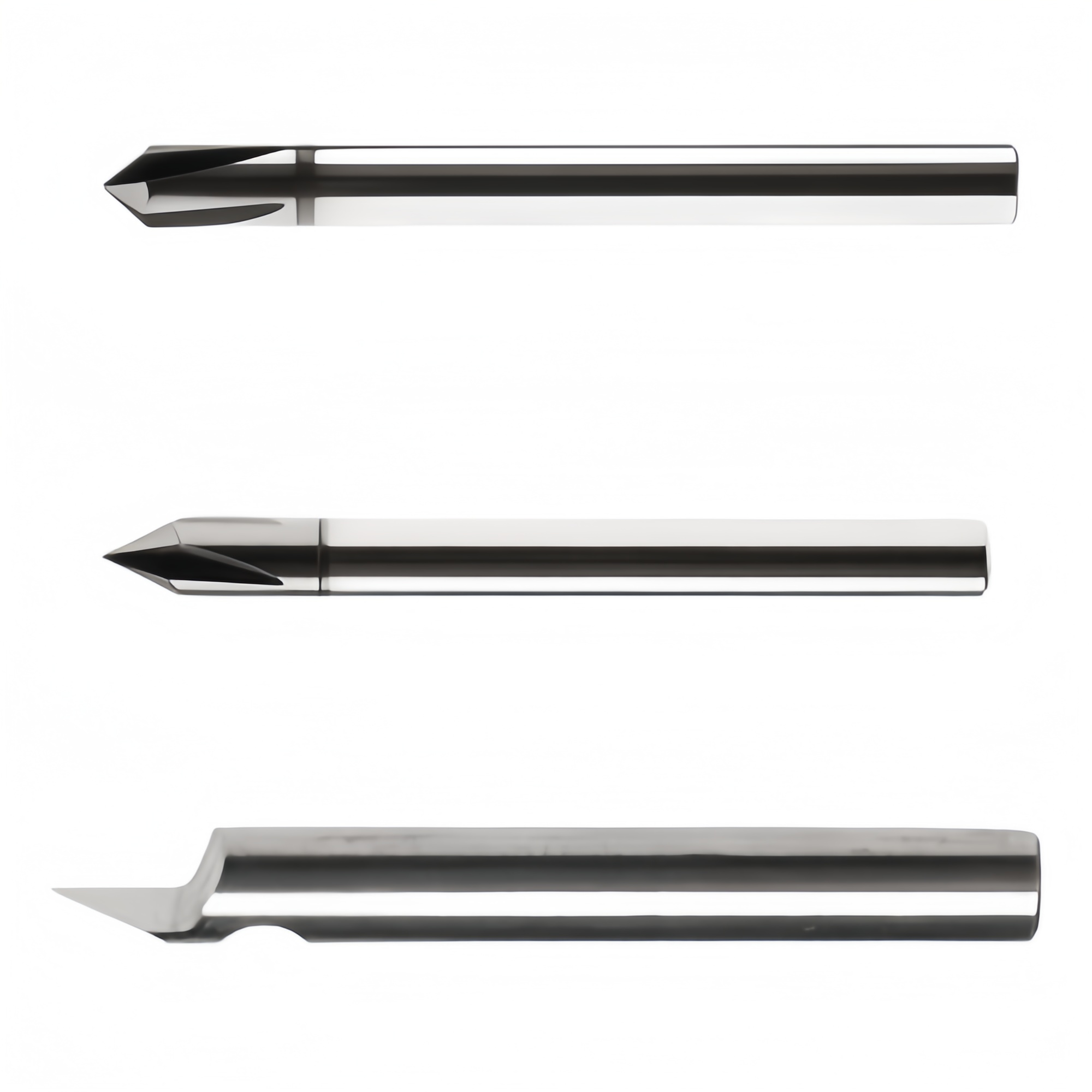

Engraving & V-Notch Folding Bits (BIT-EBV)
Kongsberg Precision Cutting Systems CNC milling, engraving, and routing bits. They are universally designed with a standard 6 mm shank diameter to fit Kongsberg multi-purpose high-frequency router heads. The technical specifications, angles, and dimensions for each part code are categorized by application below:
Engraving & V-Notch Folding Bits (BIT-EBV)
These solid tungsten carbide tools are engineered for high-speed beveling, flat-bottom text engraving, and precision V-grooving to facilitate folding in Aluminum Composite Materials (ACM like Dibond).

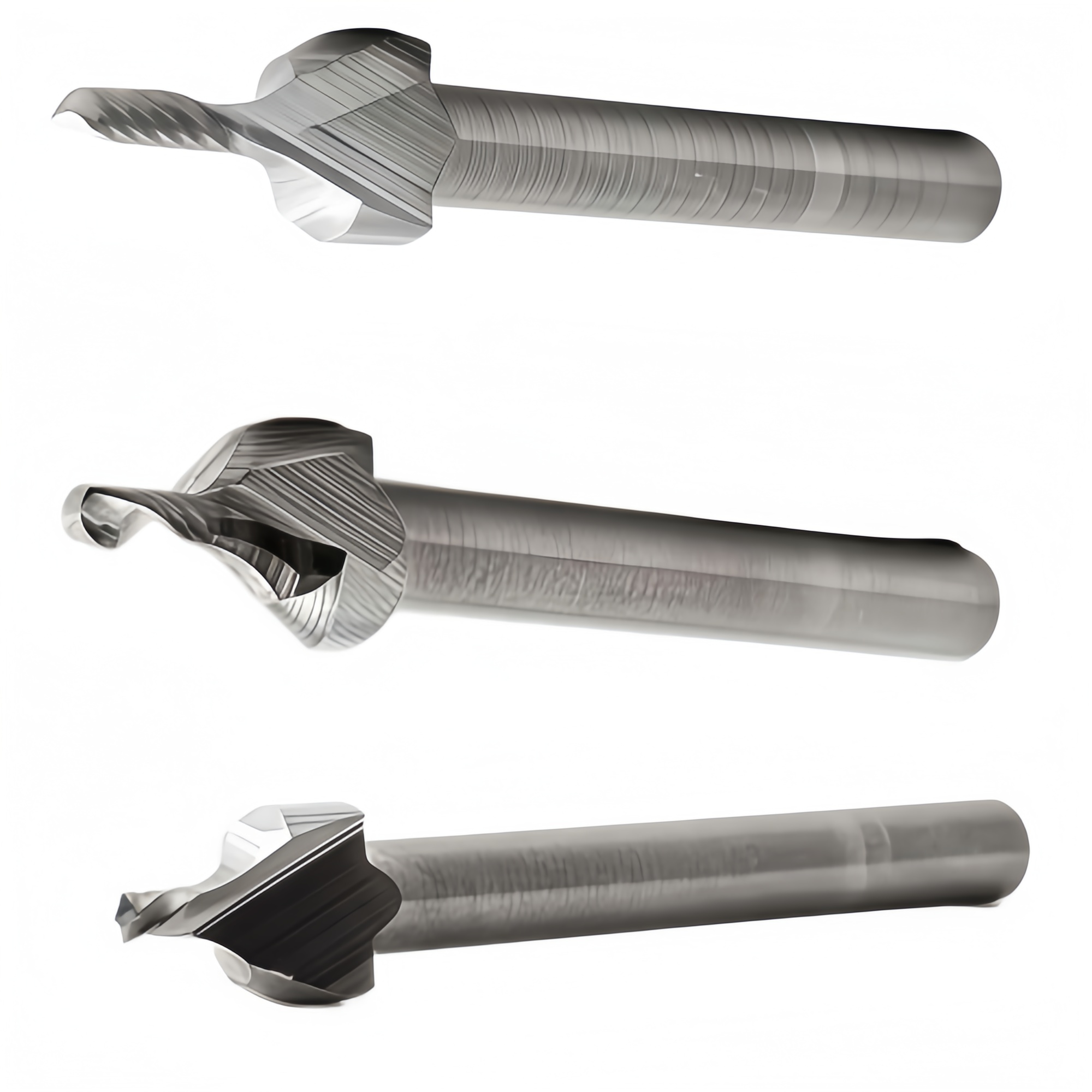

Radius & Bevel Profiling Bits (BIT-RBO)
These tools feature a rounded profile radius edge (Radius Ball-Overshot/Bevel) used to smooth out margins or mill custom curved edges on plastic, wood, and MDF panels.

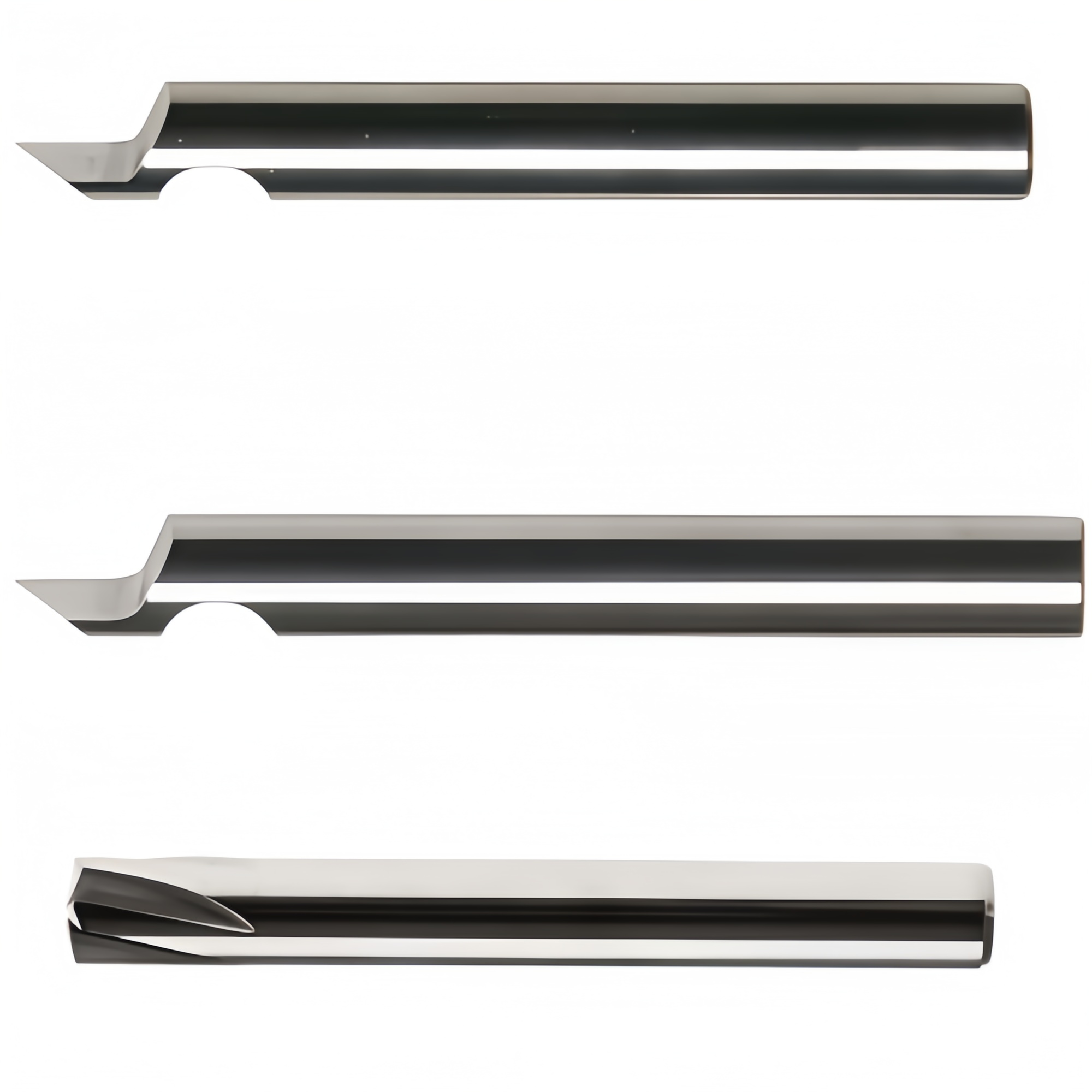

Specialty Braille, Polishing, & Composite Material Bits
Special purpose milling bits configured for physical modifications, clean tactile signage, and ultra-high polish edge finishes on thick plastics or acrylic sheets.
· Diamond Polish Tool 5,8/6-6-50 (G42452169): A specialty diamond-tipped polishing tool featuring a 6mm shank, a 5.8mm cutting tip, and a 50mm overall length designed to deliver crystal-clear, flame-free edges on machined acrylic panels.
· BIT-BRAILLE06-1403-50 (G42460238): An engraving bit designed for drilling precision holes for Braille spheres. It features a 6mm shank diameter, a 1.4mm tip diameter, and a 50mm length.
· BIT-BRAILLE06-1503-50 (G42455477): A variant Braille drilling bit featuring a 6mm shank diameter, a slightly wider 1.5mm tip diameter, and a 50mm overall length.
· BIT-MCS06-6022-64 (i-9152) (G42458786): A 6mm shank diameter Multi-purpose Carbide Slotting/Milling bit with a 22mm flute length and a 64mm overall length, built for rigid plastic panel sizing.
· BIT-MSD06-6022-64 (i-6432) (G42458794): A 6mm shank diameter Multi-purpose Down-cut Solid carbide bit featuring a 22mm flute length and a 64mm overall length, designed to push chips downward to prevent top-surface burring on delicate laminates.
Maisi Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
|
6mm shank, heavy-duty engraving/clearing |
Radius & Bevel Profiling Bits (BIT-RBO)
These tools feature a rounded profile radius edge (Radius Ball-Overshot/Bevel) used to smooth out margins or mill custom curved edges on plastic, wood, and MDF panels.
|
Part Number |
OEM Code |
Application / Sizing |
Profile Description |
|
0.4 mm Radius Bevel |
6mm shank, micro-radius contouring |
||
|
4.0 mm to 6.0 mm Bevel |
6mm shank, stepped edge rounding |
||
|
6.0 mm to 8.0 mm Bevel |
6mm shank, medium-edge rounding |
||
|
8.0 mm to 10.0 mm Bevel |
6mm shank, wide-edge rounding |
||
|
12.0 mm to 14.0 mm Bevel |
6mm shank, heavy radius profiling |
Specialty Braille, Polishing, & Composite Material Bits
Special purpose milling bits configured for physical modifications, clean tactile signage, and ultra-high polish edge finishes on thick plastics or acrylic sheets.
· Diamond Polish Tool 5,8/6-6-50 (G42452169): A specialty diamond-tipped polishing tool featuring a 6mm shank, a 5.8mm cutting tip, and a 50mm overall length designed to deliver crystal-clear, flame-free edges on machined acrylic panels.
· BIT-BRAILLE06-1403-50 (G42460238): An engraving bit designed for drilling precision holes for Braille spheres. It features a 6mm shank diameter, a 1.4mm tip diameter, and a 50mm length.
· BIT-BRAILLE06-1503-50 (G42455477): A variant Braille drilling bit featuring a 6mm shank diameter, a slightly wider 1.5mm tip diameter, and a 50mm overall length.
· BIT-MCS06-6022-64 (i-9152) (G42458786): A 6mm shank diameter Multi-purpose Carbide Slotting/Milling bit with a 22mm flute length and a 64mm overall length, built for rigid plastic panel sizing.
· BIT-MSD06-6022-64 (i-6432) (G42458794): A 6mm shank diameter Multi-purpose Down-cut Solid carbide bit featuring a 22mm flute length and a 64mm overall length, designed to push chips downward to prevent top-surface burring on delicate laminates.
Maisi Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
