Esko Kongsberg G42445957 ADS06 Downcut Acrylic Milling Bit - Maisi Blades Manufacturers and Suppliers

Esko Kongsberg ADs06-4012-50 Milling & Router Bits G42445957-Production Manufacturing Wholesale

Esko Kongsberg Ads06-4012-50 Milling & Router Bits G42445957 - Specialized in production, manufacturing, and wholesale supply. Key focus areas include quality, pricing, factory-direct sourcing, and distribution. Products originate from China.

Request A Quote

Description
Related Products

Esko Kongsberg ADs06-4012-50 Milling & Router Bits G42445957-Production Manufacturing Wholesale

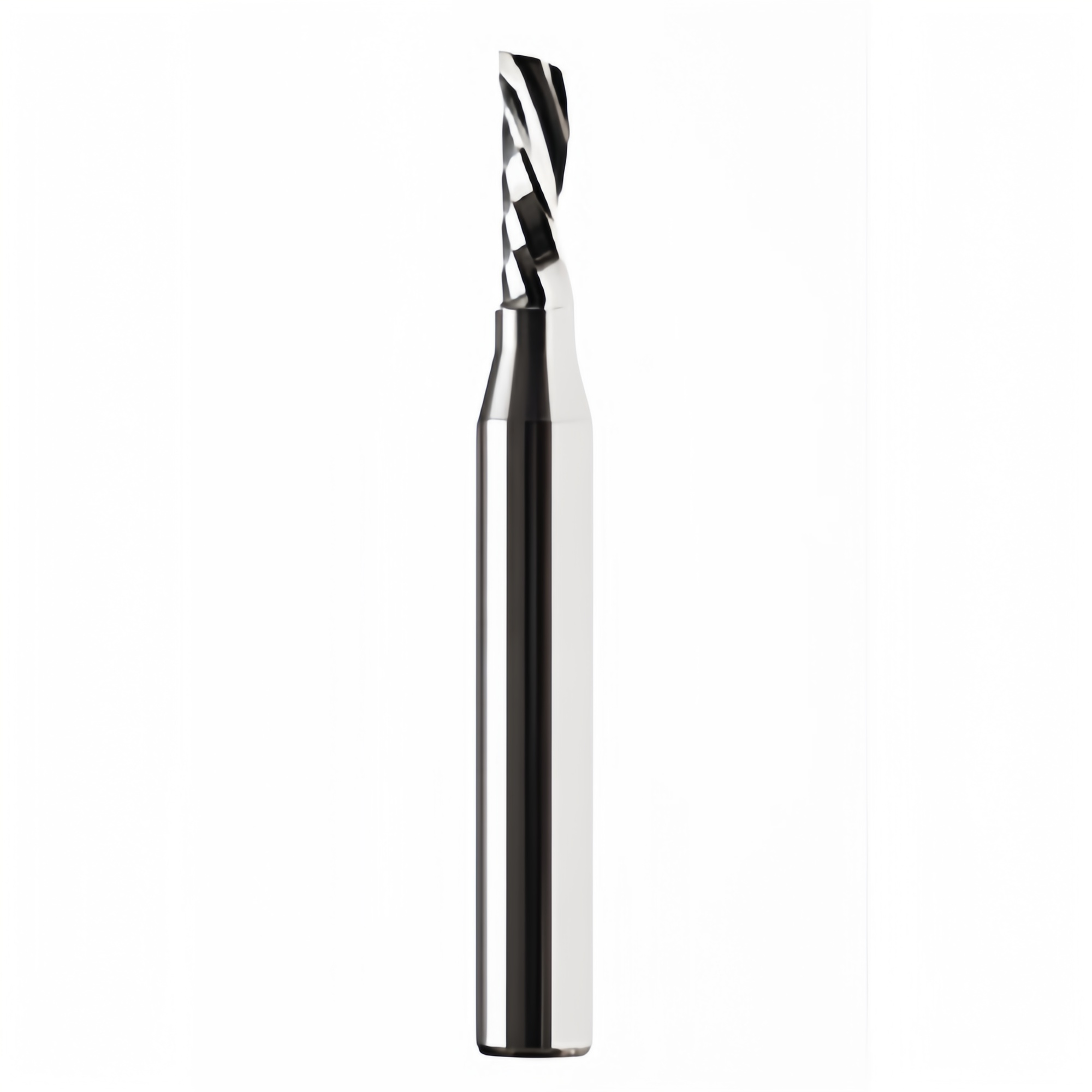

For acrylic (super sharp), down-cut, single flute bit.
D Shank diameter 6mm
d Tip diameter 4mm
L Total length 50mm
M Max milling cutting thickness 11mm

To use BIT-ADS06-4012-50 on your Kongsberg PCS table, you need one of the following configurations.
· HSMU / MultiCut (1kW) Ibag requires chuck 42444067
· MultiCUT (1kW) Kavo requires chuck 02721314
· HPMU (3kW) / MultiCUT HP (3kW) requires chuck 42454728

To use BIT-ADS06-4012-50 on your Multicam router you need a 6mm collet installed.

Material Sub Category Thickness Method
Acrylic panels, PMMA (Plexiglas, Perspex) Acrylic panels, PMMA (Plexiglas, Perspex) < 10mm Milling
Protective foam High density < 20mm Milling

Length (cm) 5
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.015

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
