Esko Kongsberg BIT-ACS06-6012-50 G42477778 Milling & Routing Bit for Kongsberg Cutting Systems

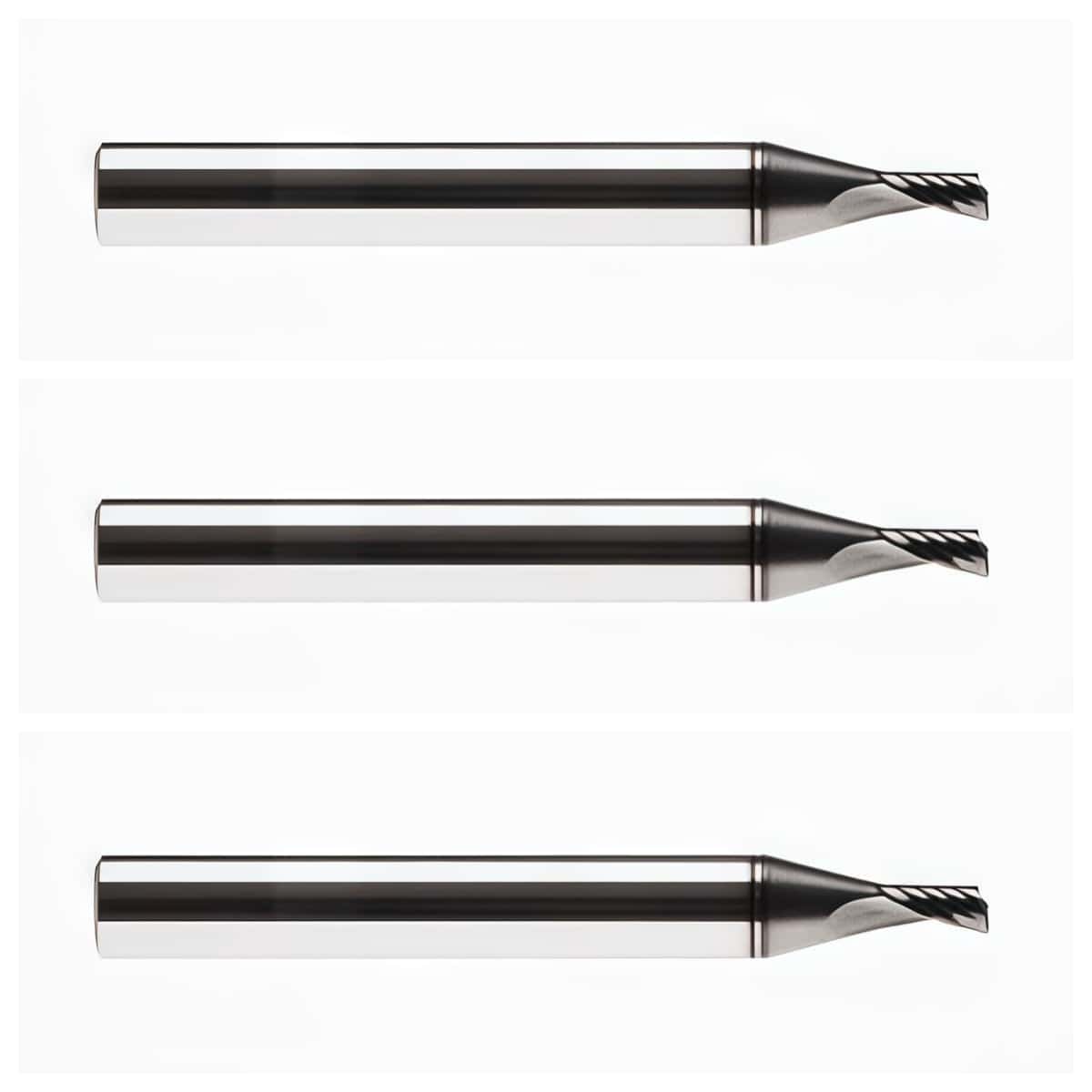

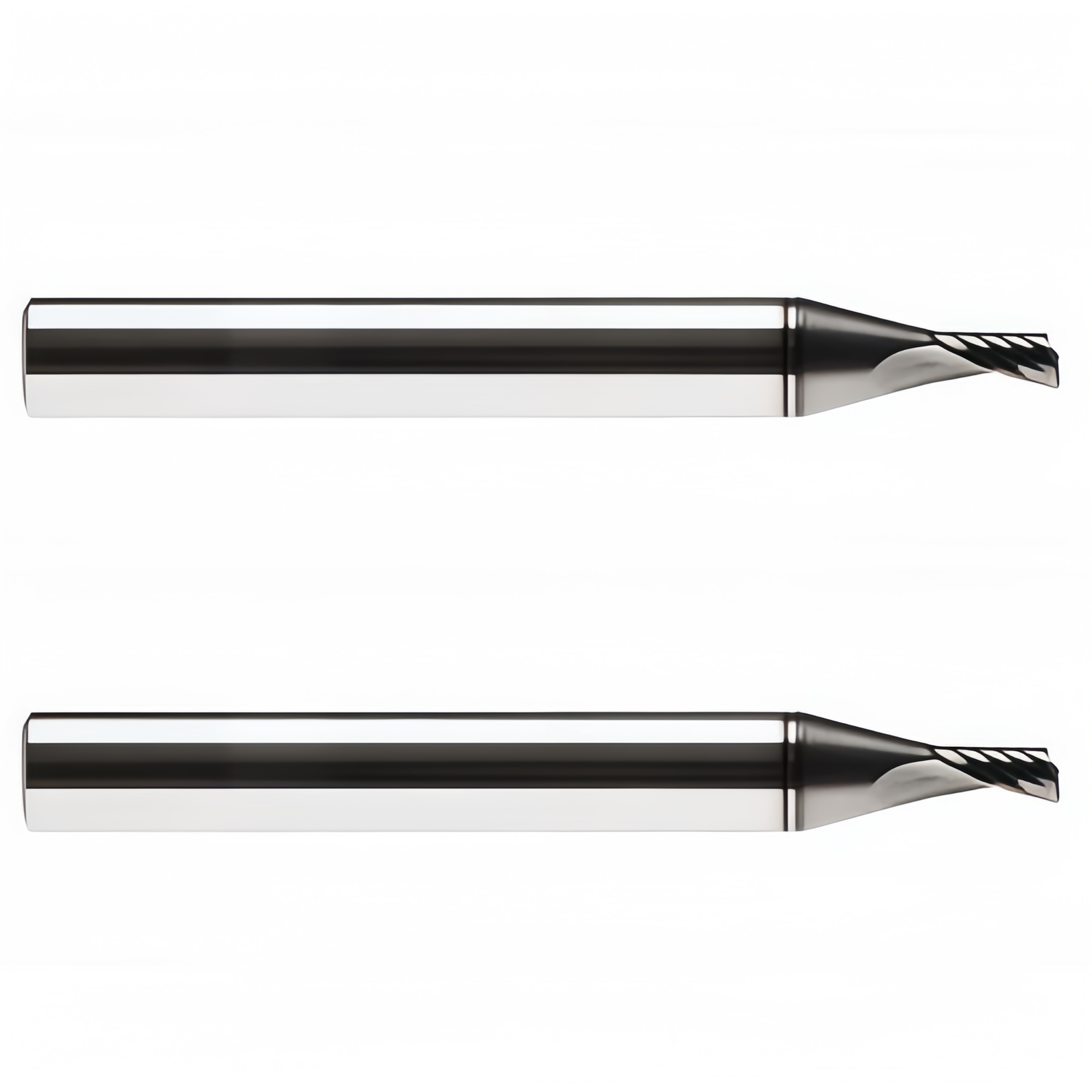

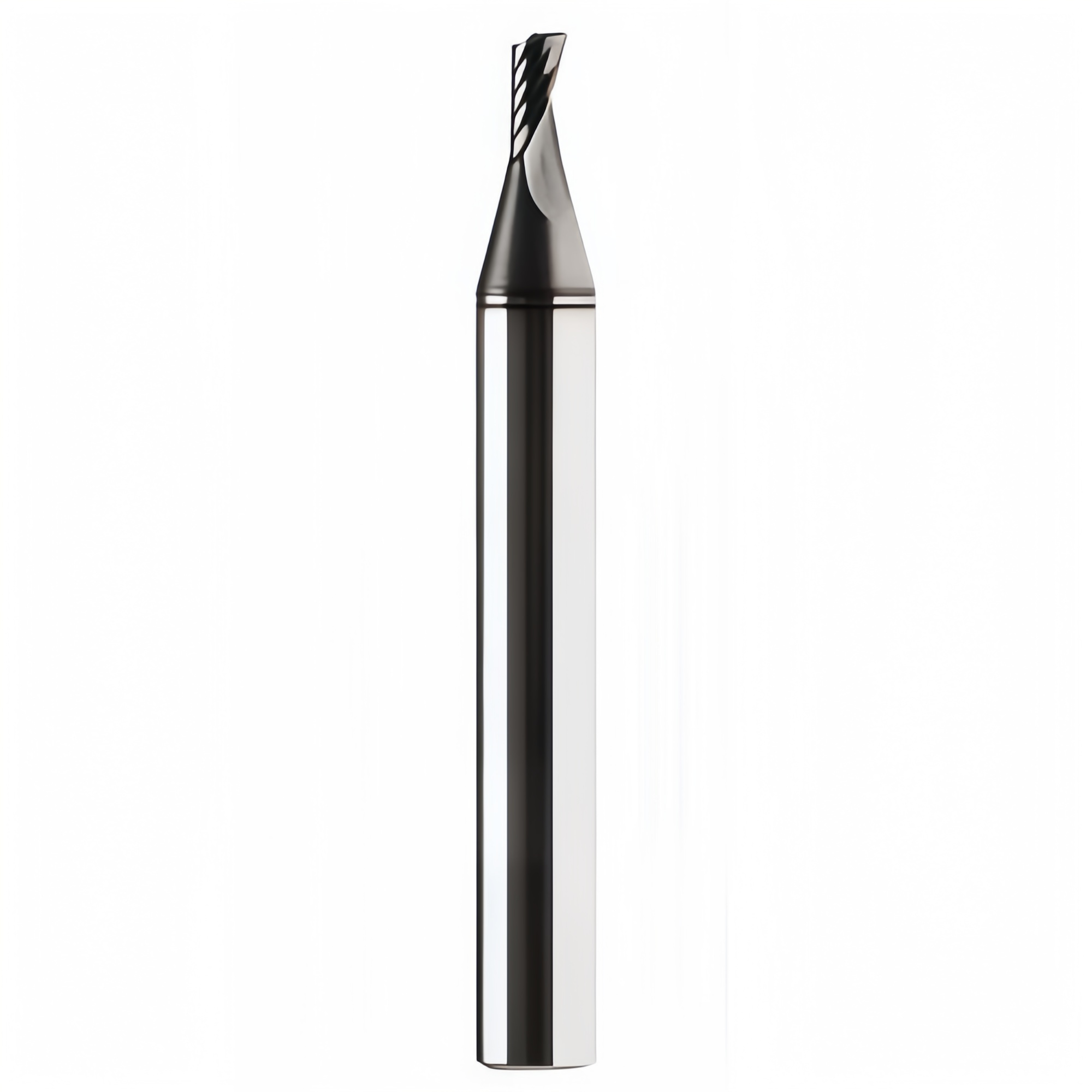

The Esko Kongsberg BIT-ACS06-6012-50 (Part No. G42477778) is a premium solid tungsten carbide single-flute upcut router bit designed for Esko Kongsberg digital cutting systems. It is specially developed for machining clear acrylic (PMMA), Plexiglas, Perspex, polycarbonate and other plastic materials with exceptional edge quality.

Key Specifications
Part Number: G42477778
Bit Model: BIT-ACS06-6012-50
Material: Solid Tungsten Carbide
Bit Type: Single Flute Upcut Router Bit
Shank Diameter: 6.0 mm
Cutting Diameter: 6.0 mm
Cutting Length: 12.0 mm
Overall Length: 50.0 mm
Maximum Milling Depth: 11 mm
Cut Direction: Right-Hand Spiral Upcut

Its single-flute upcut geometry provides excellent chip evacuation, minimizes heat buildup, and reduces material melting during high-speed routing. The specially ground cutting edge produces a smooth, polished finish directly from the machine, eliminating the need for secondary polishing in many applications.

Ideal for sign making, display fabrication, acrylic processing, and industrial CNC routing applications.

Recommended Materials
Clear Acrylic (PMMA)
Plexiglas
Perspex
Polycarbonate
Plastic Sheets
Soft Composite Materials
Features
Premium solid tungsten carbide construction
Single flute upcut spiral design
Excellent chip evacuation
Produces polished acrylic edges
Reduces heat buildup and material melting
High cutting precision and extended tool life
Compatible with Esko Kongsberg routing systems
