Esko Kongsberg Bit-Ads03-1003-38 G42449447 Carbide Milling Bit For Digital Cutters

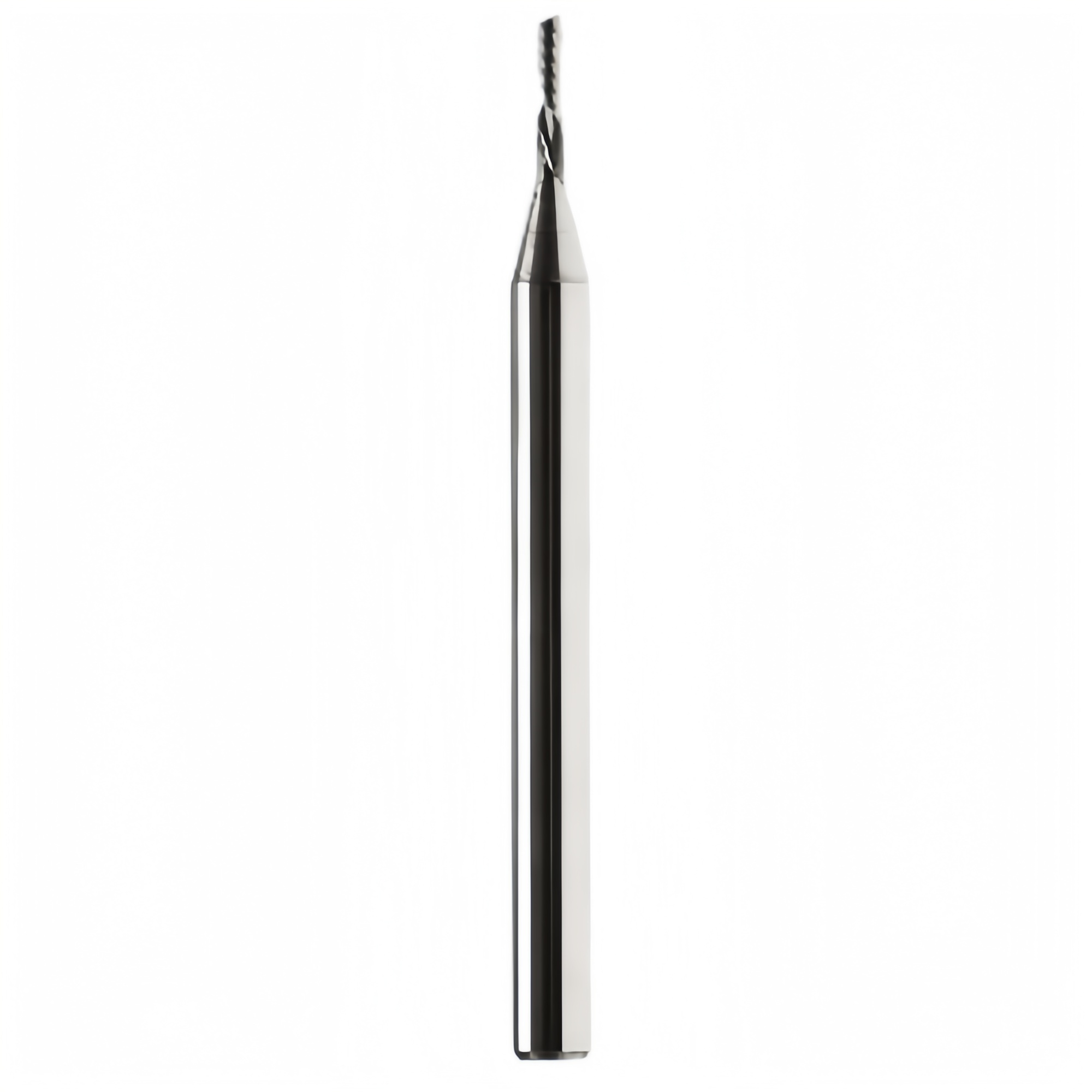

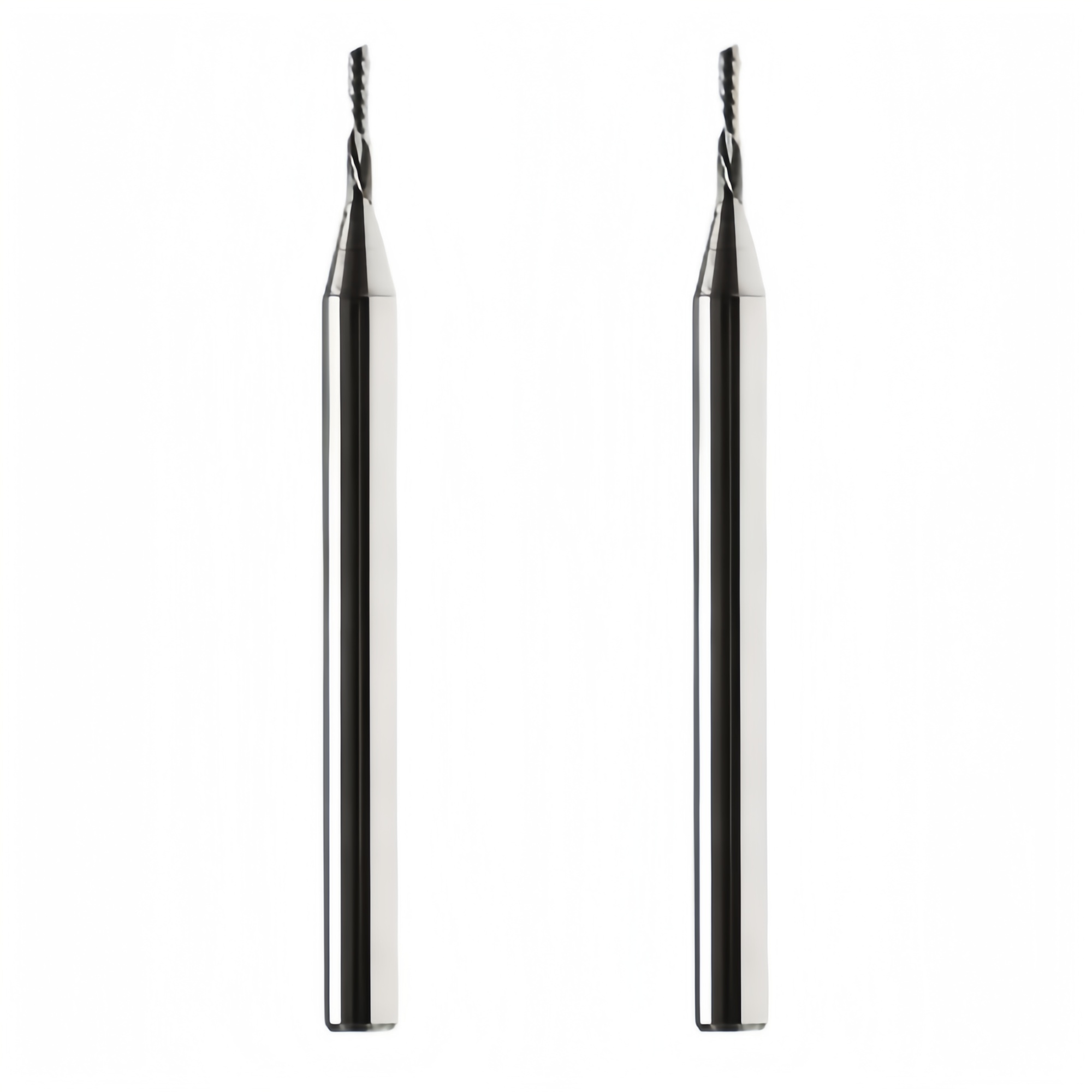

The Esko Kongsberg BIT-ADS03-1003-38 (Part No. G42449447) is a precision tungsten carbide milling bit designed specifically for acrylic and other plastic-based materials. This bit features a down-cut (downward-spiraling) design, which is ideal for thin materials as it pushes the substrate down toward the table, helping to prevent vibration or lifting during high-speed routing.

Technical Specifications
the bit has the following measurements:
Shank Diameter: 3.0 mm
Milling Diameter (Tip): 1.0 mm
Max Milling Thickness: 3 mm
Total Length: 38 mm
Flute Type: Single Flute (Z1), Down-cut

Applications & Compatibility
This bit is standard for Kongsberg X-Table, Kongsberg XL, and Multicam router systems. Its sharp cutting edge is optimized for:
Acrylic: Specifically engineered to provide a clean edge with minimal burrs.
Plastics: Suitable for polycarbonate, expanded PVC, and polypropylene.
Thin Rigid Materials: The down-cut action ensures parts remain flat against the cutting surface, crucial for small or delicate acrylic pieces.
