Esko Kongsberg BIT-ADS03-1006-38 G42449462 Tungsten Carbide Milling Router Bit

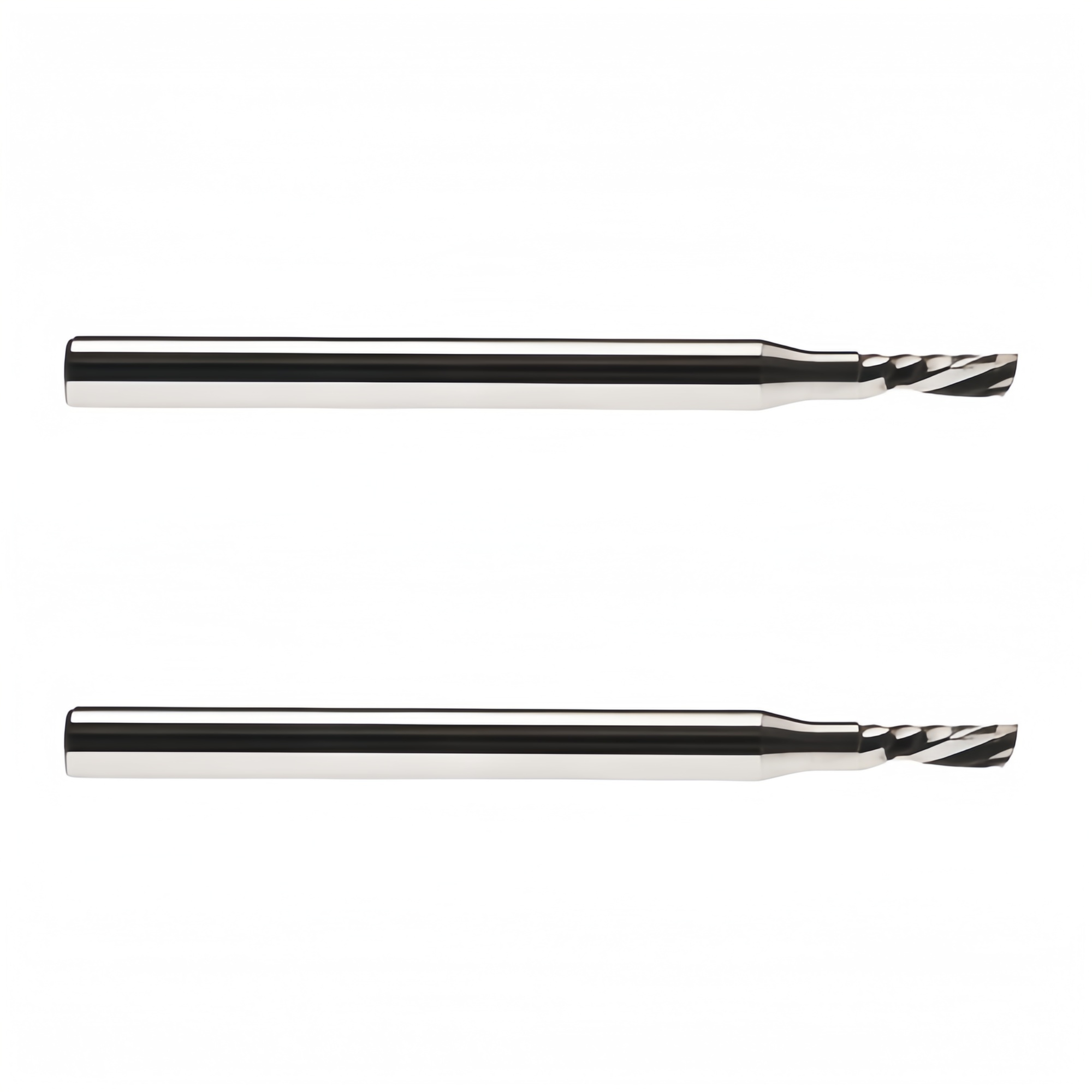

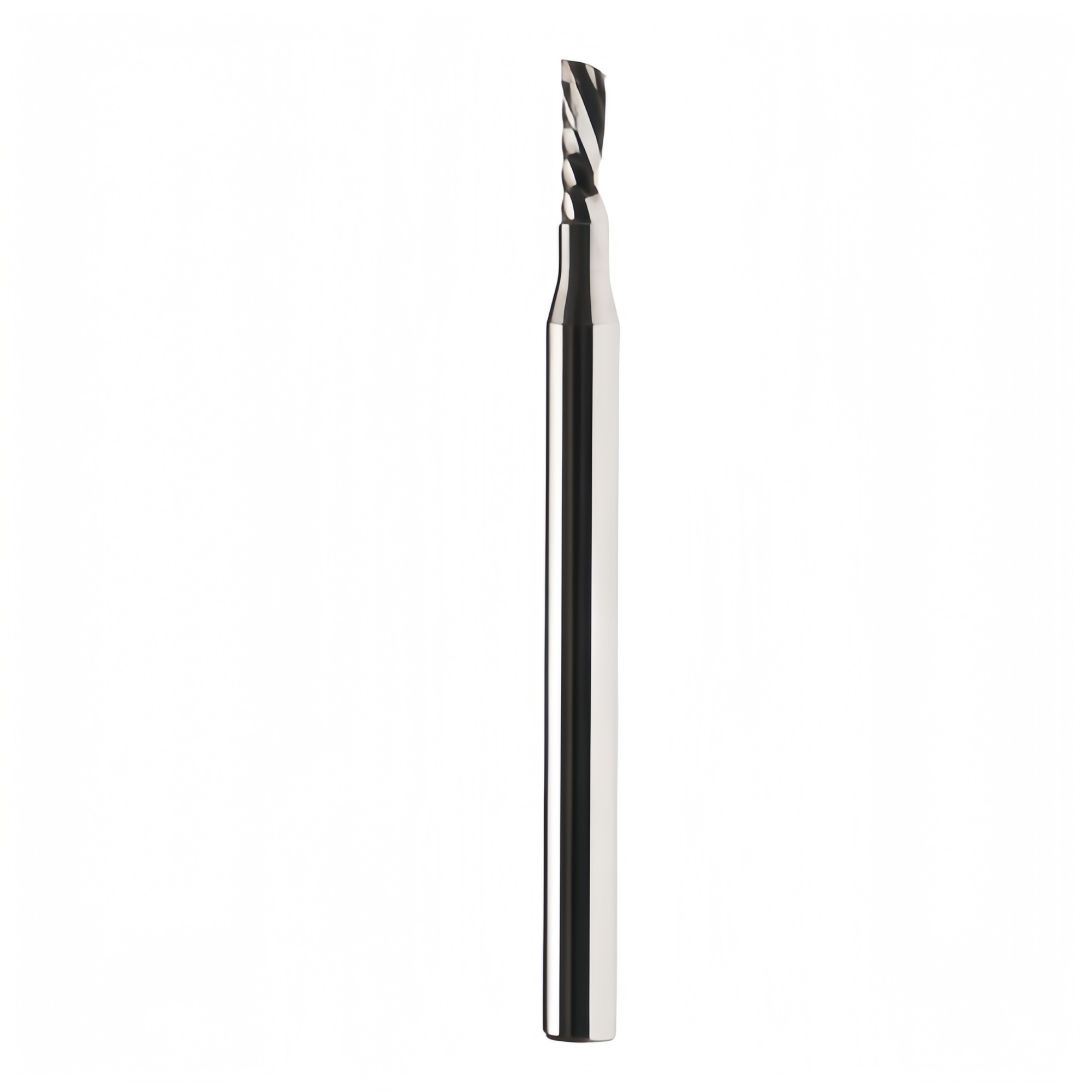

The Esko Kongsberg BIT-ADS03-1006-38 (Part No. G42449462) is a premium solid tungsten carbide single-flute downcut router bit designed for Esko Kongsberg digital cutting systems. It is specially engineered for machining acrylic (PMMA), plastics, wood, and other sheet materials that require exceptionally clean top-edge finishes.

Request A Quote

Description
Related Products

Esko Kongsberg BIT-ADS03-1006-38 G42449462 Tungsten Carbide Milling Router Bit

Technical Specifications
Understanding the cryptic alphanumeric product code reveals the tool's foundational metrics:
Bit-Ads: Denotes the specific engineering geometry group, typically optimized for rigid or multi-purpose substrate routing.
03: Indicates a 3.0 mm cutting diameter.
10: Specifies a 10 mm cutting edge length (maximum depth of cut per pass).
06: Represents a 6.0 mm shank diameter to fit standard Kongsberg collets.
38: Designates a total overall length (OAL) of 38 mm.
G42449462: The Esko unique manufacturer identifier code ensuring OEM compatibility.

Material & Engineering Advantages
Solid Tungsten Carbide Composition: Utilizing industrial-grade micro-grain tungsten steel gives this bit up to a 600% lifecycle advantage over high-speed steel (HSS). This structural rigidity minimizes friction and resists intense heat buildup.
Precision Coaxiality: Advanced CNC machining guarantees minimal dimensional deviation. This balance significantly reduces machine spindle vibration, giving users cleaner edges with zero burring.
Optimal Chip Evacuation: Designed with specialized geometry (often a single "O" flute or spiral up-cut) to lift debris up and away from the cutting path instantly.

Primary Substrate Compatibility
This specific milling bit is highly effective when deploying high-speed routing passes across an array of rigid sign, packaging, and display materials:
Acrylics & Plexiglass: Keeps edges clear and crisp without melting the plastic polymers.
Foamed PVC & Sintra: Prevents edge deformation or jagged cuts along long trajectories.
MDF & Softwoods: Delivers reliable pocketing and contouring performance.
Gatorfoam & Alucobond: Cuts through dense sandwich structures cleanly without delaminating the outer skins.

Maintenance & Machine Setup
When changing and executing operations with this bit on a machine like the Kongsberg X-Table, operators should follow proper protocol:
Safety Lock: Bring the dust boot to the top position and lock it securely.
Bit Swap: Grip the bit at its upper shoulder, push down the air-pneumatic collet chuck to release the old tool, and fully slide the new bit in up to the fingertips.
Recalibration: Always trigger the automated tool tip calibration sequence within the Kongsberg i-cut Suite software after a swap to avoid marring the cutting underlayment.

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
