Esko Kongsberg BIT-ADS03-3006-38 G42445981 Milling & Router Bit for Kongsberg Cutting Systems

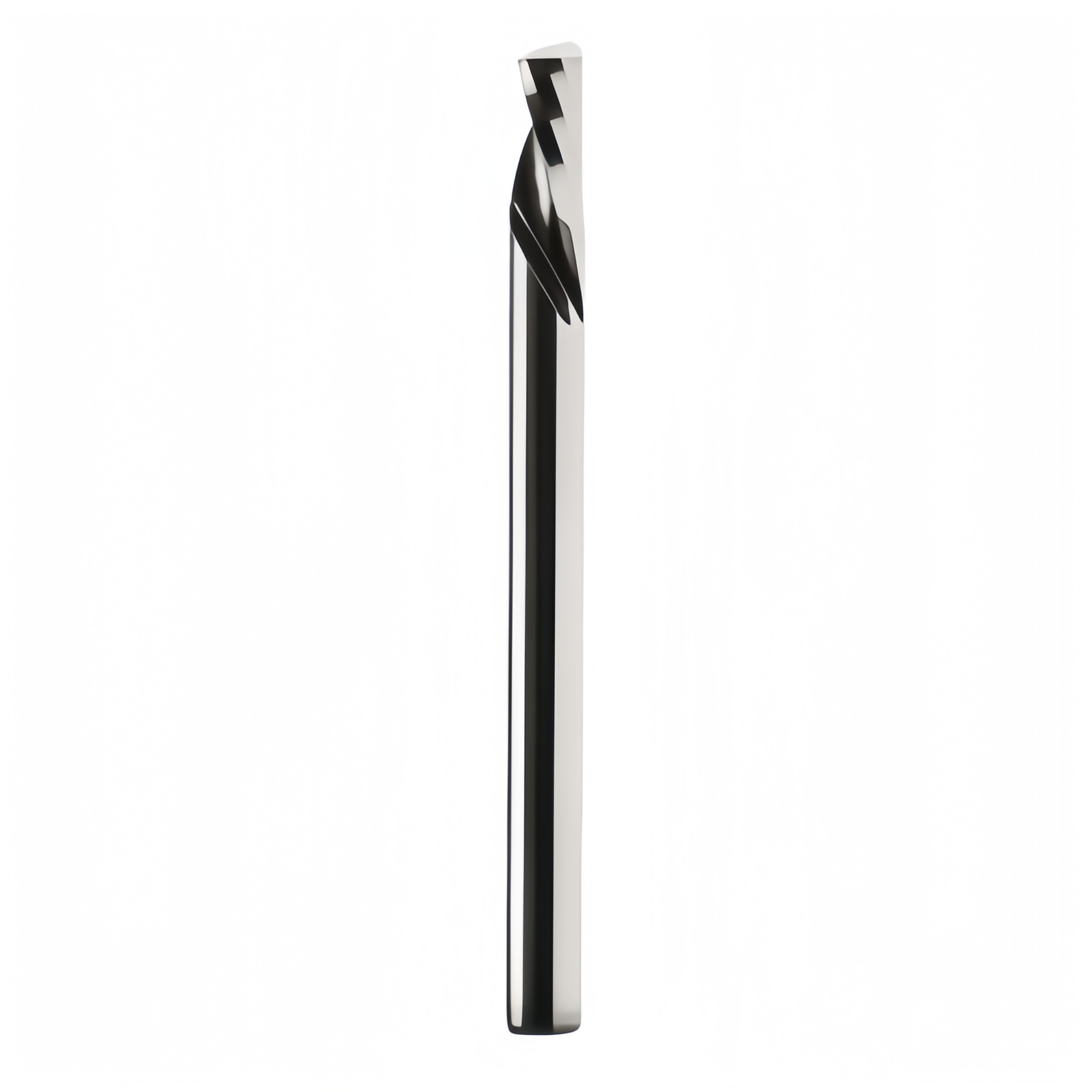

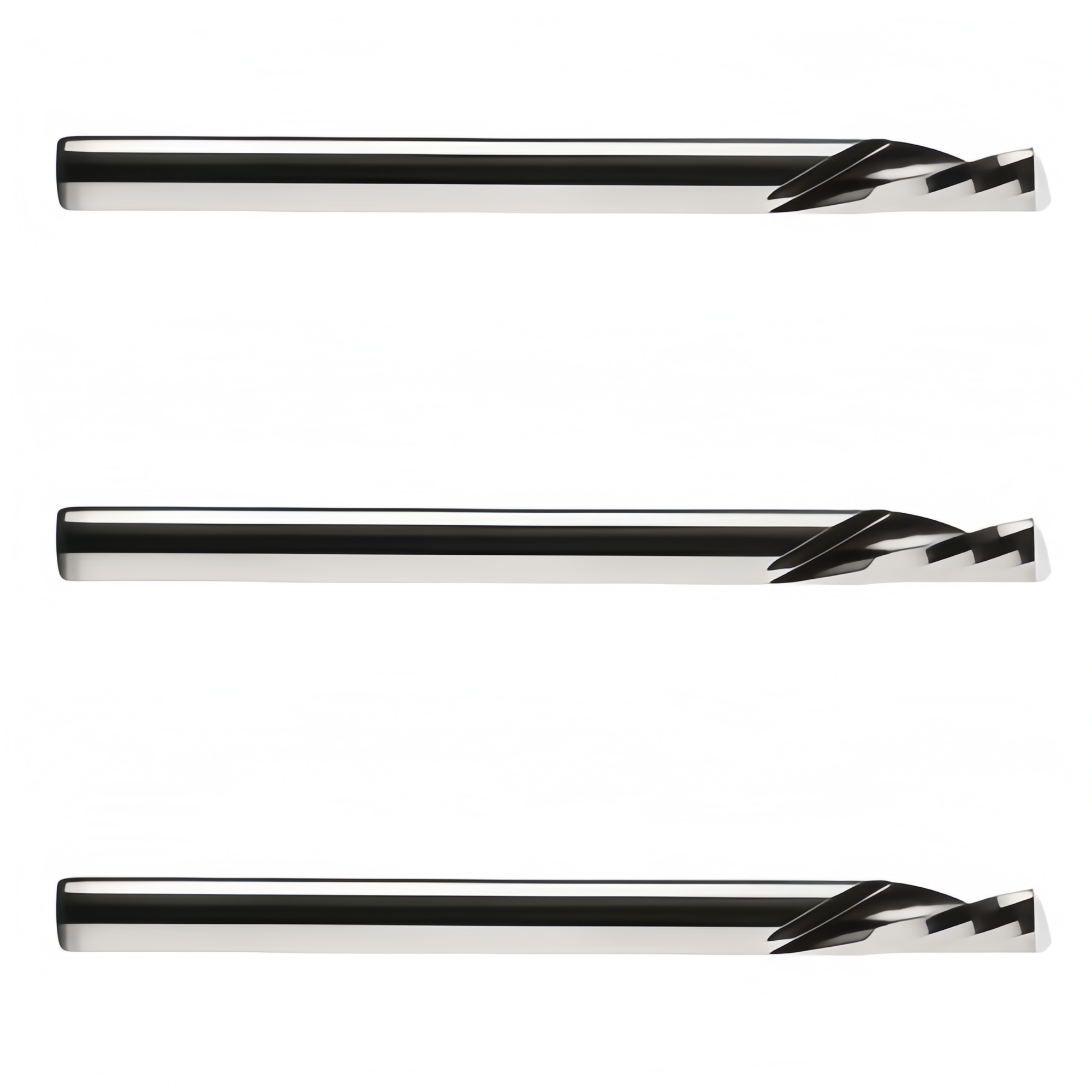

The Esko Kongsberg BIT-ADS03-3006-38 (Part #G42445981) is a 3mm shank aluminum/composite cutting router bit, often utilized on Kongsberg CNC tables with MultiCUT heads for processing materials like aluminum composite material (ACM), plastics, and acrylic.

Request A Quote

Description
Related Products

Esko Kongsberg BIT-ADS03-3006-38 G42445981 Milling & Router Bit for Kongsberg Cutting Systems

Part Number: G42445981
Bit Model: BIT-ADS03-3006-38
Bit Type: Single Flute Downcut Router Bit
Material: Solid Tungsten Carbide
Shank Diameter: 3.0 mm
Cutting Diameter: 3.0 mm
Cutting Length: 6.0 mm
Overall Length: 38 mm
Maximum Milling Depth: 5 mm
Cut Direction: Right-Hand Spiral Downcut
Maximum Speed: 60,000 RPM

Key Features & Specifications
Part Number: G42445981 (also known as BIT-ADS03-3006-38).
Material: High-quality tungsten carbide, specifically for rigidity and durability.
Cutting Type: Generally, these bits are 1-flute up-cut types optimized for aluminum and plastic (designated by "ADS" or similar specialized "AUS" bits).
Compatibility: Designed for Kongsberg cutting systems, particularly the MultiCUT and MultiCUT-HP tool heads.
Application: Ideal for high-speed routing in aluminum composite material (ACM/Dibond), plastics, and acrylic.

Common Applications
The G42445981 bit is part of the 3mm specialized cutting range designed for high-precision finishing.
Signage Production:
Efficiently mills aluminum composite (ACM) and aluminum for signage.
Acrylic & Plastics:
Suitable for cutting acrylic and foamed PVC, such as Forex or Sintra.
Display & Packaging:
Used for high-speed cutting of various rigid board materials.

These bits are generally used with a 6mm collet for the router head, often with the MultiCUT-HP spindle for faster milling speeds
