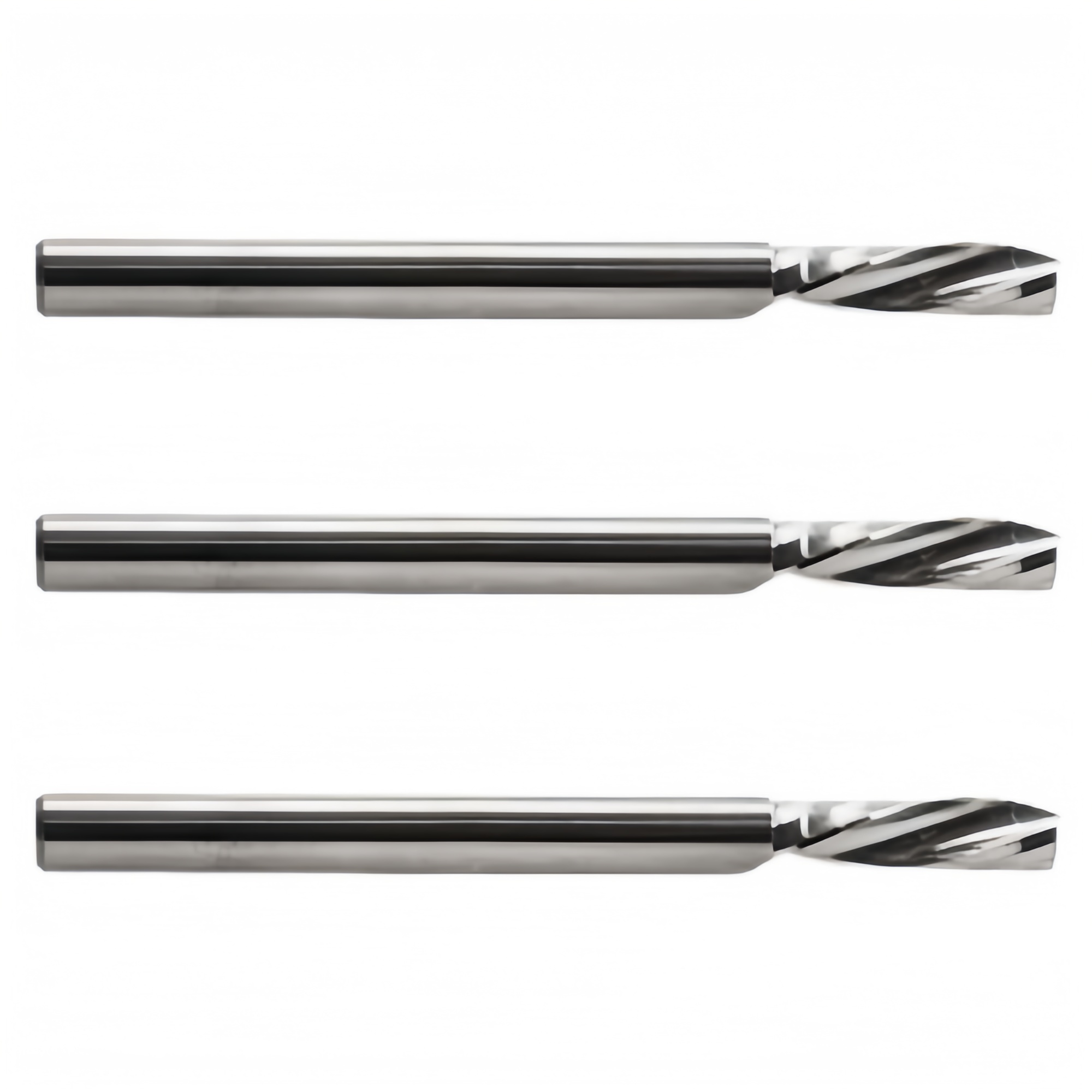

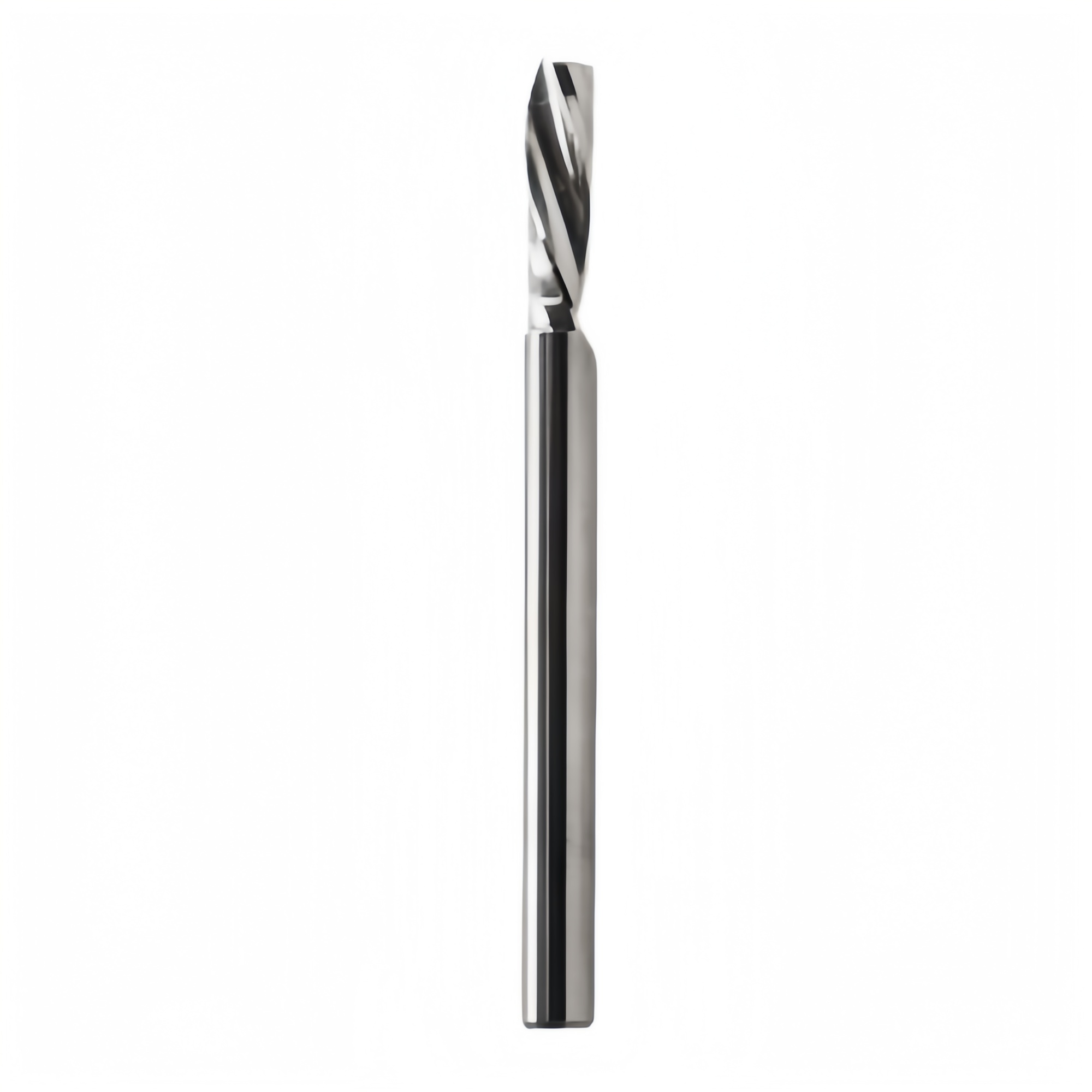

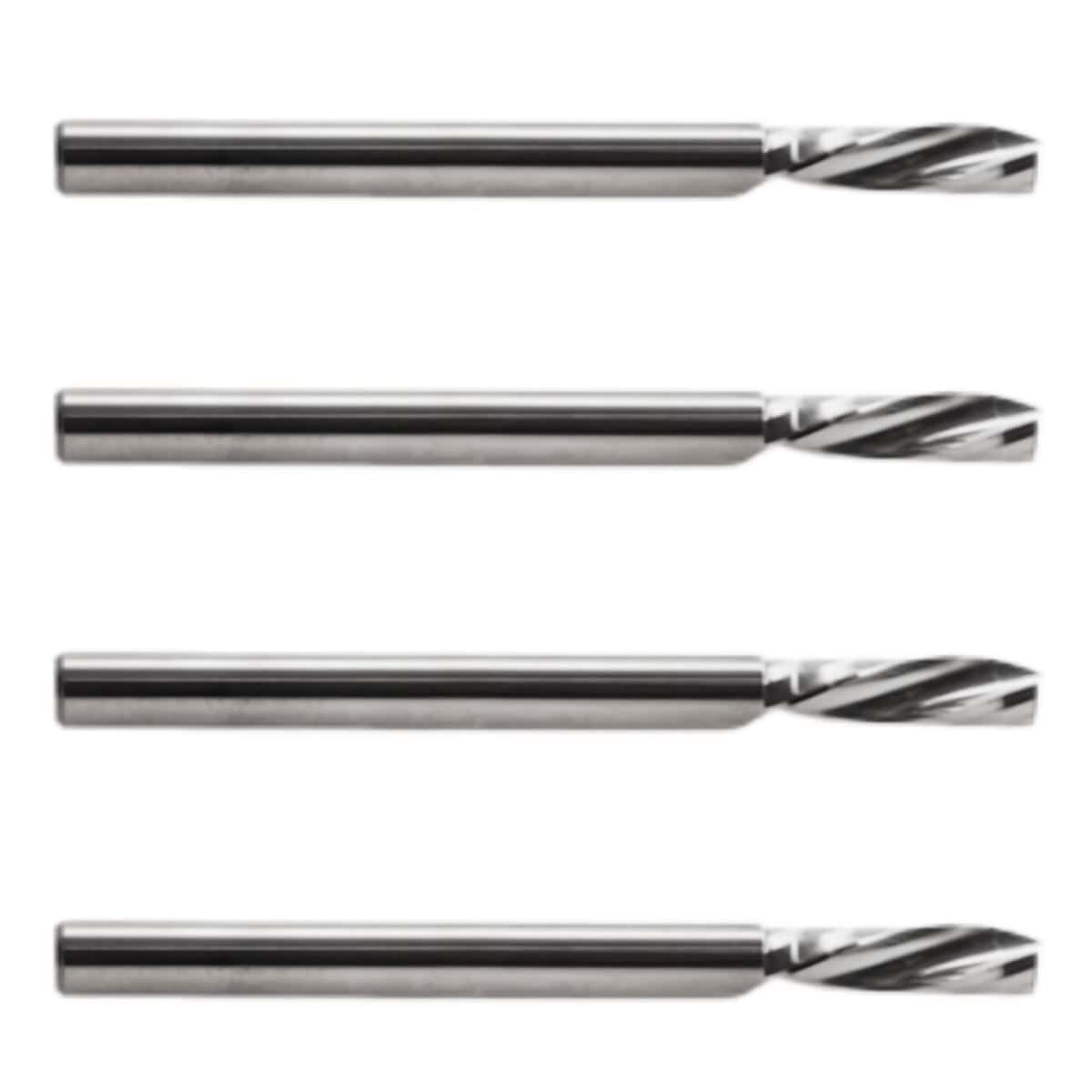

Esko Kongsberg BIT-ADS03-3011-38 G42449470 Solid Carbide Milling & Router Bit

Esko Kongsberg BIT-ADS03-3011-38 G42449470 is a high-precision, industrial-grade solid carbide milling and router bit. It is engineered exclusively for Kongsberg Precision Cutting Systems flatbed digital finishers, primarily utilized within the "3mm Super Sharp" tooling class to execute deep and co…

Request A Quote

Description
Related Products

Esko Kongsberg BIT-ADS03-3011-38 G42449470 Solid Carbide Milling & Router Bit

Part Number: G42449470
Bit Model: BIT-ADS03-3011-38
Bit Type: Single Flute Downcut Router Bit
Material: Solid Tungsten Carbide
Shank Diameter: 3.0 mm
Cutting Diameter: 3.0 mm
Cutting Length: 11.0 mm
Overall Length: 38 mm
Maximum Milling Depth: 10 mm
Cut Direction: Right-Hand Spiral Downcut
Maximum Speed: 60,000 RPM

Key Performance Attributes
· Deep Profile Cutting: Optimally balanced to deliver complex shapes and deep 11mm single-pass or multi-pass routing without tool deflection.
· High Polish Flutes: Designed with specialized cutting edges featuring extreme sharpness and polish to prevent chip melting on heat-sensitive materials.
· Automated Setup: Fully compatible with the automated barcode tool recognition system native to the Kongsberg X-Table series and C-series platforms.

According to official technical data from Shenzhen Oyea, this 3mm super-sharp bit excels at milling medium-hard, rigid substrates, including:
· Acrylic and Plexiglas
· Rigid Plastics (PVC, Polycarbonate)
· Hardwoods, MDF, and Premium Composites
· Thin-sheet light metals and Aluminium Composite Materials (ACM)
