Esko Kongsberg Bit-Ads06-4008-50 G42445940 Super Sharp, Down-Cut Milling Bit

Esko Kongsberg Router Bit BIT-ADS06-4008-50 (G42445940) is a 6mm shank, super sharp, down-cut milling bit specifically optimized for routing and deep slotting operations on heavy-duty materials like acrylics, PVC, and wood.

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Ads06-4008-50 G42445940 Super Sharp, Down-Cut Milling Bit

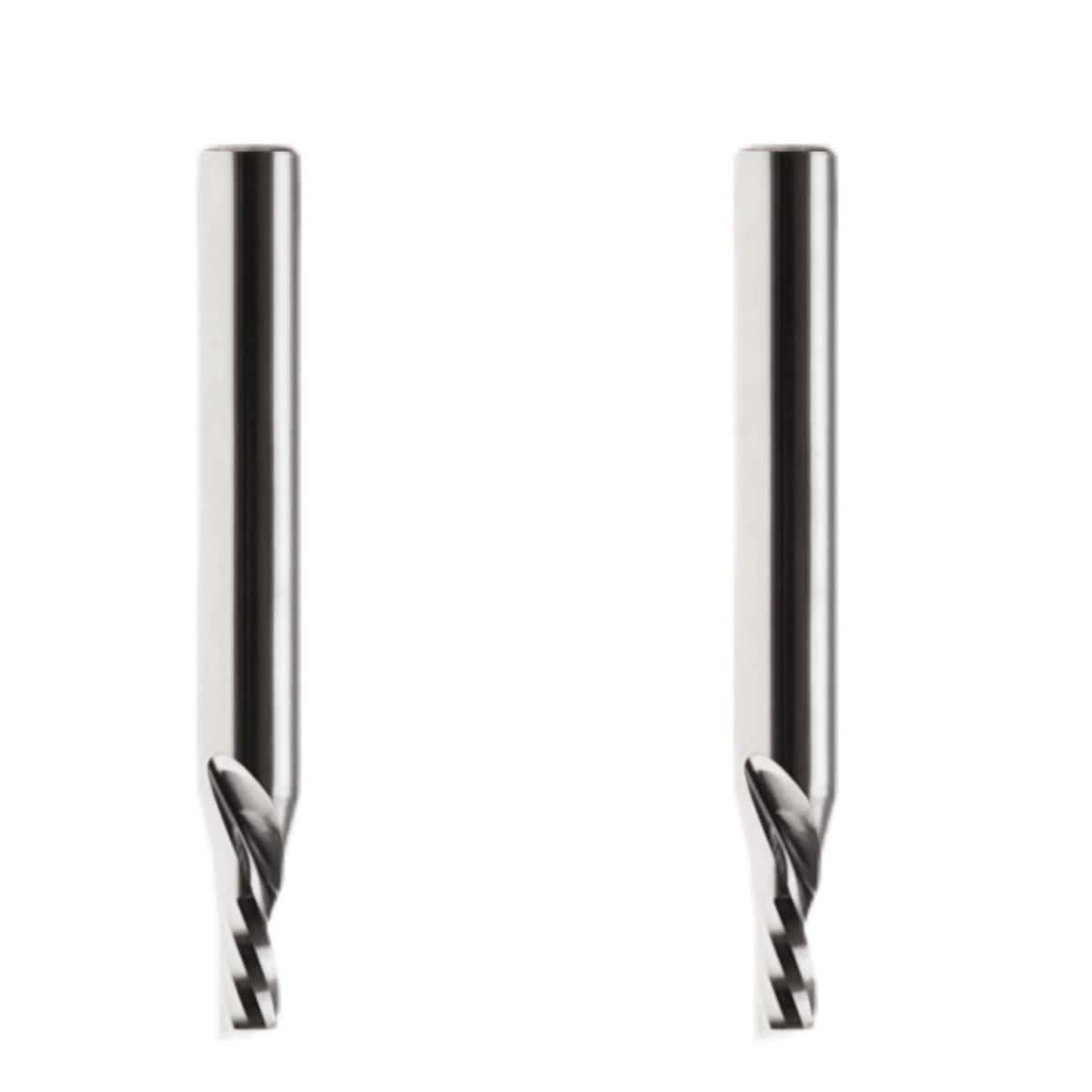

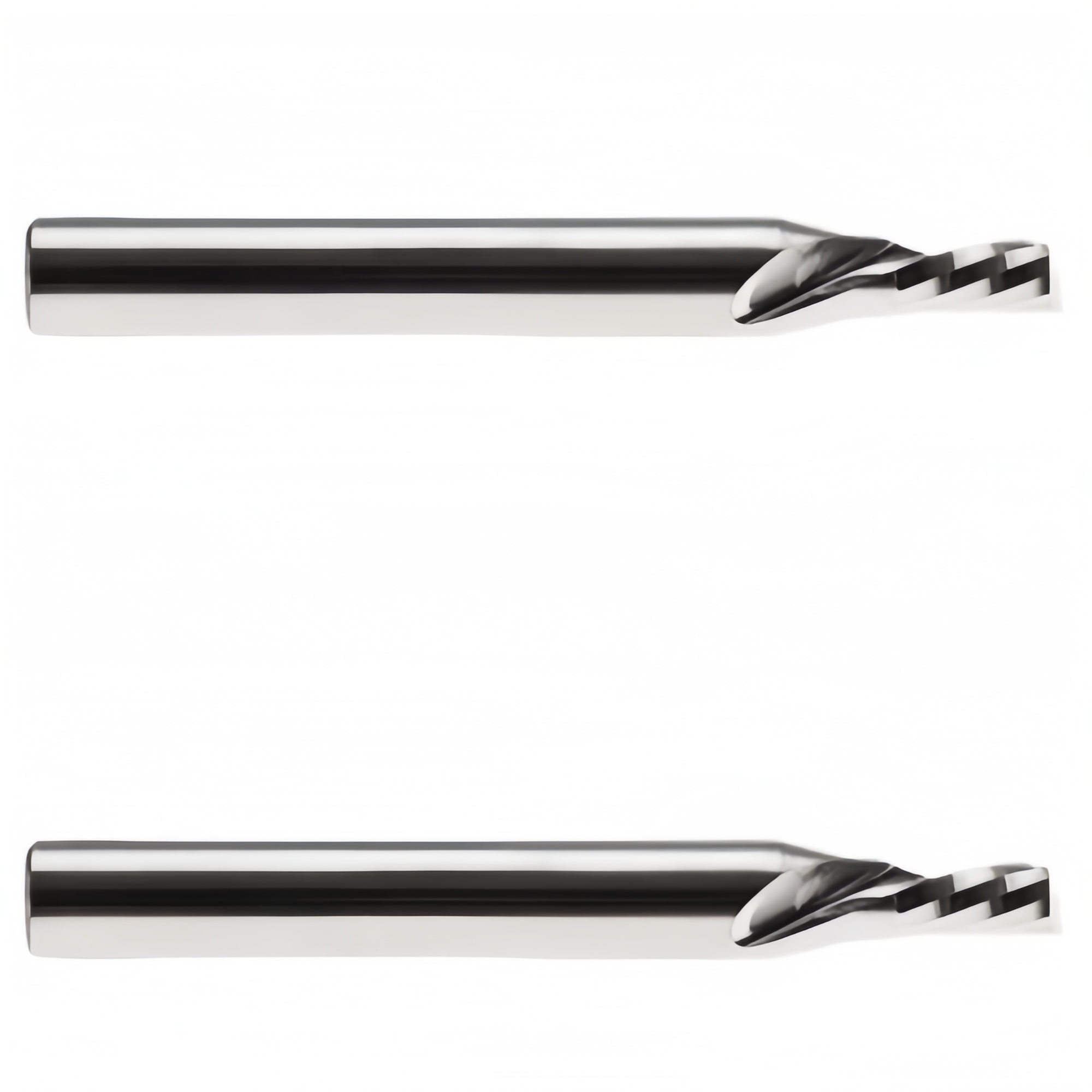

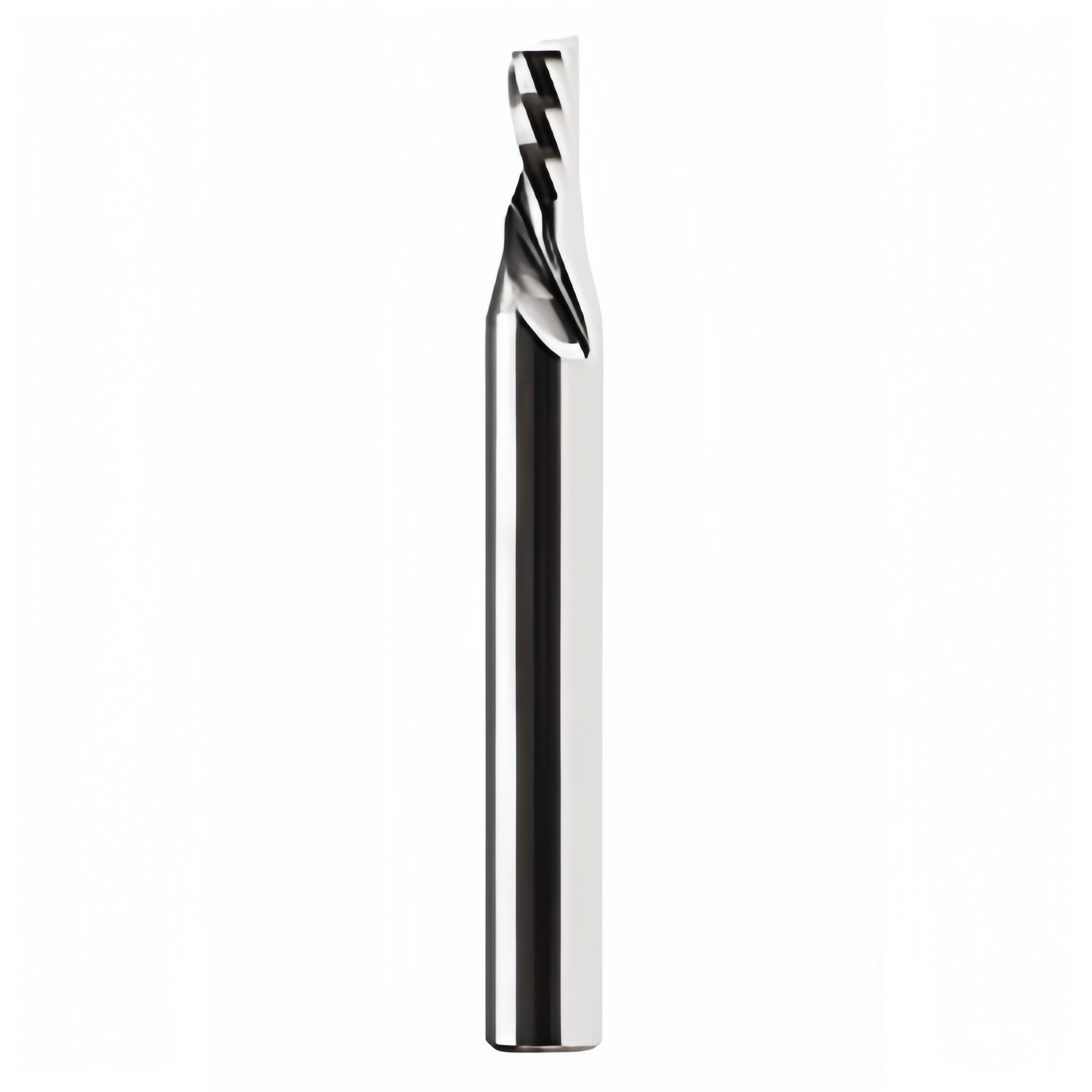

The BIT-ADS06-4008-50 (Part Number: G42445940) is a specialized milling and router bit designed for Esko Kongsberg cutting tables. It is part of the "Super Sharp" series, primarily used for precision routing of materials like acrylic and other rigid plastics where a high-quality edge finish is required.

Key Specifications
The code follows a standard Kongsberg naming convention that details its dimensions and cut type:
Shank Diameter (D): 6 mm
Cutting/Tip Diameter (d): 4 mm
Max Cutting Thickness (M): 8 mm (indicated by the '08' in the part number)
Total Length (L): 50 mm
Cut Type: Down-cut, single flute spiral
Material: Solid tungsten carbide for maximum durability

Applications and Performance
Surface Finish: The down-cut design is specifically engineered to push chips downward and press the material into the cutting bed. This prevents "tear-out" or fraying on the top surface, making it ideal for thin or delicate top layers.
Recommended Materials: It is most effective for acrylic, polycarbonate, and expanded PVC.
Compatibility: This bit is compatible with Kongsberg RM (Rigid Material) and MultiCUT tools used on X, V, C, and XP series tables.

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
