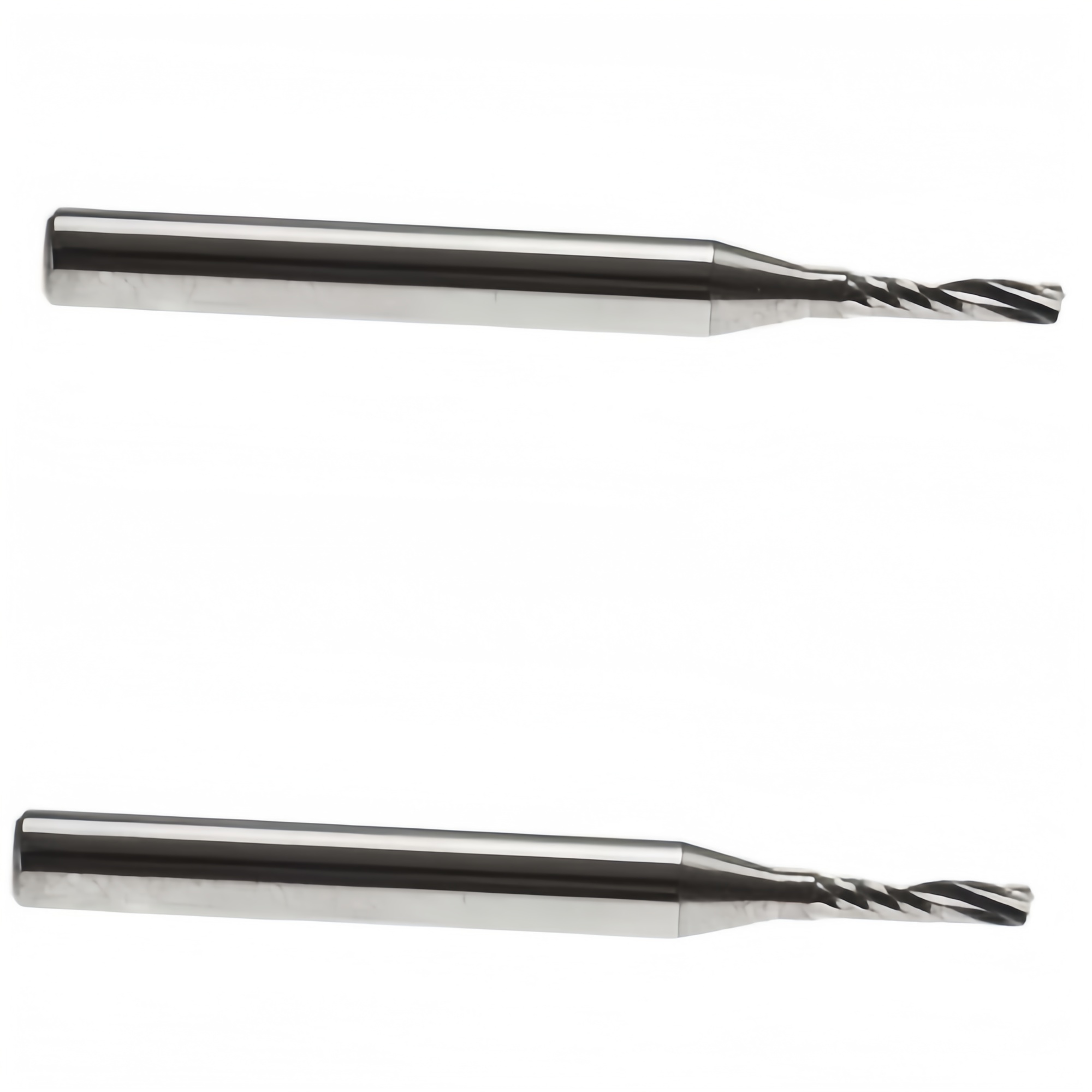

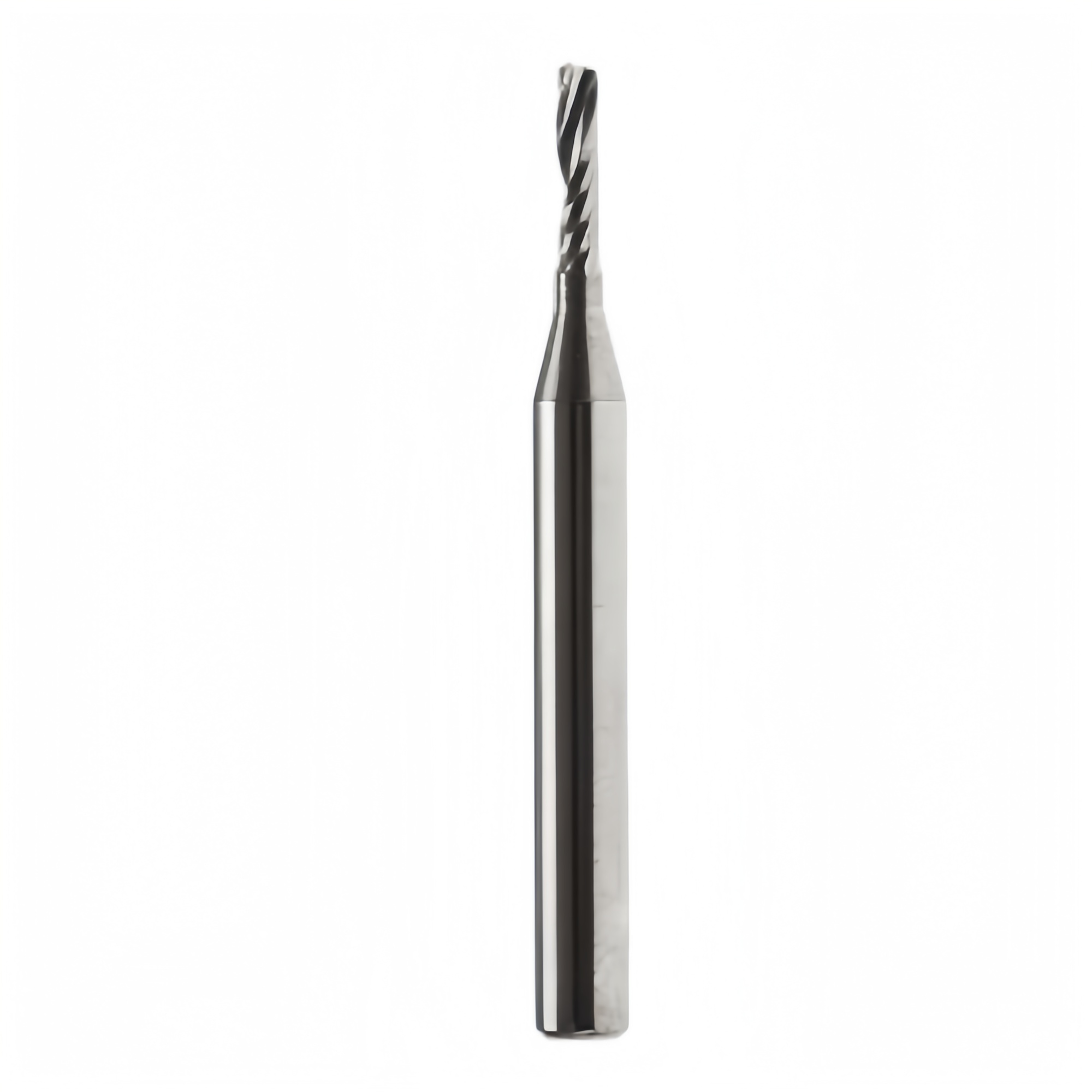

Esko Kongsberg Bit-Aus03-1506-30 G42443622 Acrylic Milling And Router Bits

Esko Kongsberg BIT-AUS03-1506-30 (Part Number: G42443622) is a premium solid carbide single-flute acrylic milling and router bit engineered specifically for Kongsberg Precision Cutting Systems digital flatbed cutters

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Aus03-1506-30 G42443622 Acrylic Milling And Router Bits

Technical Specifications
Part Number / SKU: G42443622 (also referenced as 42443622)
Bit Classification: BIT-AUS03-1506-30
Flute Geometry: Single Flute (Z1), Up-Cut Spiral
Shank Diameter: 3.0 mm
Cutting Diameter: 1.5 mm
Flute Length (Cutting Depth): 6.0 mm
Total Length: 30.0 mm

Manufactured from premium solid tungsten carbide for superior wear resistance and long service life.
Ultra-sharp single-flute O-flute cutting edge delivers smooth, polished acrylic edges.
Up-cut spiral geometry provides rapid chip evacuation, minimizing heat buildup and preventing material melting.
Produces excellent surface finish with reduced burrs and minimal post-processing.
Suitable for high-speed CNC routing of acrylic, plastics, wood, and selected non-ferrous materials.
Designed for precision machining and reliable performance in continuous industrial production.
Material Applications

Suitable for machining:

Acrylic (PMMA)
Cast Acrylic
Plexiglass
PVC
ABS
Polycarbonate (PC)
HDPE
MDF
Wood
Aluminum Composite Material (ACM)
Soft Plastics
