Esko Kongsberg BIT-MCS06-4015-50 G42471763 Router Bit for Kongsberg Cutting Tables

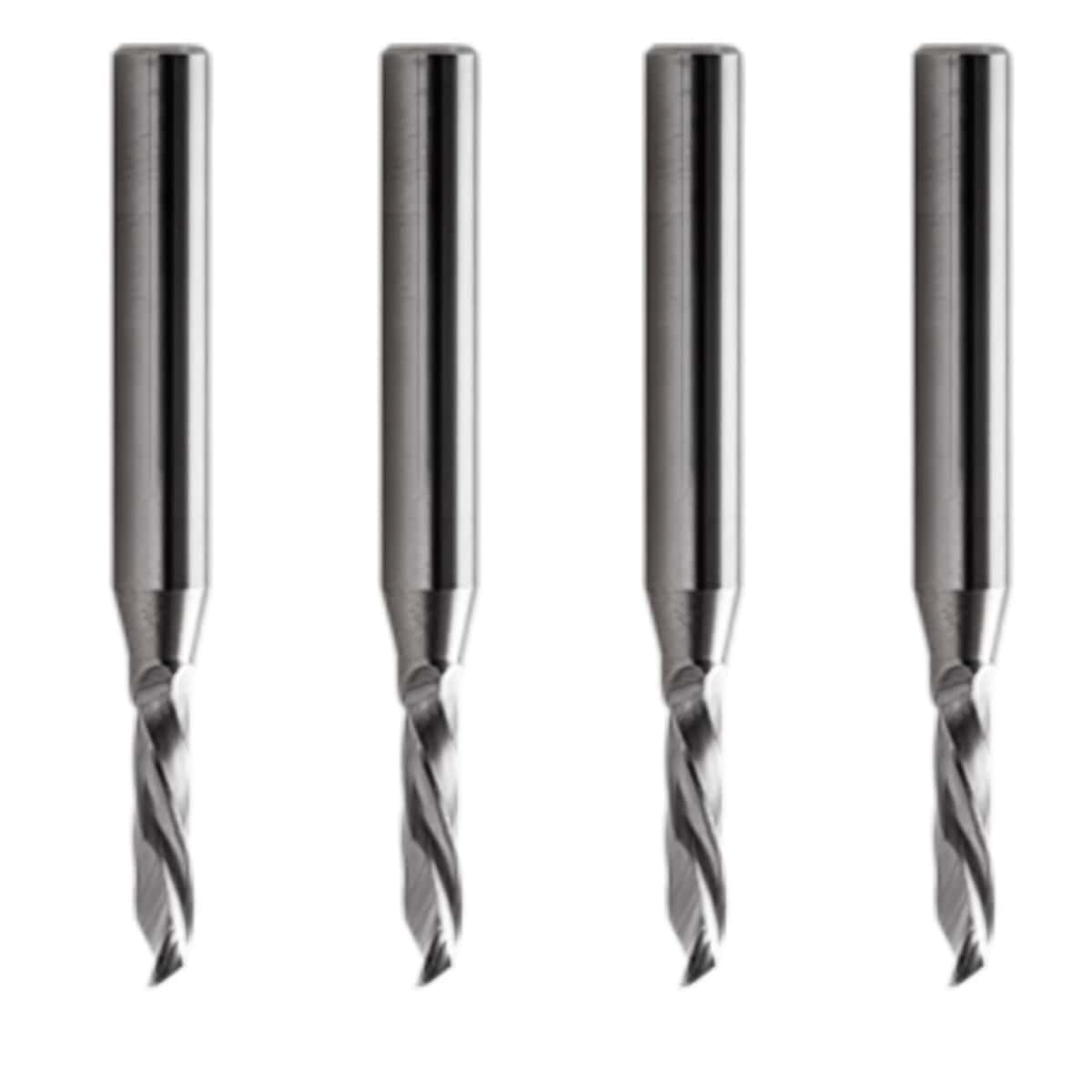

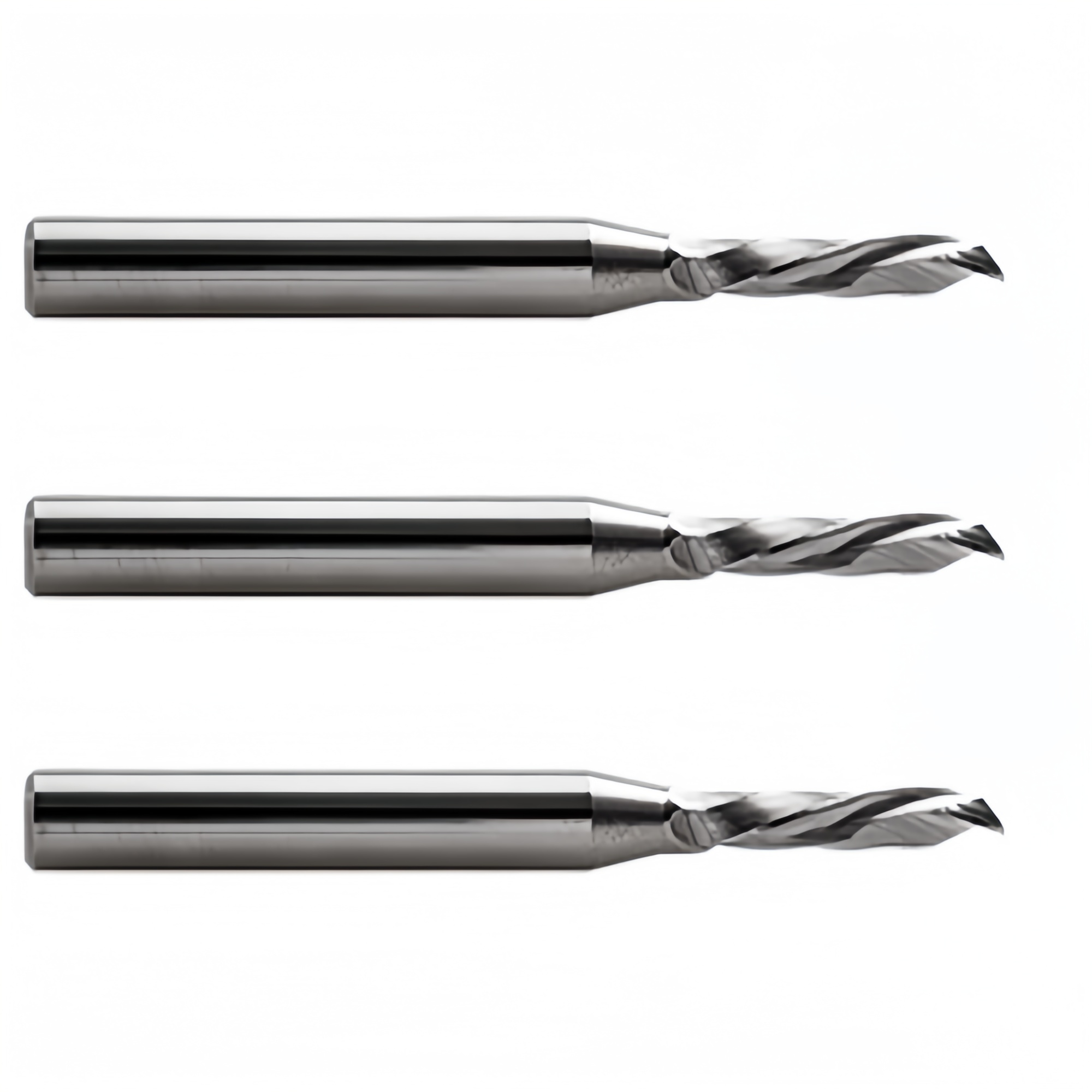

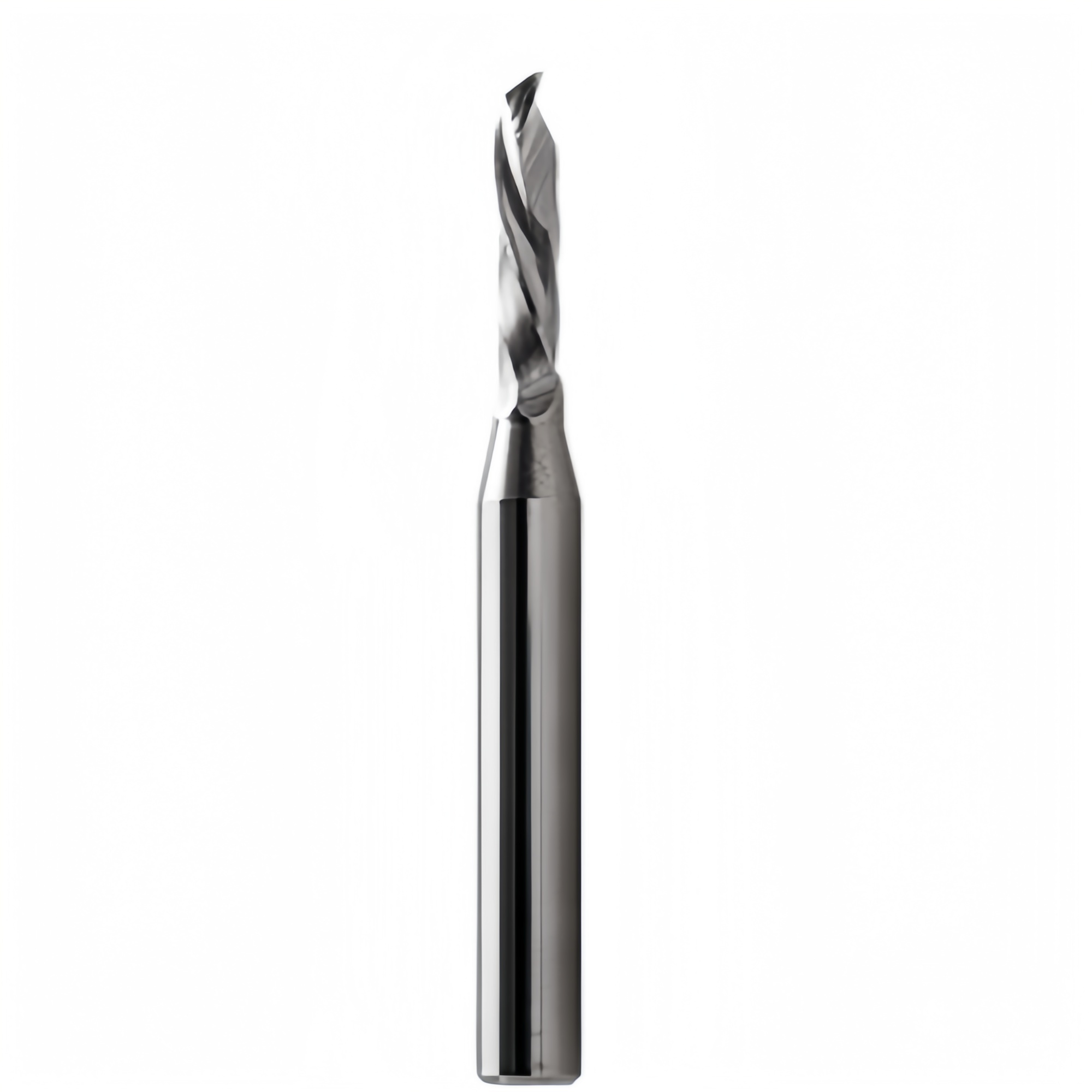

The Esko Kongsberg BIT-MCS06-4015-50 (Part No. G42471763) is a premium solid tungsten carbide compression router bit designed for Esko Kongsberg digital cutting systems.

Request A Quote

Description
Related Products

Esko Kongsberg BIT-MCS06-4015-50 G42471763 Router Bit for Kongsberg Cutting Tables

The Esko Kongsberg BIT-MCS06-4015-50 (Part No. G42471763) is a premium solid tungsten carbide compression router bit designed for Esko Kongsberg digital cutting systems.

Key Specifications
Part Number: G42471763
Bit Model: BIT-MCS06-4015-50
Bit Type: Compression Router Bit
Material: Solid Tungsten Carbide
Flute: Single Flute (Compression)
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Cutting Length: 14 mm
Overall Length: 50 mm
Recommended Material Thickness: 2–14 mm

Designed for acrylic, polycarbonate, PVC, laminated plastics, composite panels, and printed sheet materials, this bit offers efficient chip evacuation, excellent edge quality, and long service life, making it ideal for signage, display manufacturing, and industrial CNC routing applications.

Recommended Materials
Acrylic (PMMA)
Polycarbonate
PVC
Laminated plastics
Composite panels
Printed boards
Sign materials
Features
Premium solid tungsten carbide construction
Compression flute for clean top and bottom edges
Minimizes chipping and delamination
Excellent chip evacuation and cutting stability
Long tool life and high machining efficiency
Compatible with Esko Kongsberg CNC cutting tables
