Esko Kongsberg Bit-Mds03-1503-38 G42449314 Multi-Purpose Milling And Router Bits

Esko Kongsberg BIT-MDS03-1503-38 (G42449314) is a professional-grade multi-purpose CNC milling and router bit designed for Kongsberg Precision Cutting Systems digital finishing tables. This specific solid tungsten steel bit features a down-cut spiral design with a polished flute, optimizing it for p…

Request A Quote

Description
Related Products

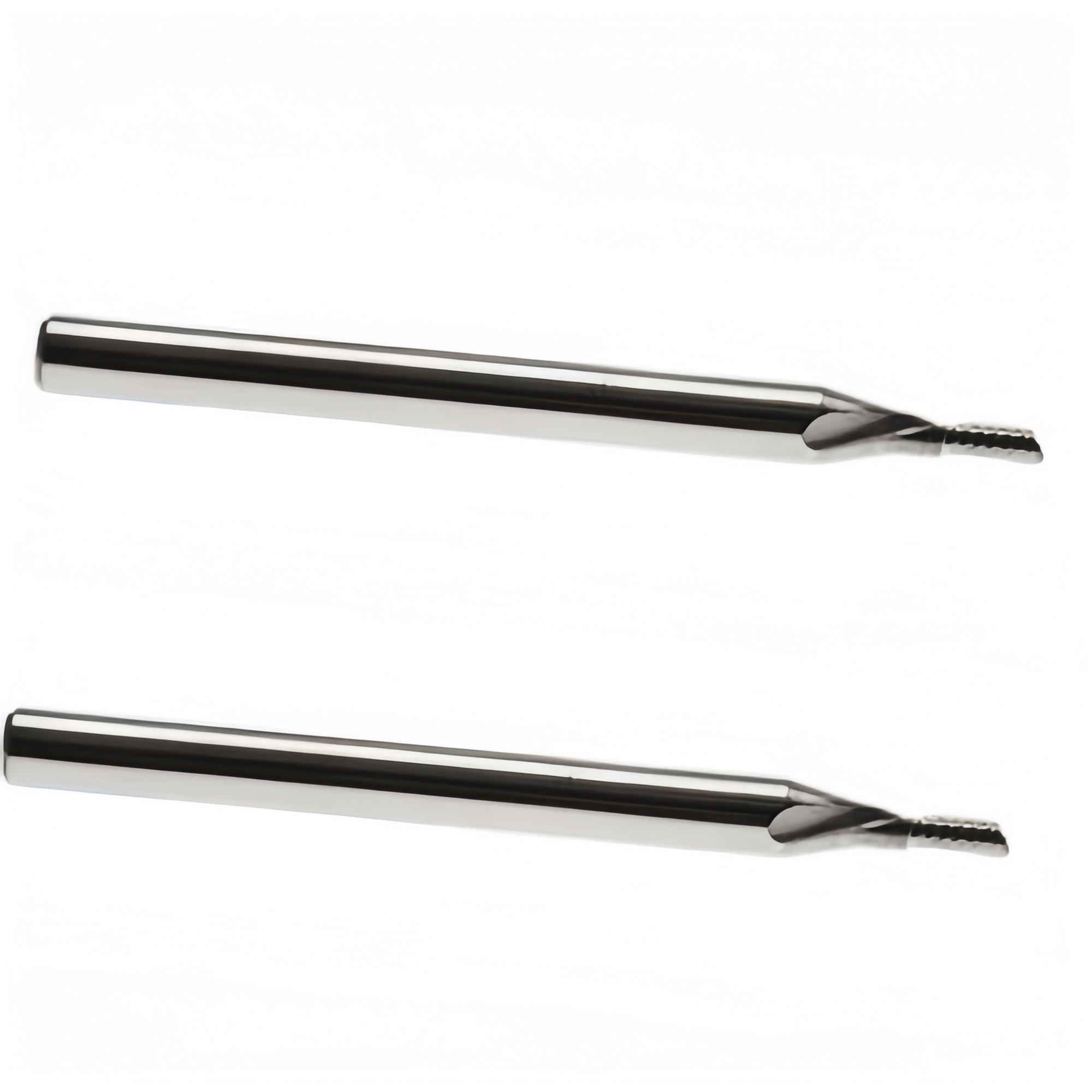

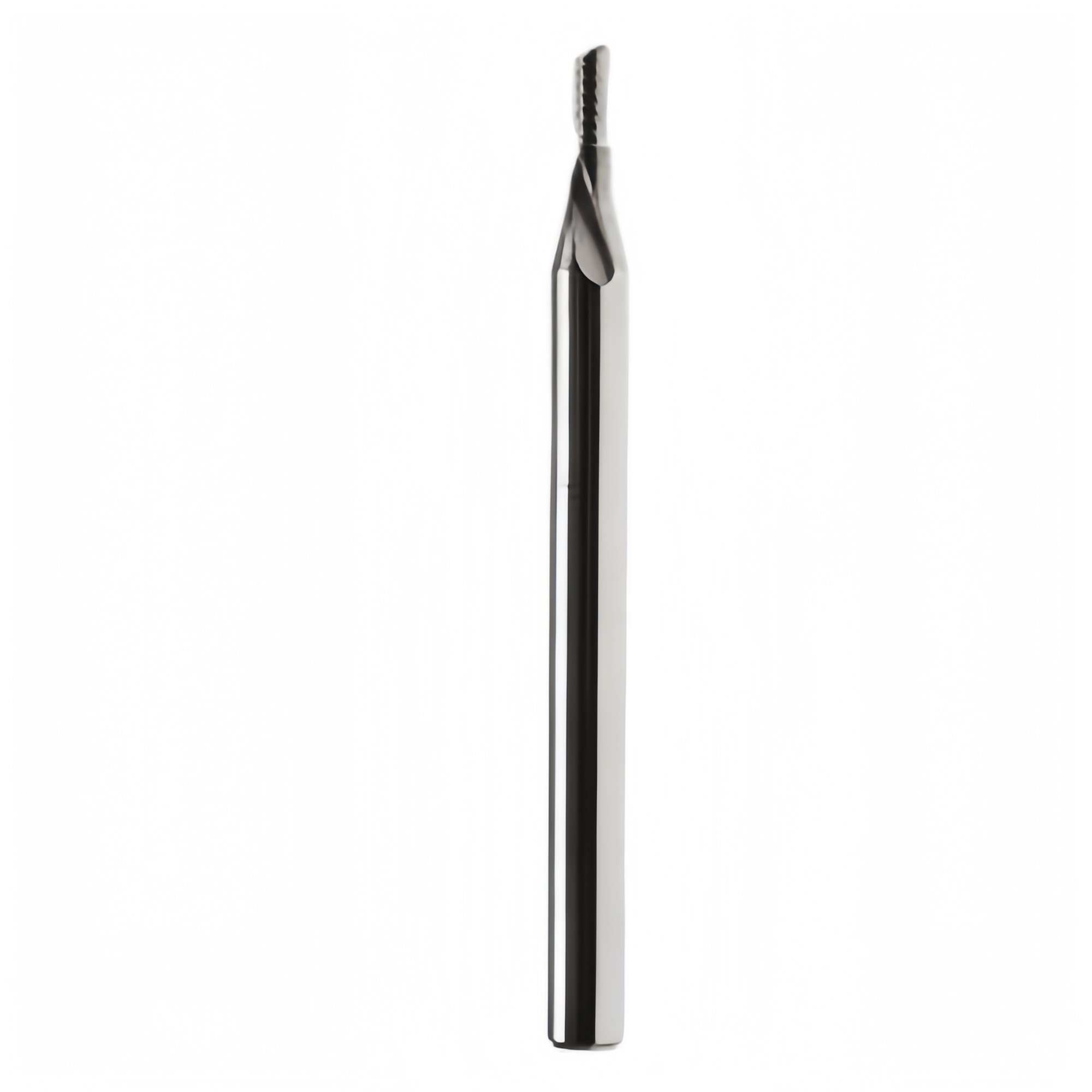

Esko Kongsberg Bit-Mds03-1503-38 G42449314 Multi-Purpose Milling And Router Bits

Technical Specifications
The code sequence breaks down the direct engineering dimensions of the tool:
MDS: Multi-purpose Down-cut Single-flute tool geometry.
03: 3mm (~1/8") shank diameter.
15: 1.5mm (1/16") nominal cutting diameter.
03: 3mm maximum milling cutting depth.
38: 38mm total overall tool length.
Material: Premium micro-grain tungsten carbide.

Manufactured from premium solid tungsten carbide for outstanding wear resistance and long tool life.
Single-flute down-cut spiral geometry produces clean top-edge finishes while minimizing chipping and tear-out.
Designed for precision machining of small features, intricate contours, and narrow inside radii.
Provides stable cutting performance with excellent dimensional accuracy during high-speed CNC routing.
Ideal for engraving, profiling, slotting, and fine-detail milling applications.
Engineered for reliable, continuous production on Esko Kongsberg routing systems.
Material Applications

Suitable for machining:

PVC
ABS
Acrylic (PMMA)
Polycarbonate (PC)
Foamed PVC
MDF
Wood
Laminated Boards
Composite Panels
Engineering PlasticsCompatible with Esko Kongsberg routing systems including:

MultiCUT
MultiCUT HP (High Performance)
X Series
XP Series
C Series
V Series

Designed for precision CNC milling and routing applications requiring excellent top-edge quality and fine-detail machining performance
