Esko Kongsberg Bit-Mds03-3011-38 G42449348 Carbide Cnc Milling And Router Bit

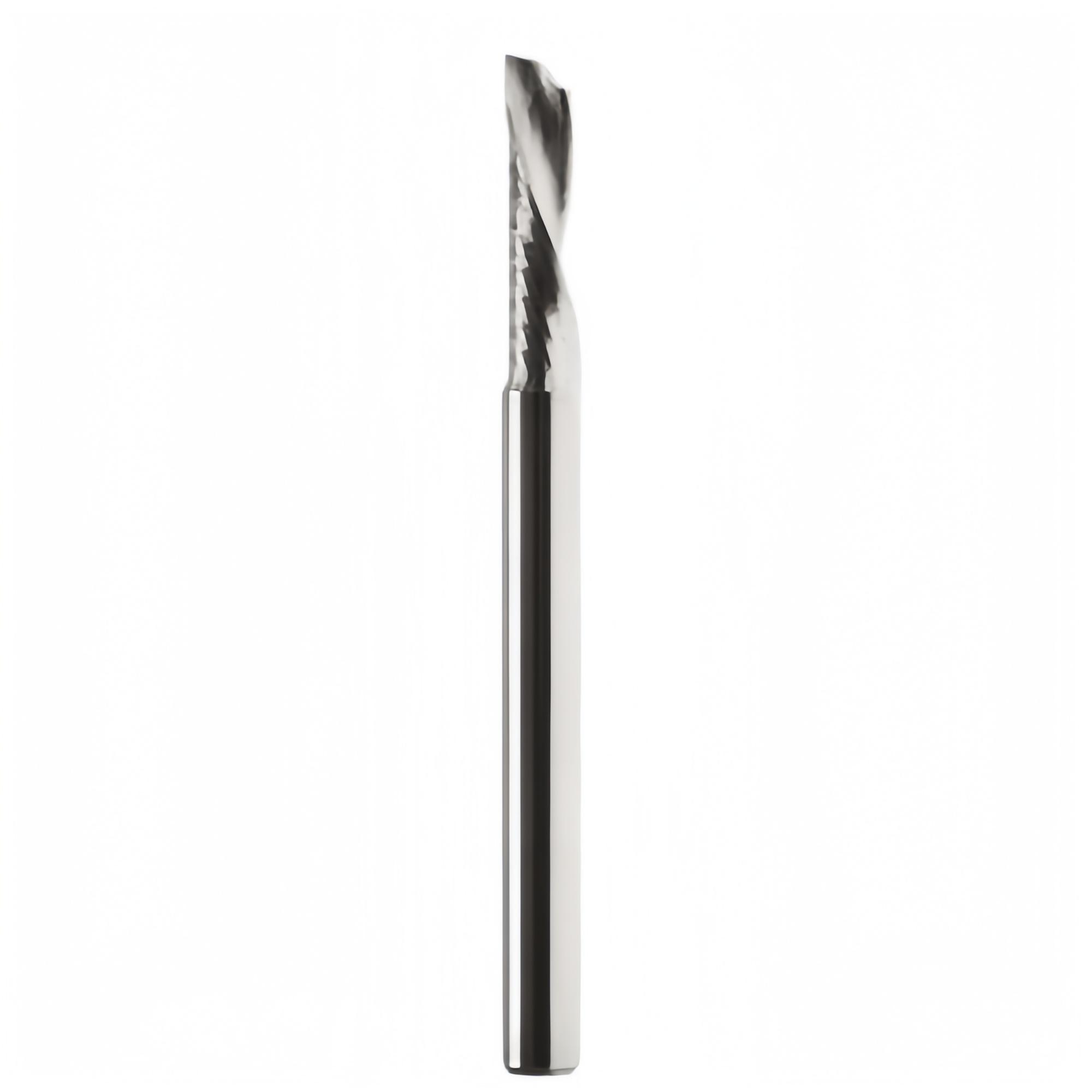

Esko Kongsberg BIT-MDS03-3011-38 (G42449348) is a high-precision, solid tungsten carbide CNC milling and router bit manufactured for Kongsberg Precision Cutting Systems

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mds03-3011-38 G42449348 Carbide Cnc Milling And Router Bit

Part Number

G42449348

Esko Kongsberg SKU identifier

Shank Diameter

3 mm

Designated by the "03" in the model name

Cutting Depth

11 mm

Maximum effective milling thickness, designated by "11"

Total Length

38 mm

Total end-to-end tool length, designated by "38"

Material

Solid Tungsten Carbide

Premium grade composite for maximum tool life and stiffness

Key Tooling Attributes

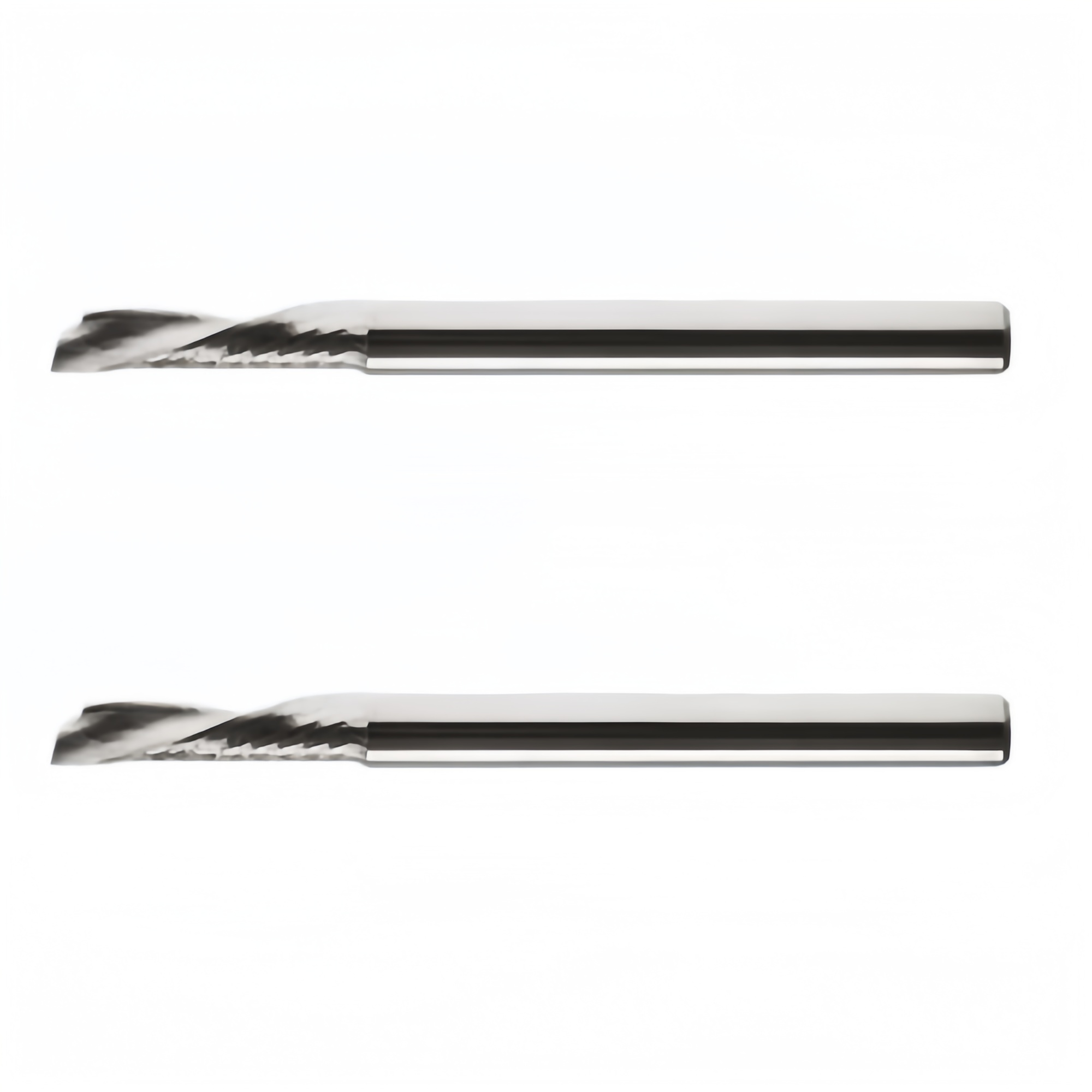

· Down-Cut Spiral Design: The "MDS" designation denotes a multi-purpose down-cut geometry. The spiral flute profile forces chips and material downward toward the vacuum matrix table during high-speed rotation. This active downward pressure prevents thin or flexible substrates from lifting, flapping, or vibrating, resulting in perfectly clean top edges.

· High-Speed Tooling Compatibility: This 3 mm shank bit is explicitly optimized for lightweight, ultra-high-velocity machining modules. It interfaces natively with the High-Speed Milling Unit (HSMU) on Kongsberg X, XL, and C series automated digital cutting flatbeds.

· Rigid Material Processing: Built from sub-micron grade solid tungsten carbide, this bit offers extreme resistance to wear and thermal deformation. It maintains sharp cutting geometry when piercing dense, abrasive, or medium-hardness materials.

Common Applications

This specific bit is deployed primarily in precision packaging, sign making, and display manufacturing for routing:

· Harder technical plastics and thick acrylic sheets

· Dense wood composites, MDF, and hardwood veneers

· Solid PVC, foamed PVC boards (Forex/Sintra), and polystyrene

· Non-ferrous soft metals and composite sandwich panels at lower feed rates
