Esko Kongsberg Bit-Mds06-6020-64 G42458414 Multi-Purpose Milling Bit Product

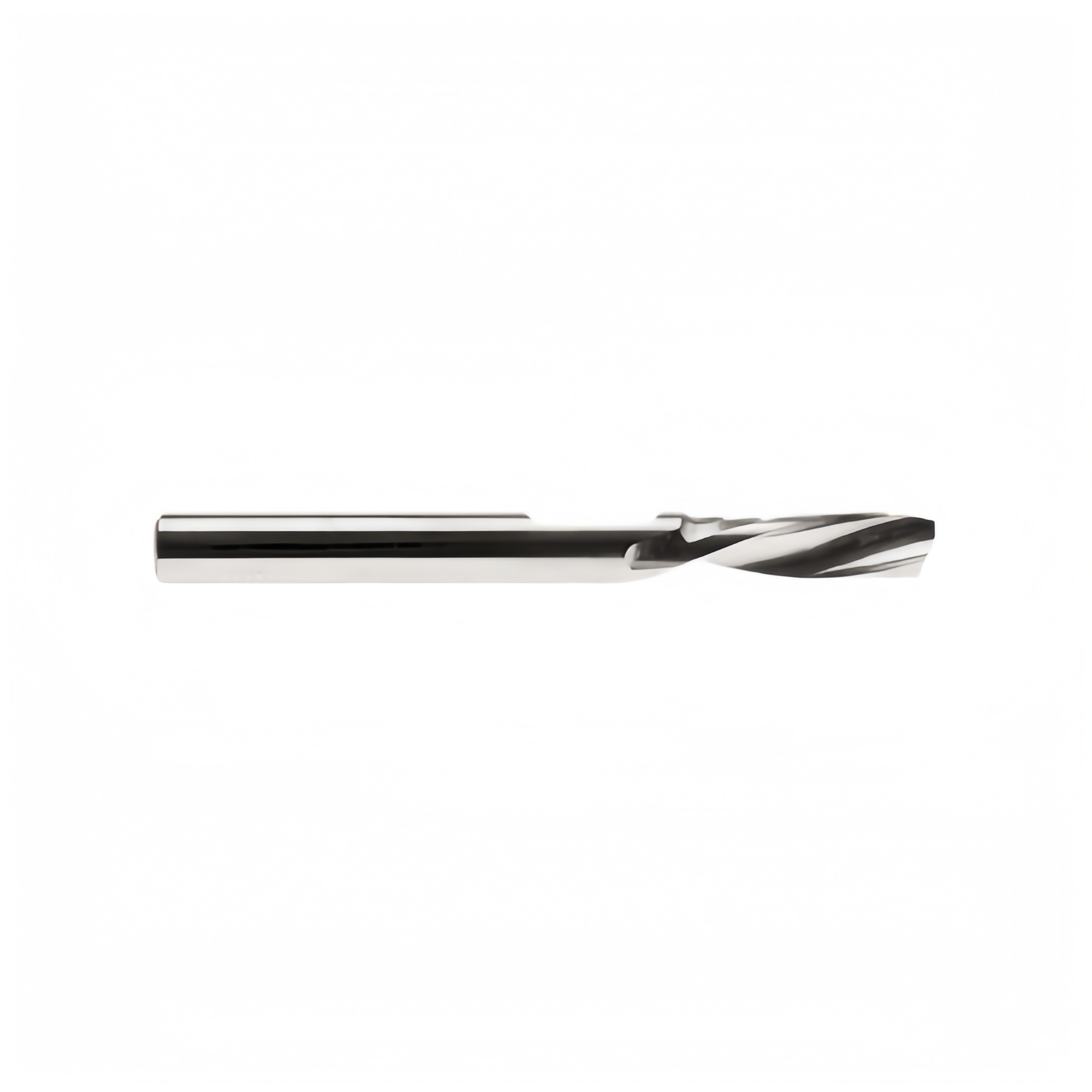

Esko Kongsberg BIT-MDS06-6020-64 (G42458414) is a single-flute, multi-purpose, down-cut solid tungsten carbide milling bit. It is engineered as an original equipment manufacturer (OEM) part for Esko Kongsberg digital finishing cutting tables. The down-cut design pushes chips downward during operatio…
Request A Quote
Esko Kongsberg Bit-Mds06-6020-64 G42458414 Multi-Purpose Milling Bit Product
Technical Specifications
According to industrial product catalogs from suppliers like Shenzhen Oyea Machinery Co., Ltd and tool tracking documentation, the alphanumeric code breaks down into exact mechanical dimensions:
Shank Diameter: 6.0 mm (MDS06 standard architecture)
Milling / Cutting Diameter: 6.0 mm (60)
Flute Length / Max Cutting Depth: 20 mm (20)
Total Tool Length: 64 mm (64)
Geometry: Single flute "O-flute" with a polished flute profile
Direction: Down-Cut
Material Composition: Solid Tungsten Carbide
Key Mechanical Advantages
Down-Cut Geometry: Unlike standard up-cut bits that pull chips upward, a down-cut spiral geometry pushes chips and downward forces toward the vacuum bed. This configuration is critical for keeping thin, flexible, or layered sheet materials perfectly flat against the matrix without lifting.
Polished Single Flute (Z1): The single-flute design yields massive chip clearance spaces. When spinning at high rotational rates (up to 60,000 RPM on an HPMU), this helps quickly eject material debris, reducing heat friction buildup and stopping plastics or laminates from melting or loading onto the edge.
Industrial Longevity: Being forged entirely from micro-grain solid tungsten carbide ensures high structural rigidity and minimizes deflection or snapping during complex, deep-milling geometries.
Material Compatibility
This multi-purpose down-cut bit is optimized for cutting rigid, semi-rigid, and composite substrates where top-edge surface finish is a priority:
Signage Substrates: Aluminum Composite Material (ACM / Dibond) and rigid plastics.
Wood Composites: Medium-Density Fiberboard (MDF), thin plywood, and veneered panels.
Rigid Plastics: Acrylic, polycarbonate, and foamed PVC (Sintra / Forex).
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
