Esko Kongsberg Bit-Mus03-2006-38 G42443416 Multi-Purpose Router Bits

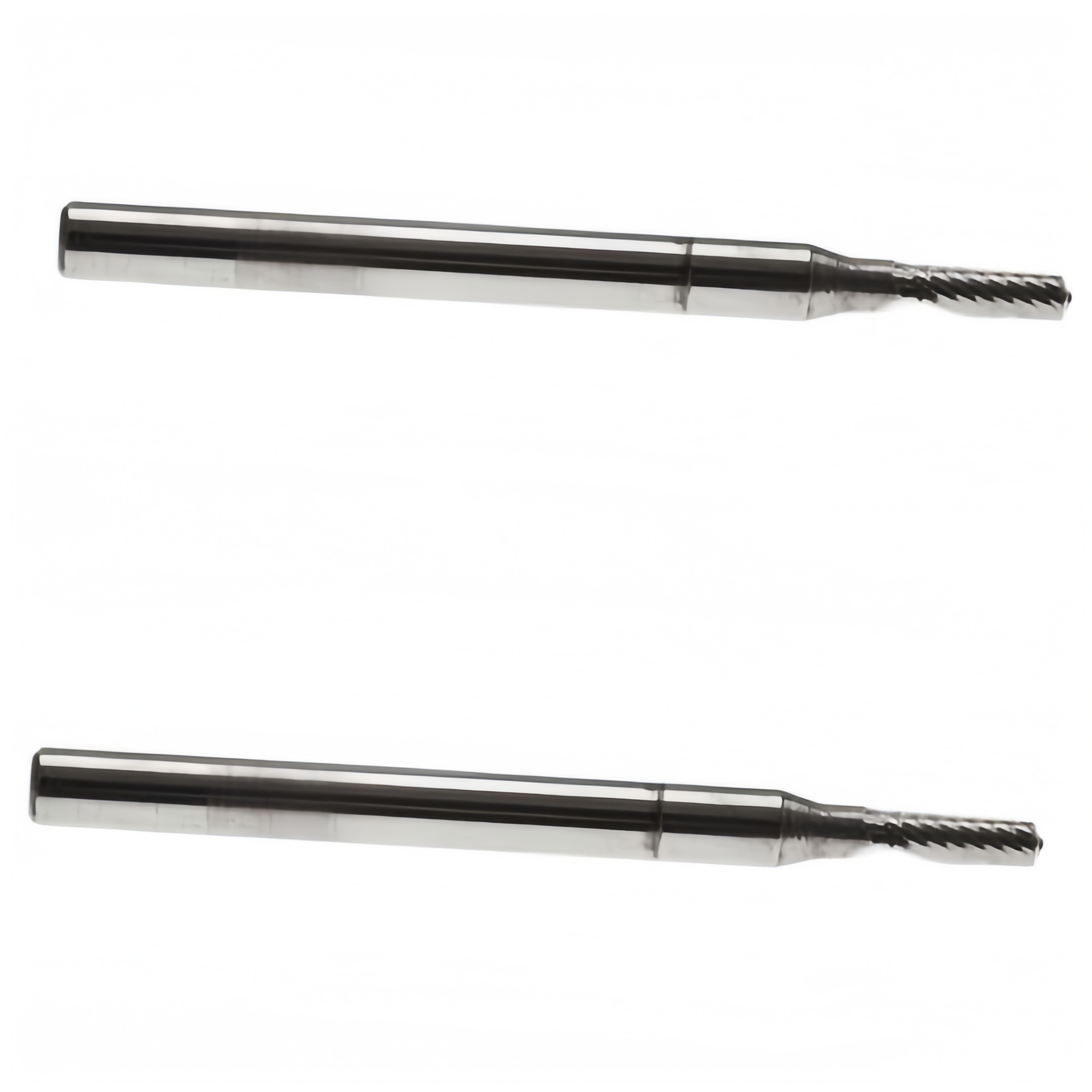

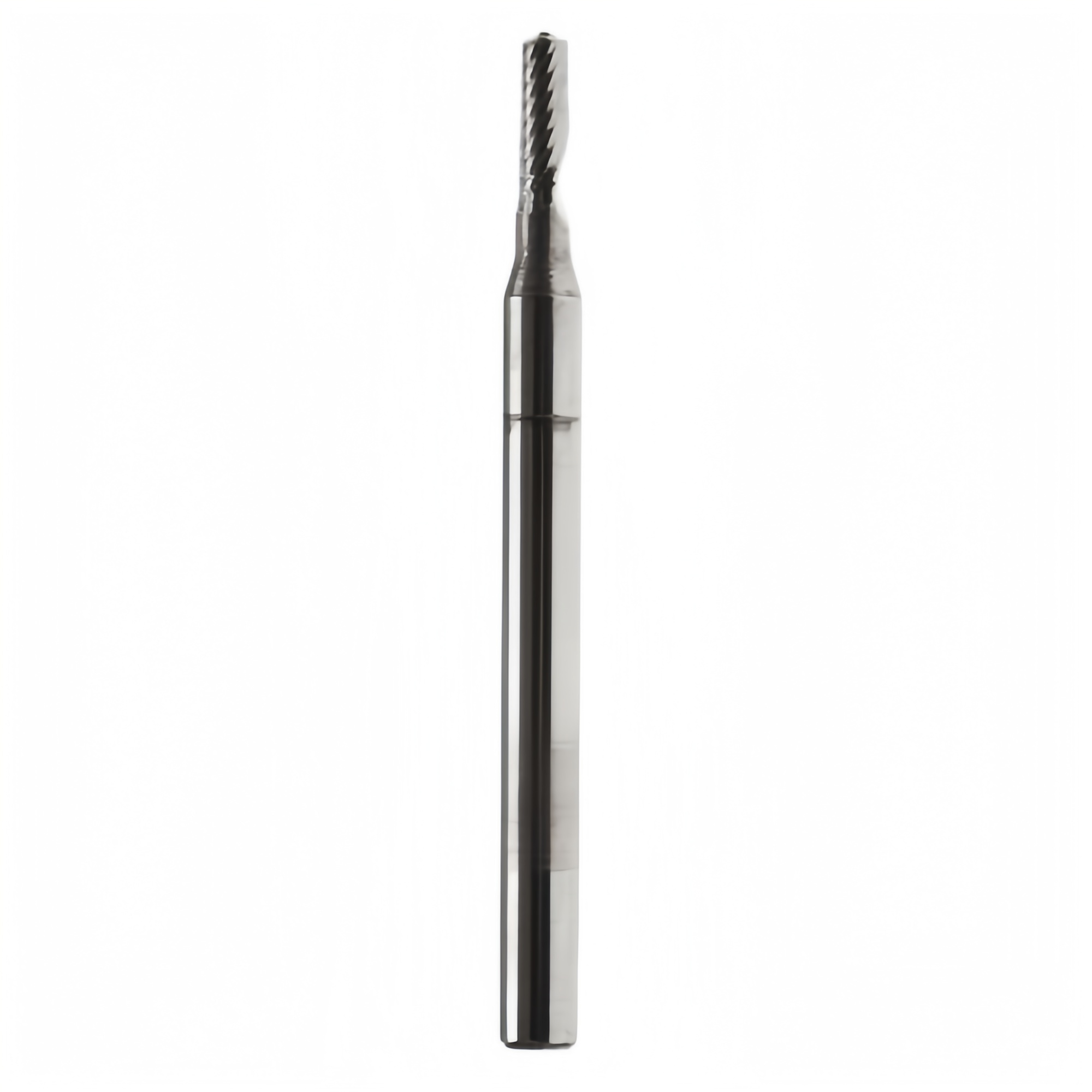

Esko Kongsberg BIT-MUS03-2006-38 (Part Number: G42443416) is a premium, tungsten carbide multi-purpose router bit engineered for precision CNC routing on Kongsberg Systems cutting tables

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus03-2006-38 G42443416 Multi-Purpose Router Bits

Shank Diameter (D)

3 mm

Tip / Cutting Diameter (d)

2 mm

Max Cutting Depth / Flute Length (M)

5 mm to 6 mm

Total Length (L)

38 mm

Geometry

Up-cut, Single Flute

Material

Solid Tungsten Carbide

Hardware Compatibility

This tool is natively designed for Kongsberg digital finishing tables. It is fully compatible with:

· Kongsberg MultiCut (1kW) and HSMU milling heads.

· Standard 3mm chucks or collets (such as part number 42444083).

· Cross-platform CNC machines (e.g., Multicam routers) when paired with a matching 3mm collet.

Application & Material Guide

The up-cut spiral design pulls waste material upward and away from the cut, leaving a smooth bottom edge. It performs exceptionally well across a versatile range of substrates:

· Metals & Composites: Aluminium and Aluminium Composite Materials (ACM/Dibond).

· Plastics: Acrylic, Polycarbonate, Foamed PVC (Forex/Sintra), and Hardfoam.

· Wood & Organics: MDF, natural wood, and solid plastics.

Cross-Brand Equivalents

this specific bit shares identical functional geometry with the following industrial alternatives:

· Zund: Type R41 / R72 (Part 3910753 / 3910734).
