Esko Kongsberg Bit-Mus03-2506-38 G42443424 Multi-Purpose Milling And Router Bits

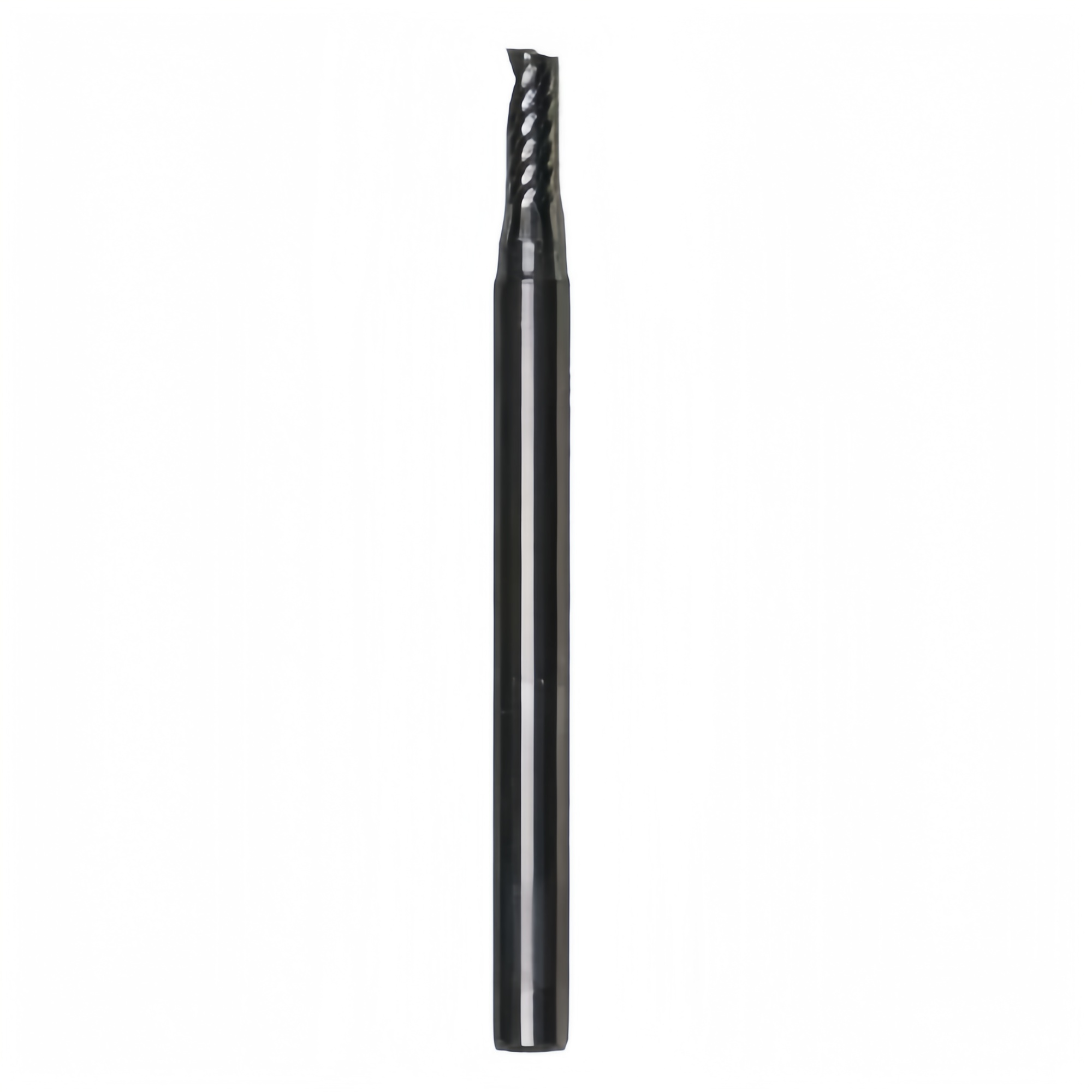

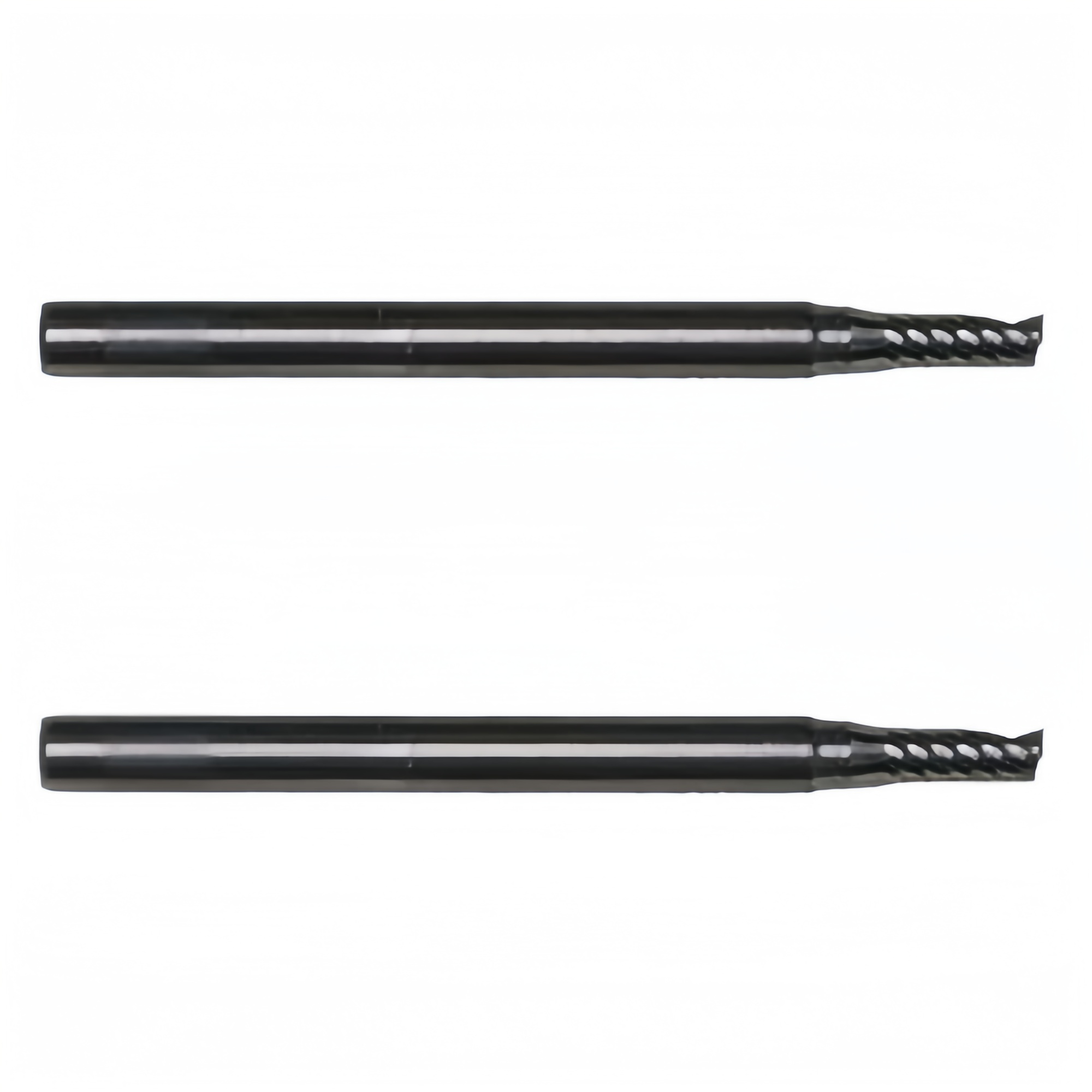

Esko Kongsberg BIT-MUS03-2506-38 (part number G42443424) is a premium, solid tungsten carbide multi-purpose milling and router bit designed for Kongsberg PCS digital cutting tables. This specialized up-cut, single-flute tool is engineered for clean chip evacuation and high-speed precision when routi…

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus03-2506-38 G42443424 Multi-Purpose Milling And Router Bits

Technical Specifications

The part identification code system explicitly defines the physical attributes and operational capacities of the bit:
Specification

Dimension / Value

Detail Code Meaning

Shank Diameter (D)

3.0 mm

03 (3 mm shank line)

Tip / Cutting Diameter (d)

2.5 mm

25 (2.5 mm cutting profile)

Max Cutting Thickness (M)

6.0 mm

06 (6 mm maximum depth per pass)

Total Tool Length (L)

38 mm

38 (38 mm total length end-to-end)

Flute Geometry

Single Flute, Up-Cut

US (Up-cut Single flute)

Material Compatibility

This multi-purpose milling bit performs reliably across a broad range of signs, graphics, and packaging substrates:

· Metals & Composites: Aluminium sheets and Aluminium Composite Materials (ACM / Dibond)

· Plastics: Acrylic (Plexiglas), Polycarbonate, and Foamed PVC (Forex)

· Wood Products: MDF, solid hardwoods, softwoods, and plywood

Tool Unit Requirements

To operate this 3mm shank bit on a Kongsberg digital finisher, the cutter head must be outfitted with the correct chuck configuration:

· MultiCUT / HSMU (1kW): Requires the 3mm chuck adapter (Part #42444083).

· MultiCUT-HP / HPMU (3kW): Requires the high-power 3mm chuck adapter (Part #42455675).
