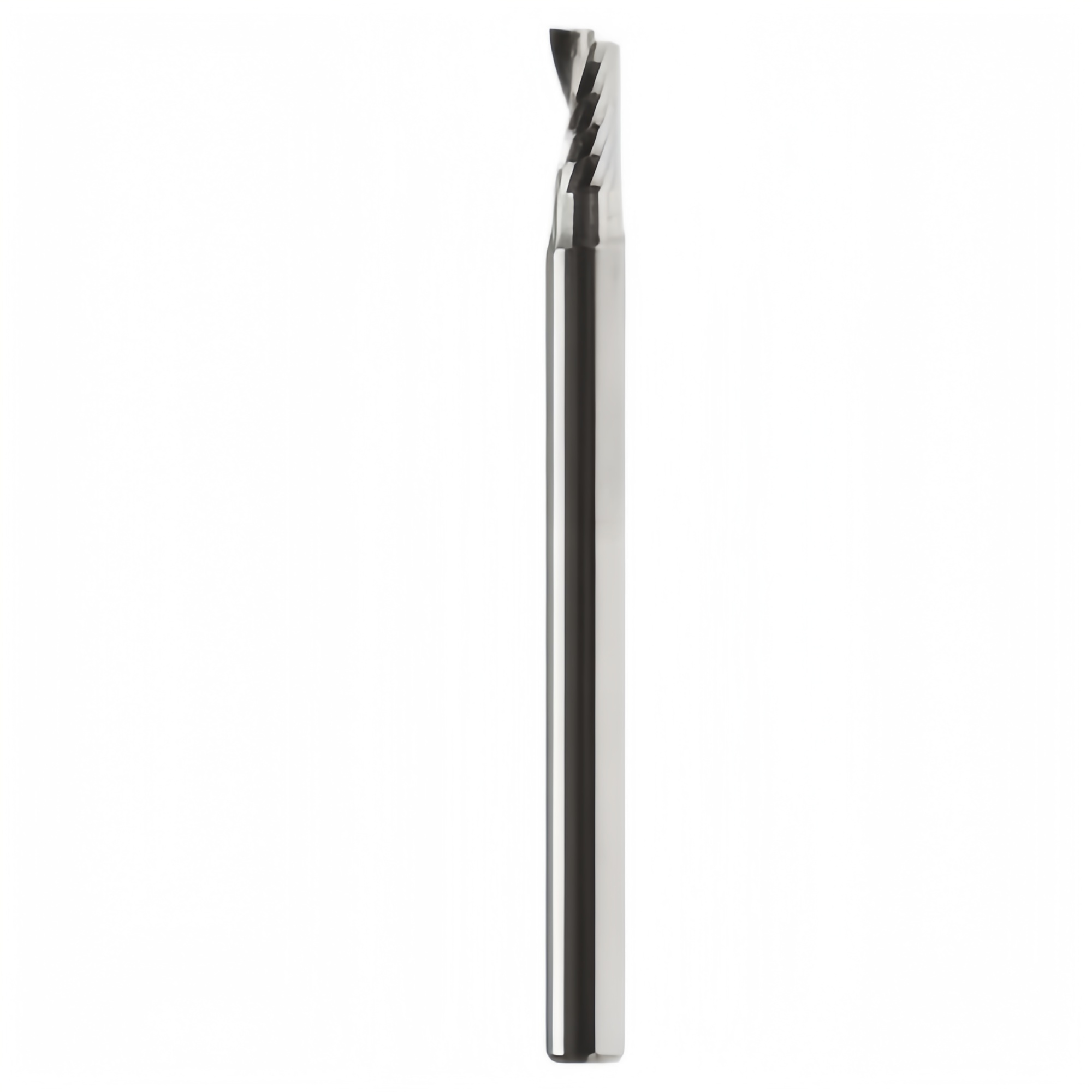

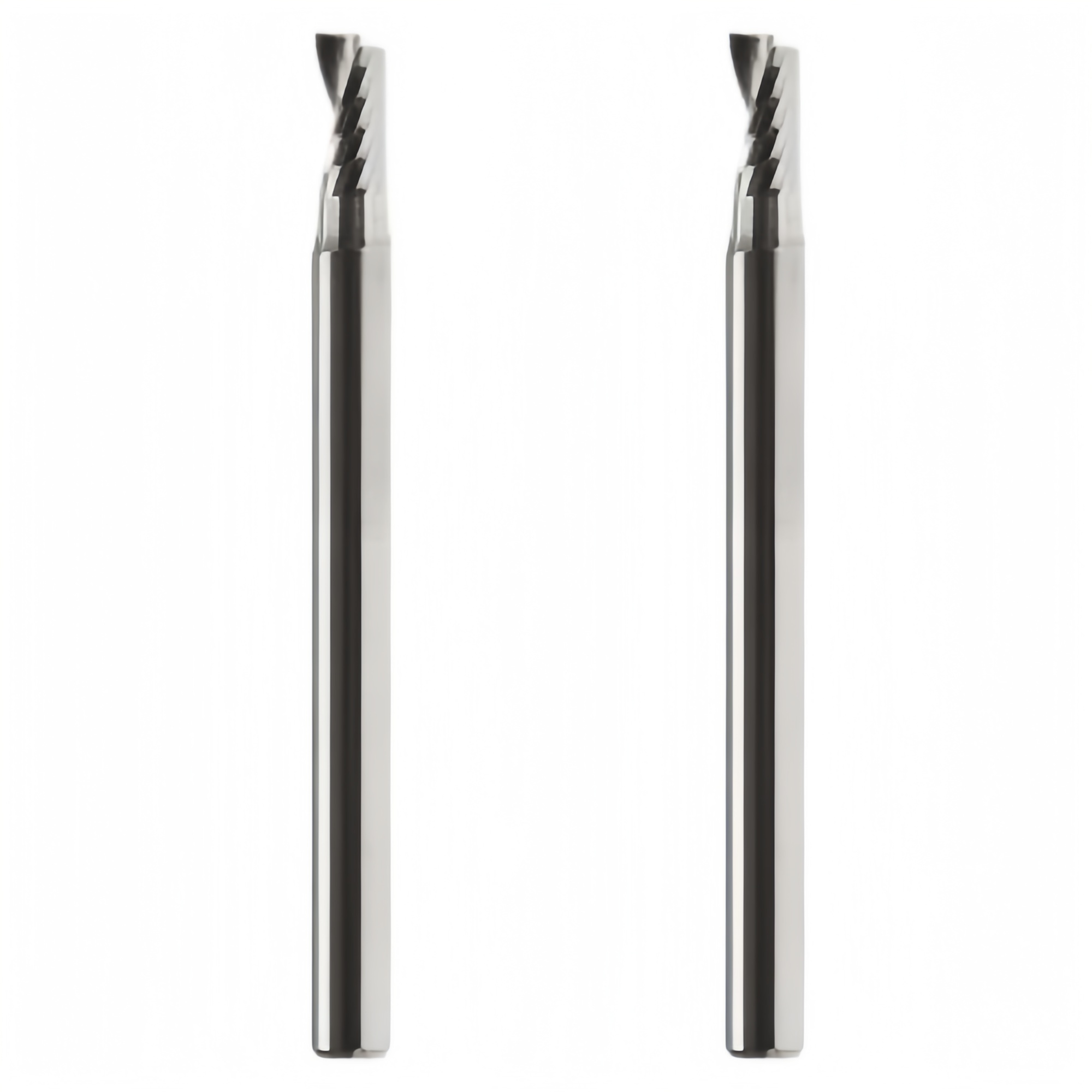

Esko Kongsberg Bit-Mus03-3006-38 G42443432 Multi-Purpose Router Bits

Esko Kongsberg BIT-MUS03-3006-38 (G42443432 / 42443432) is a professional-grade, solid tungsten carbide multi-purpose up-cut single-flute router bit. It is engineered specifically for CNC milling operations on Kongsberg PCS cutting tables equipped with high-speed MultiCut or standard routing tool he…

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus03-3006-38 G42443432 Multi-Purpose Router Bits

Technical Specifications
Cutting Diameter: 3.00 mm
Max Cutting Length: 6.00 mm
Total Length: 38 mm (3.8 cm)
Flute Type: Up-cut, single flute (right-hand helix)
Material Composition: Premium solid tungsten carbide

Material Compatibility

This multi-purpose bit is optimized to perform reliably across a diverse material spectrum:

Metals & Composites: Aluminium sheets and Aluminium Composite Materials (ACM / Dibond).

Plastics: Acrylic (PMMA), Polycarbonate (PC), PETG, Polypropylene (PP), and Expanded PVC.

Wood Products: MDF, plywood, and solid wood varieties.

Tool Head & Machine Compatibility

To operate this 3mm bit on an Esko Kongsberg digital cutting system, it must be paired with specific high-speed tooling units:

High Power Milling Unit (HPMU)

High Speed Milling Unit (HSMU)

MultiCUT / MultiCUT-HP tool heads

Equivalent Alternative Part Numbers

If sourcing direct factory replacements or third-party equivalents, the following references map to this specific bit layout:

Kongsberg : SKU 42443432

Replaces Zund R74 / 3910755)

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
