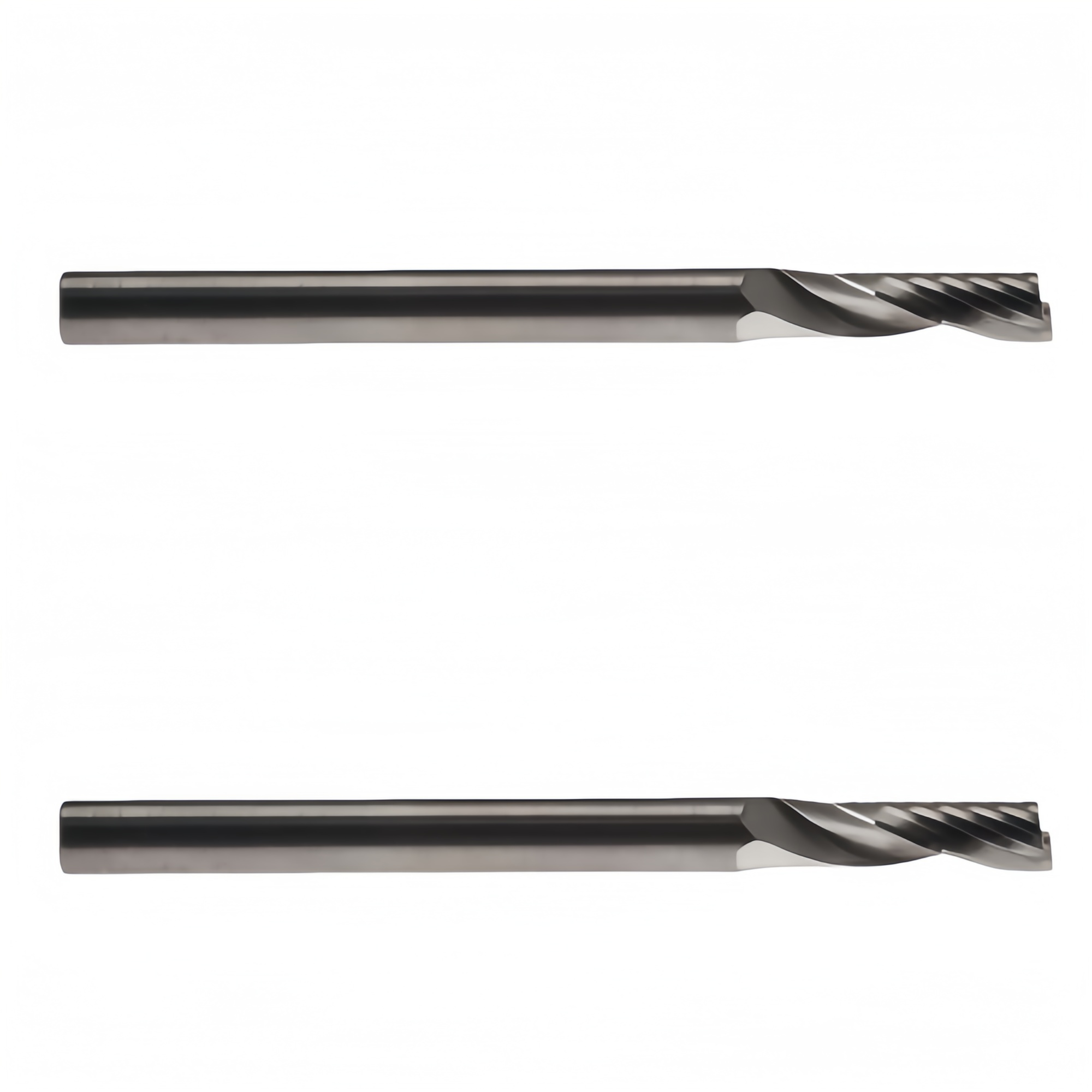

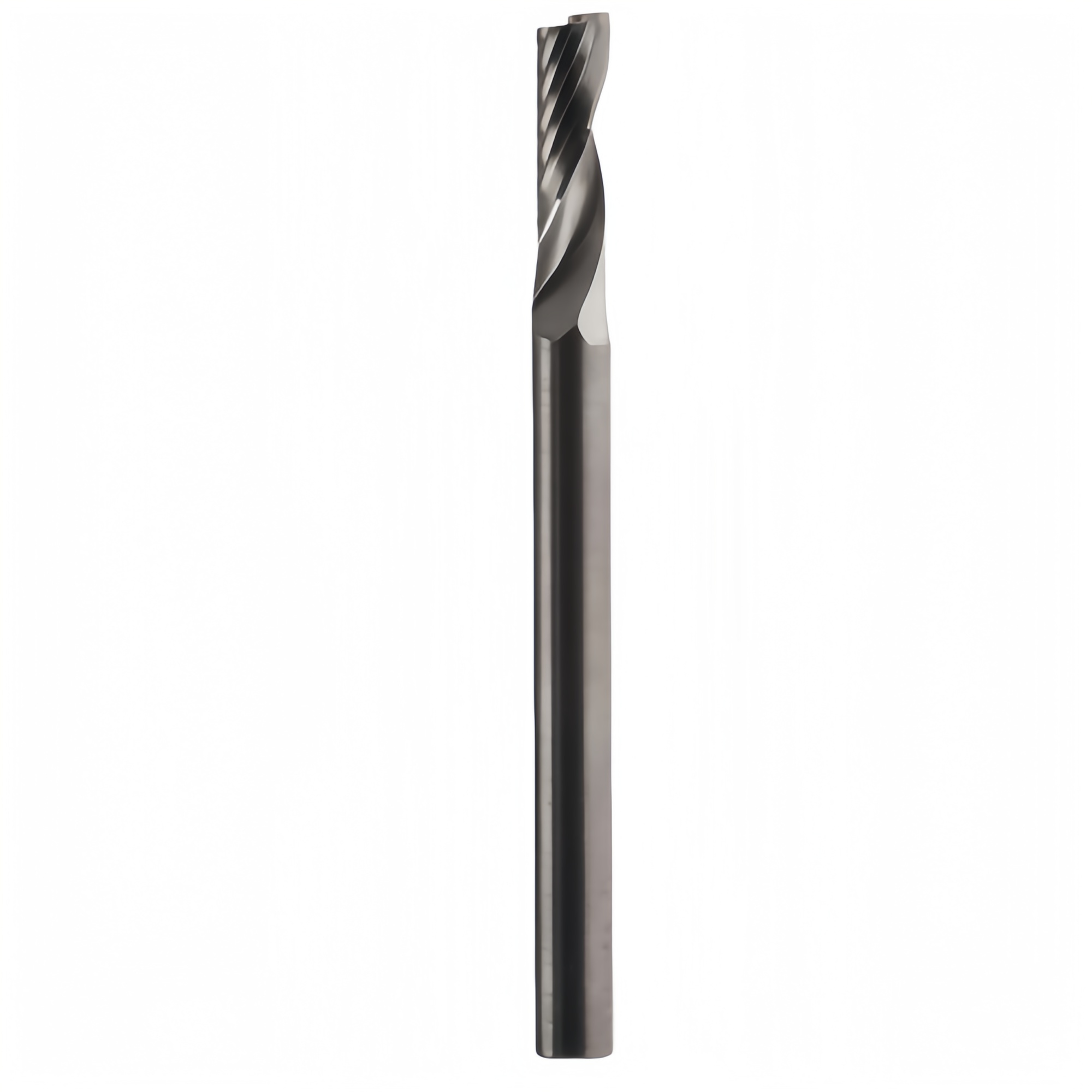

Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits

Esko Kongsberg BIT-MUS03-3011-38 (G42443440) is an industrial tungsten carbide milling and router bit engineered for high-precision digital cutting tables. It functions as a multi-purpose, up-cut, single-flute end mill tool designed to evacuate chips efficiently upward during heavy-duty cutting oper…

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus03-3011-38 G42443440 Tungsten Carbide Milling And Router Bits

Technical Specifications
The structural architecture of the tool optimizes high-speed spindle performance for precision depth cuts.
Shank Diameter (D): 3 mm
Cutting/Tip Diameter (d): 3 mm
Total Length (L): 38 mm
Maximum Cutting Thickness (M): 6 mm
Flute Geometry: Single flute, up-cut spiral
Composition: Solid tungsten carbide steel (uncoated)
Substrate Compatibility
The multi-purpose geometry clears chips quickly from the cutting channel, preventing melting, welding, or edge fracturing on standard production materials.
Metals: Thin-gauge aluminium sheets and Aluminium Composite Materials (ACM / Dibond).
Plastics: Cast/extruded acrylics, polycarbonates, and foamed PVC (Forex).
Wood-Based Media: Medium-Density Fibreboard (MDF), natural hardwoods, and plywood.

Hardware Compatibility & Tooling Requirements
To run this 3 mm shaft bit safely on an industrial digital cutting system, specific high-speed tool heads and chucks are required.
Approved Tool Heads: Compatible with the Kongsberg High Frequency Solid Milling Unit (HSMU) and the MultiCut (1kW) tool stations.
Mandatory Component: Requires an Ibag-compatible precision chuck adapter (typically part code 42444083) to lock the 3 mm shank into standard 6 mm or 8 mm collet spindles safely.
Calibration: Tool changes require standard surface mapping calibration via the built-in Kongsberg X-Pad system to protect the cutting underlayment matrix.
