Esko Kongsberg Bit-Mus06-2006-50 G42437913 Spiral Milling Router Bits

Esko Kongsberg BIT-MUS06-2006-50 (G42437913 / 42437913) is a professional-grade, multi-purpose, up-cut, single-flute solid tungsten carbide spiral milling and router bit. It is engineered specifically for high-performance digital flatbed cutting tables, allowing clean material extraction via its upw…

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus06-2006-50 G42437913 Spiral Milling Router Bits

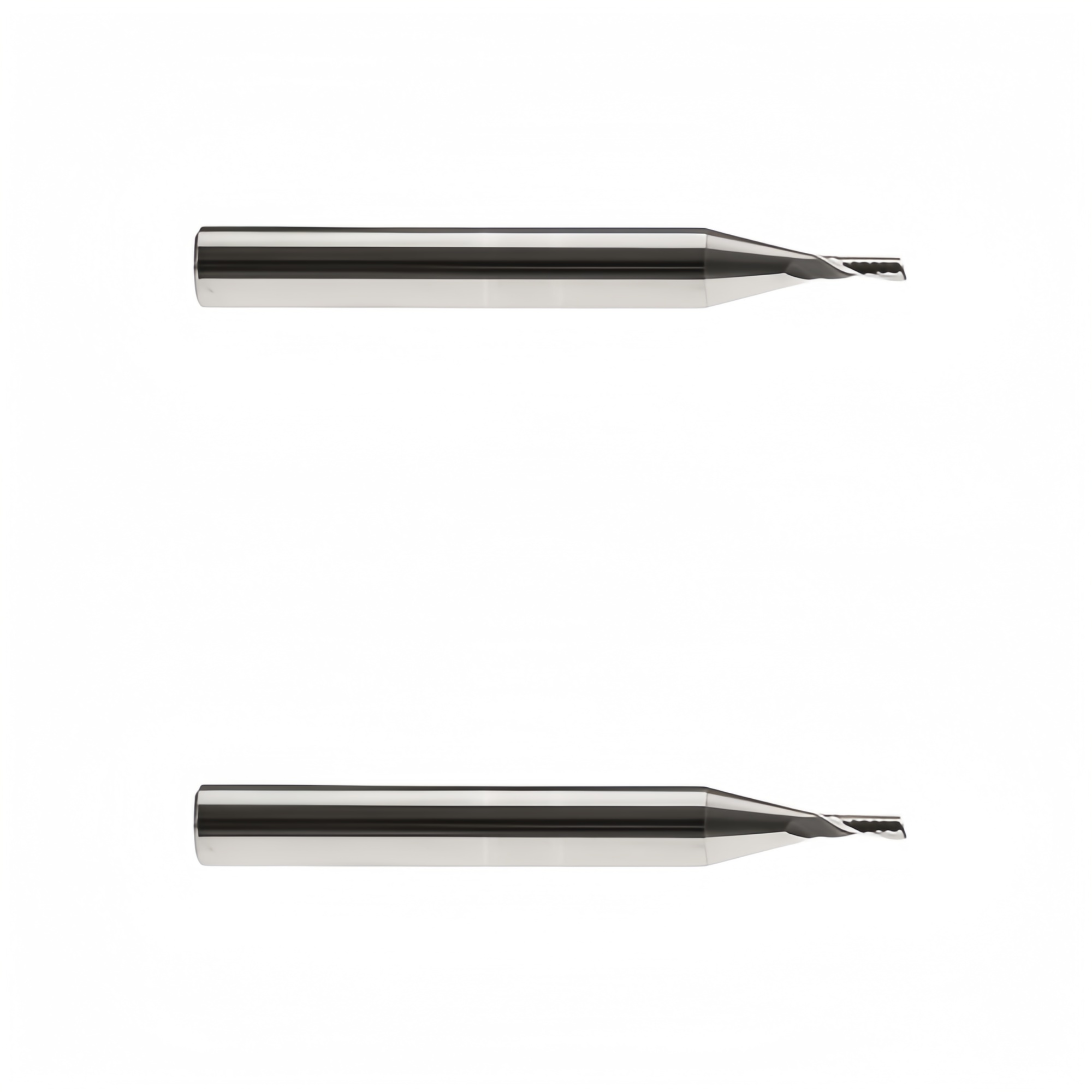

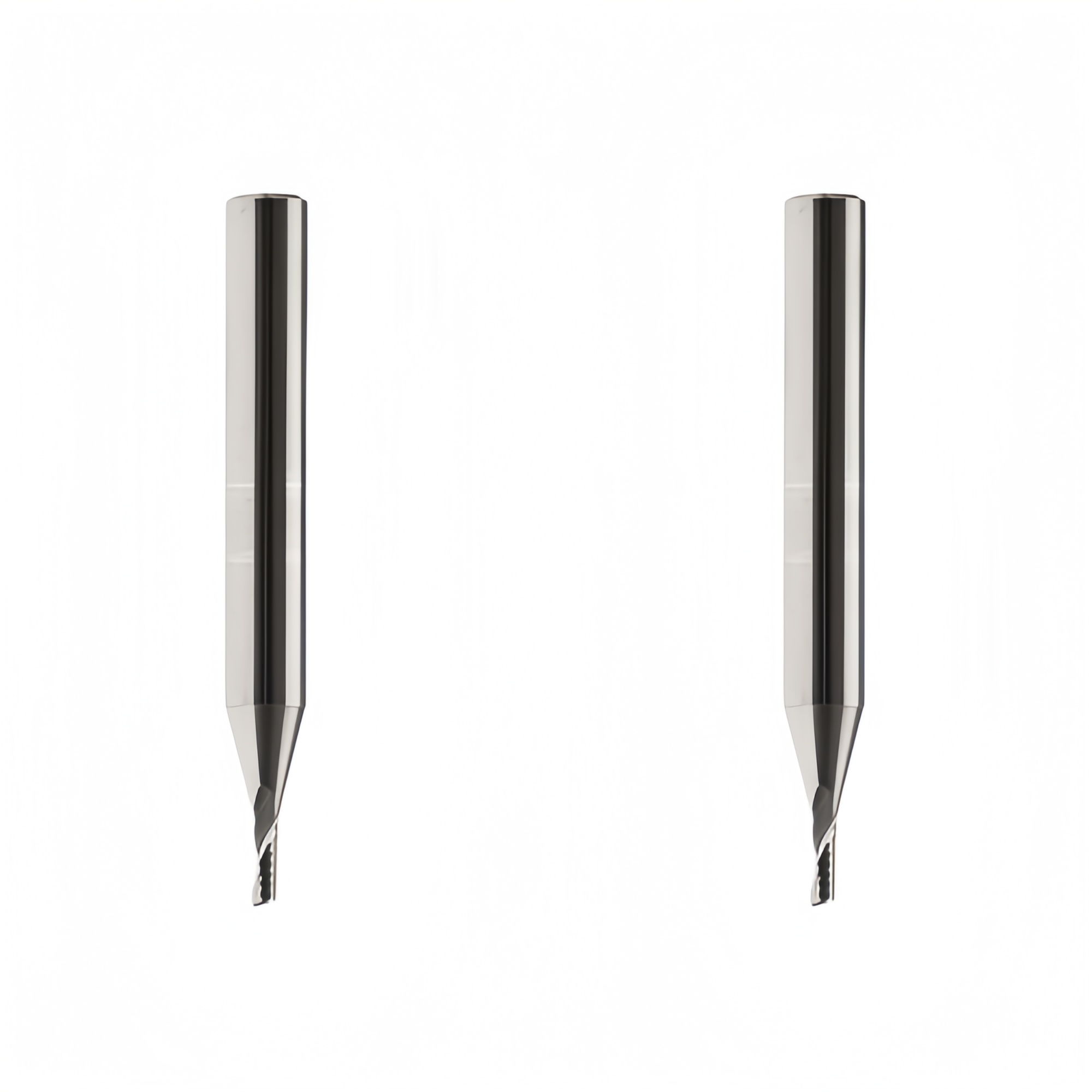

The Esko Kongsberg part number G42437913 (also referenced as BIT-MUS06-2006-50) is a multi-purpose, up-cut, single-flute solid tungsten carbide spiral milling router bit designed for digital flatbed cutting tables.

Technical Specifications
Shank Diameter (D): 6.0 mm
Tip Diameter (d): 2.0 mm
Total Length (L): 50 mm
Maximum Cutting Thickness (M): 5.0 mm
Geometry: Single flute, spiral up-cut
Recommended Materials
This bit is engineered for precision milling on materials under 5mm in thickness, specifically:
Foamed PVC / PS: Forex, Sintra
Lenticular display panels
Protective high-density foam (up to 20mm max depth)

Required Machine Configurations
To use this bit on a Kongsberg PCS table, your hardware must have one of these specific tool heads and chuck pairings:
HSMU / MultiCut (1kW) Ibag: Requires chuck 42444067
MultiCUT (1kW) Kavo: Requires chuck 02721314
HPMU (3kW) / MultiCUT HP (3kW): Requires chuck 42454728
Standard Multicam Routers: Requires a standard 6mm collet
