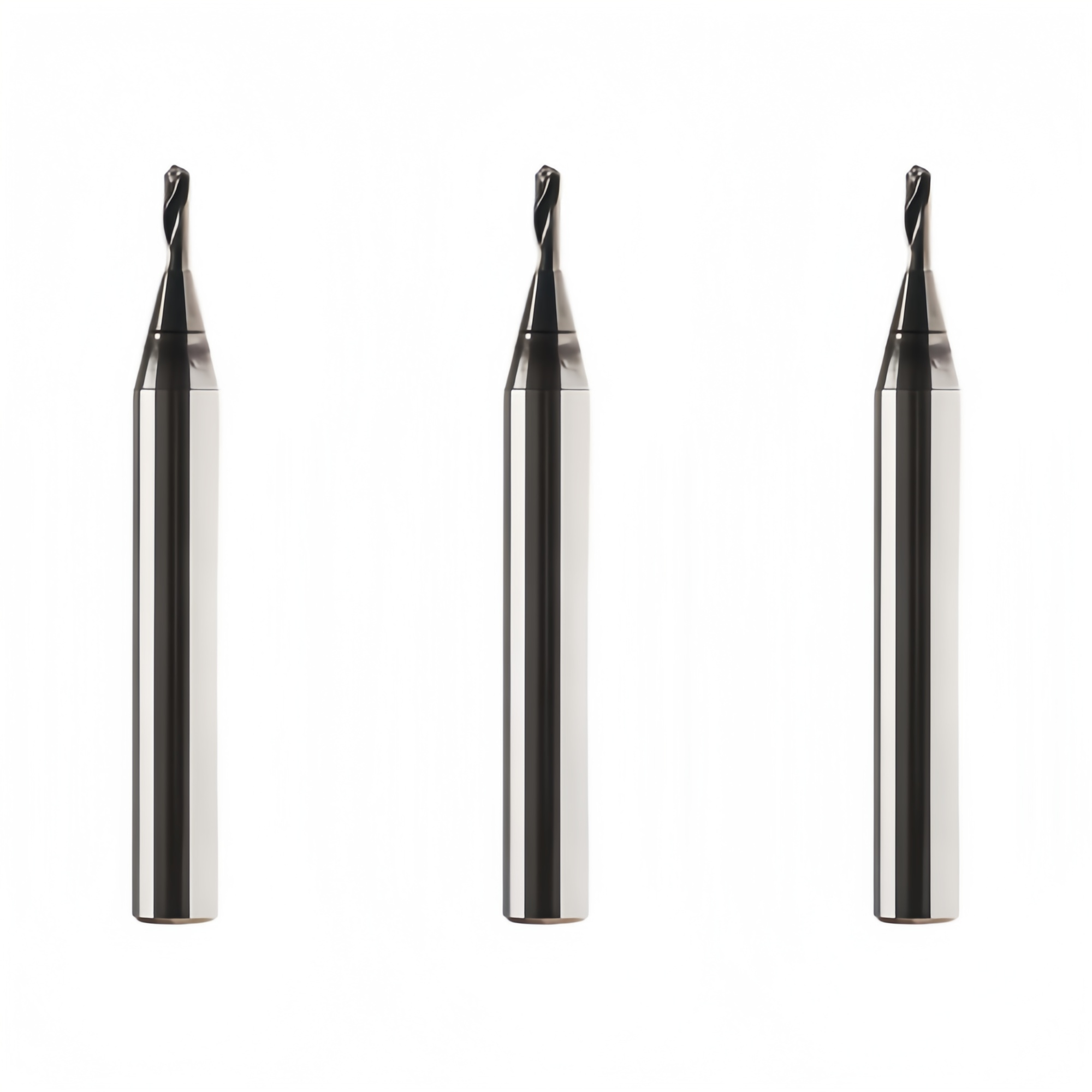

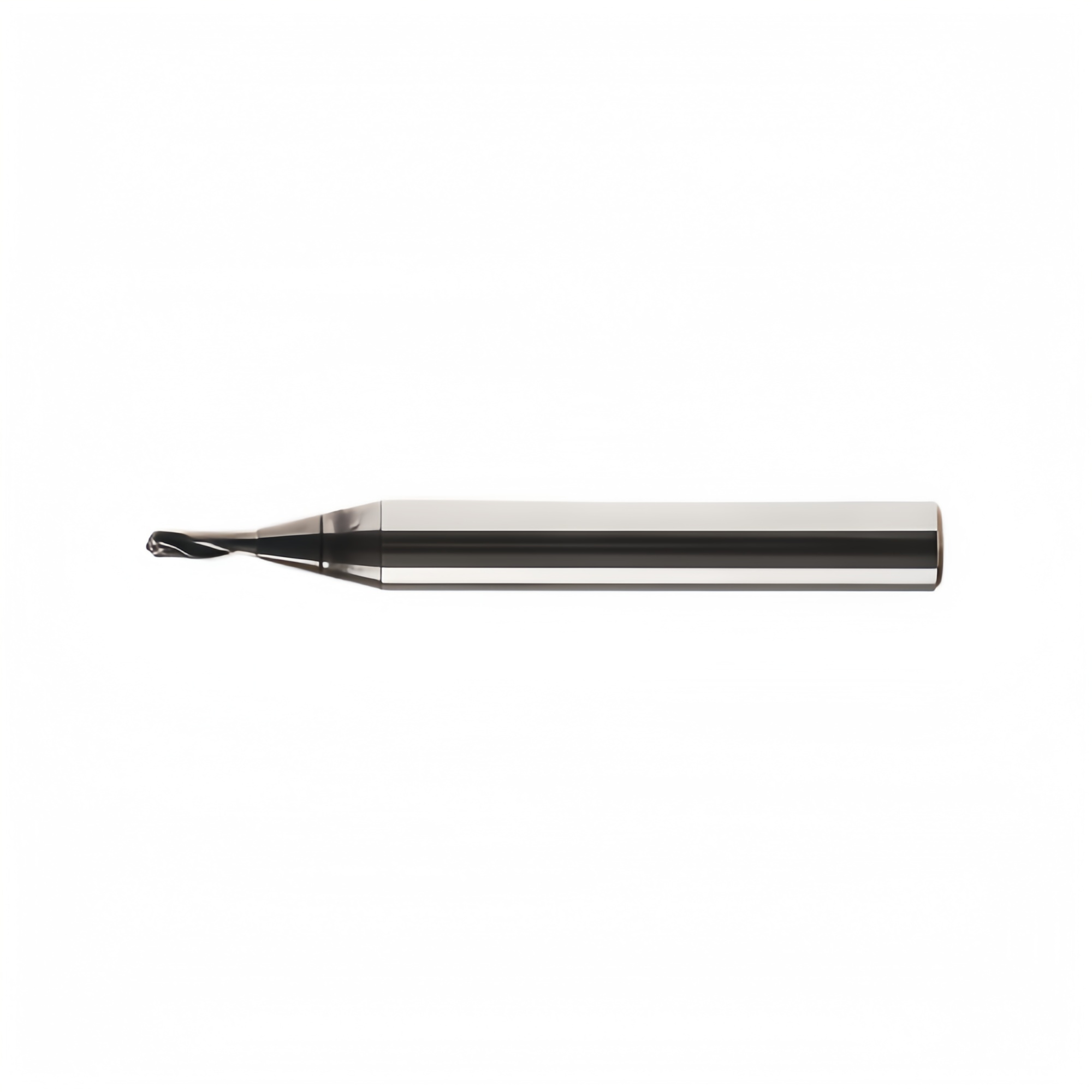

Esko Kongsberg BIT-MUS06-2006-50C1 G42451096 Coated Milling & Router Bits Replacement

Esko Kongsberg BIT-MUS06-2006-50C1 (G42451096) is an authentic, high-performance solid tungsten carbide milling and router bit. It is specifically engineered for digital flatbed cutting tables manufactured by Kongsberg Precision Cutting Systems. It belongs to the 6mm multi-purpose series and stands …

Request A Quote

Description
Related Products

Esko Kongsberg BIT-MUS06-2006-50C1 G42451096 Coated Milling & Router Bits Replacement

Technical Specifications
The part number uses Kongsberg's structured coding system to define its exact physical characteristics:
Shank Diameter (D): 6.0 mm
Cutting Edge/Tip Diameter (d): 2.0 mm
Maximum Material Cutting Thickness: 5.0 mm
Maximum Flute Length / Cut Depth (M): 6.0 mm
Total Tool Length (L): 50 mm
Geometry / Flutes: Single-flute (Z1), up-cut spiral design
Coating Type: C1 coating, applied to reduce heat buildup and increase tool longevity when routing abrasive substrates.

Material Compatibility
This multi-purpose bit is optimized for precision milling and routing across soft metals and specialized graphics materials under 5mm in depth, including:
Foamed PVC and PS sheets (such as Forex and Sintra)
Soft metals like thin aluminum sheets
Lenticular display panels
High-density protective packaging foam

Machine Tool Compatibility
To run this 6mm shank bit on a Kongsberg digital cutting system, it must be paired with an appropriate collet/chuck configuration depending on the installed tool head:
MultiCUT / HSMU (1kW Ibag Spindle): Requires chuck part number 42444067.
MultiCUT (1kW Kavo Spindle): Requires chuck part number 02721314.
HPMU / MultiCUT-HP (3kW High-Power Spindle): Requires chuck part number 42454728.
