Esko Kongsberg Bit-Mus06-3006-50c1 G42451104 Coating Router Bit For Kongsberg Cutting Systems

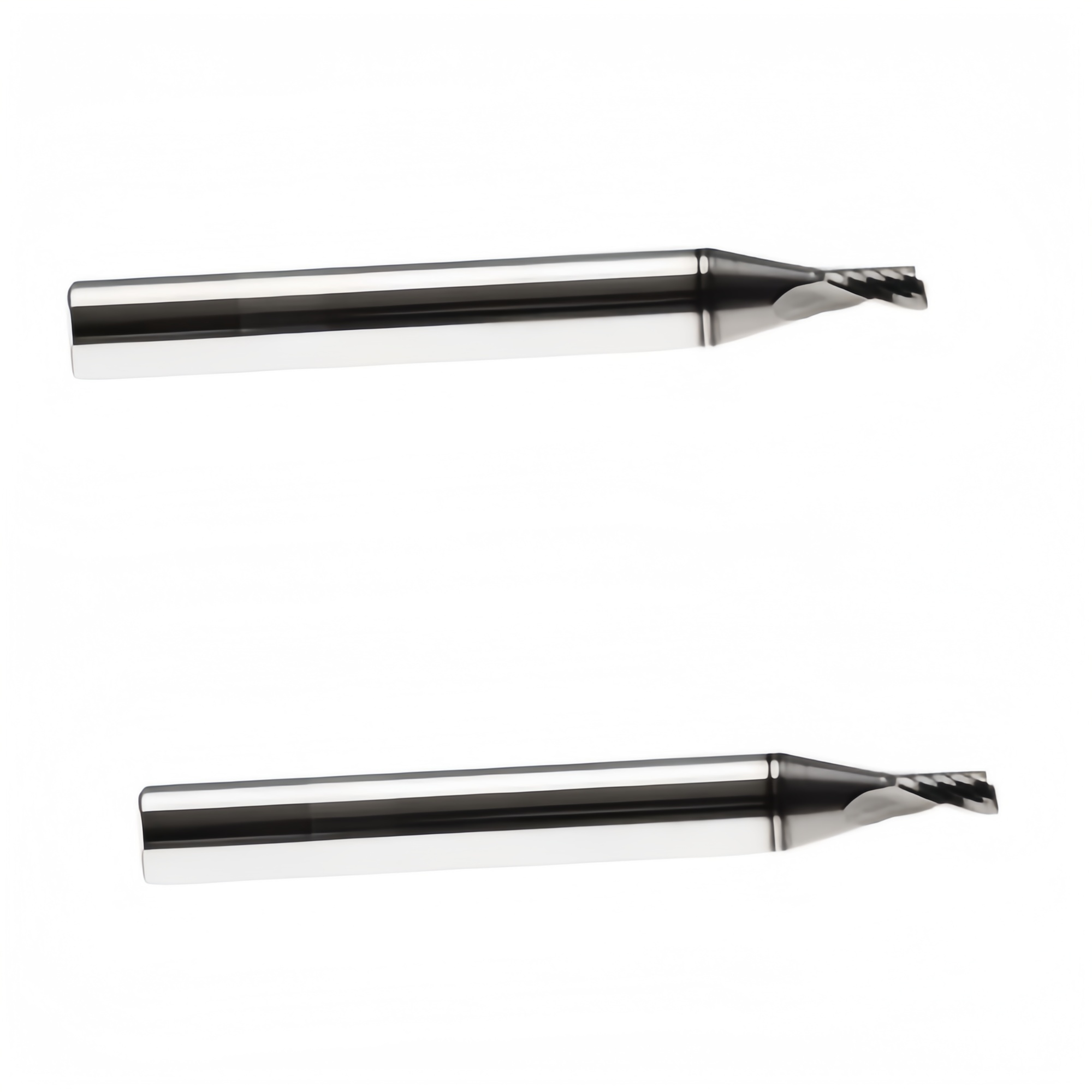

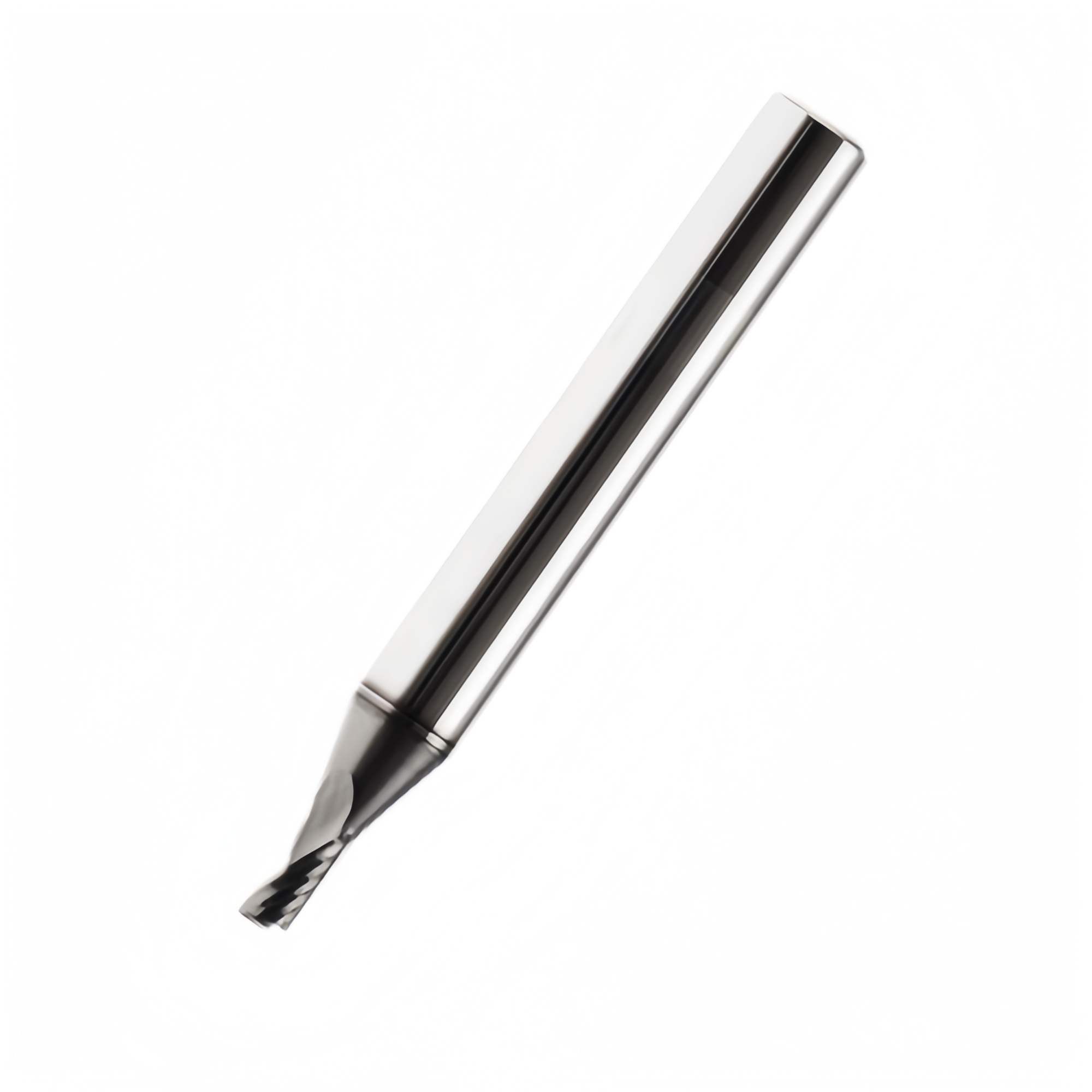

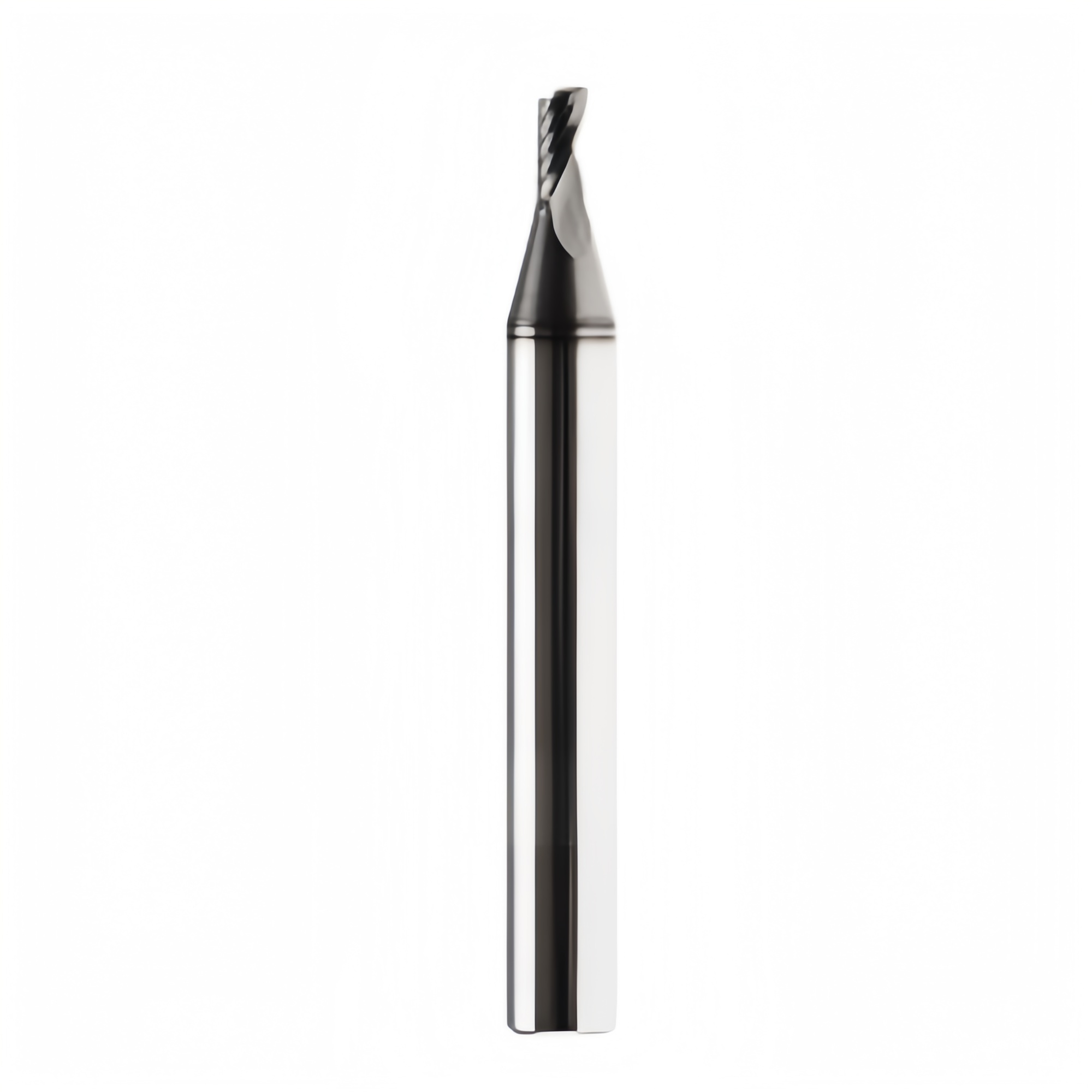

Esko Kongsberg BIT-MUS06-3006-50C1 ( G42451104 or 42451104) is a premium, solid carbide multi-purpose up-cut router bit designed for Kongsberg Precision Cutting Systems. It features a specialized "rainbow" multielement multilayered coating that significantly minimizes heat buildup and enhances wear …

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Mus06-3006-50c1 G42451104 Coating Router Bit For Kongsberg Cutting Systems

Technical Specifications
Cutting Edge Diameter: 3 mm
Shank Diameter: 6 mm
Cutting Depth: Optimized for materials up to 5 mm to 8 mm thick
Flute Design: Single O-Flute (Z1), right-hand spiral (up-cut) for efficient chip removal
Coating: Specialized multi-element "rainbow" or CKA coating for high wear resistance and improved tool life

Material Compatibility
This bit is a "Special Variety" designed specifically for tougher or multi-layered substrates:
Primary Materials: Aluminum and ACM (Aluminum Composite Material) such as Dibond
Secondary Materials: Plastics (Acrylic, PET, PP, PE), MDF, and foamed PVC (Forex/Sintra)

Operating Recommendations
Esko application data recommends the following baseline settings for this bit when used on Kongsberg C, X, or XL tables:
RPM: 40,000 to 52,000
Feed Speed: 10–30 m/min depending on material thickness (typically 1 pass for 3mm–4mm ACM)

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
