Esko Kongsberg Bit-Mus06-3014-50 G42459537 Milling And Router Bits China

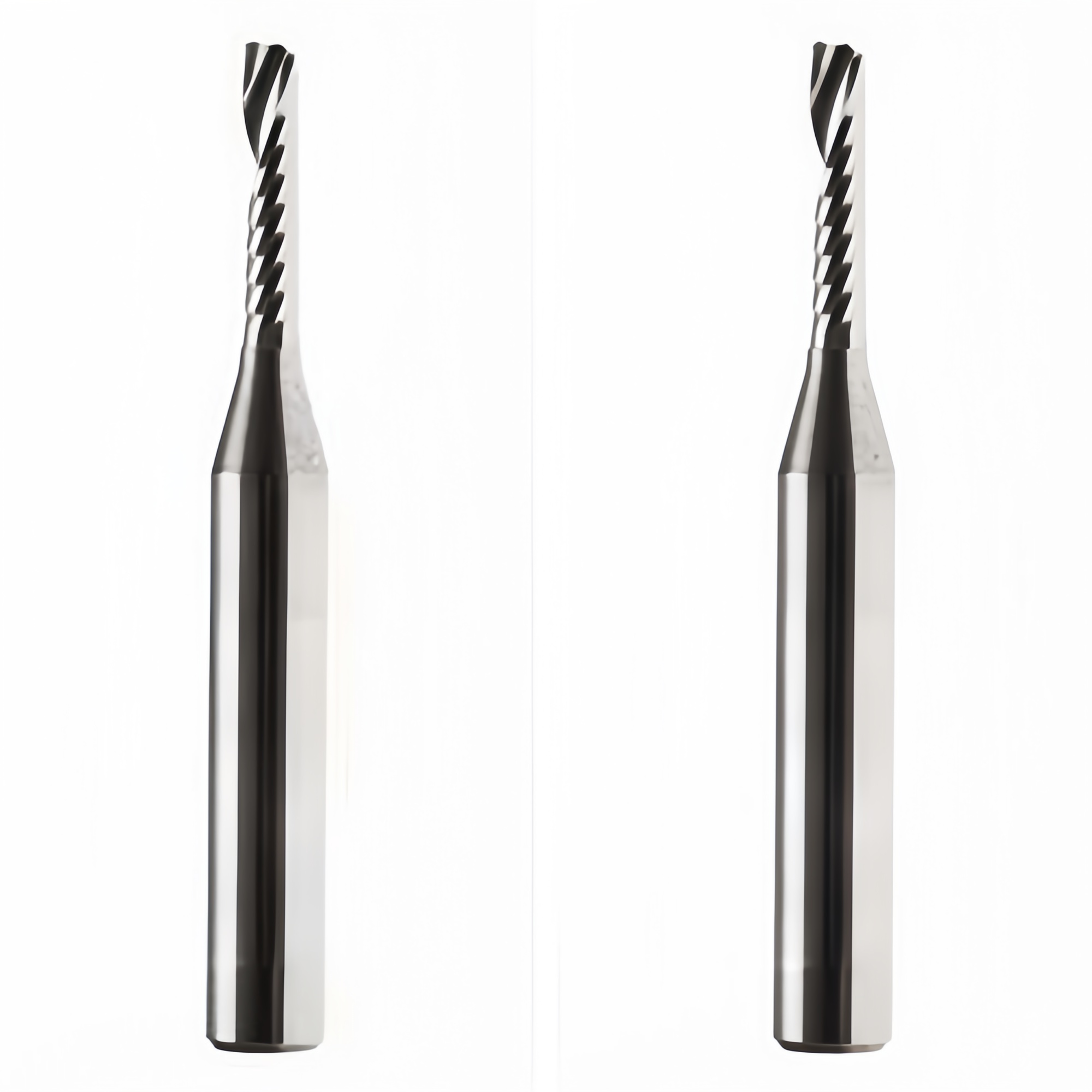

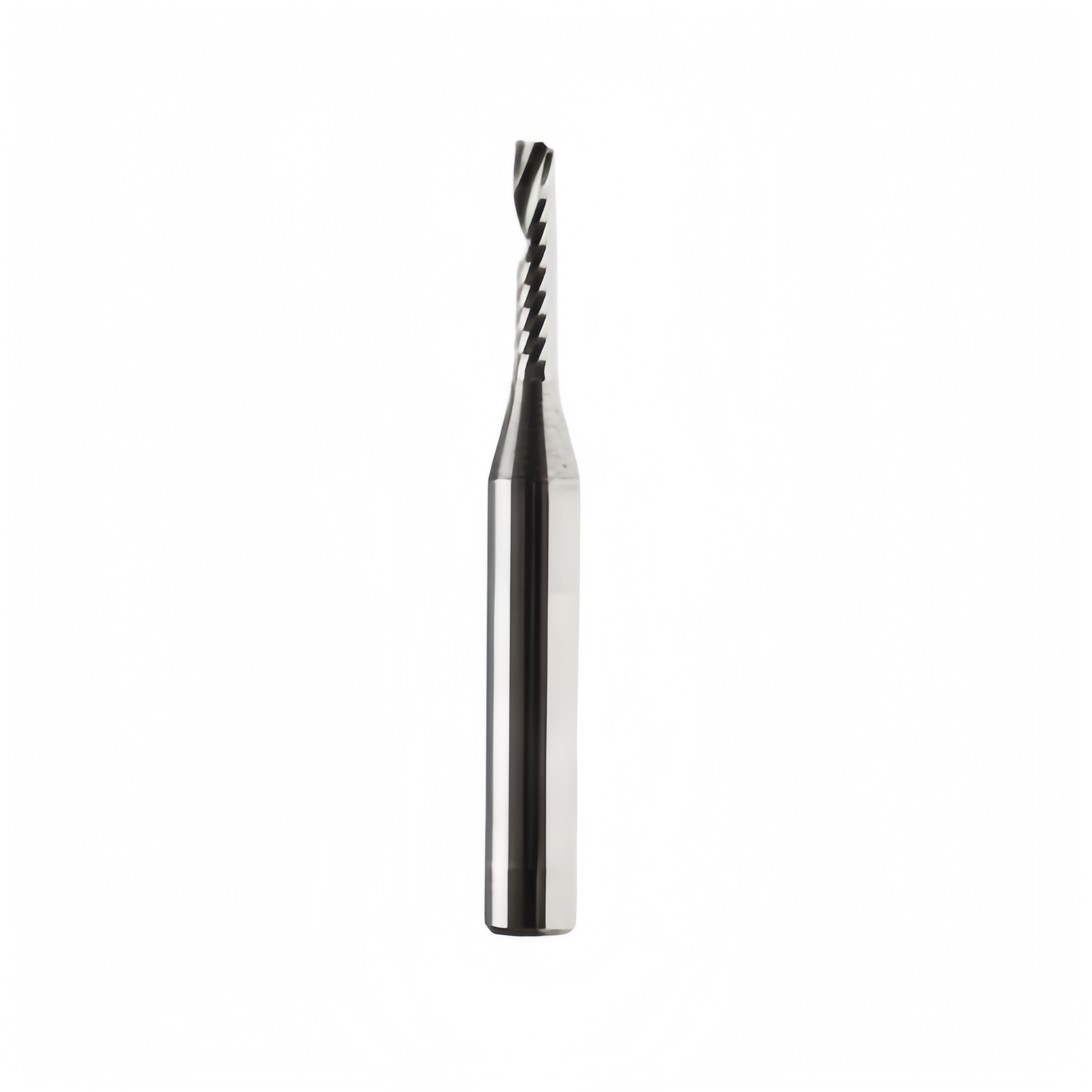

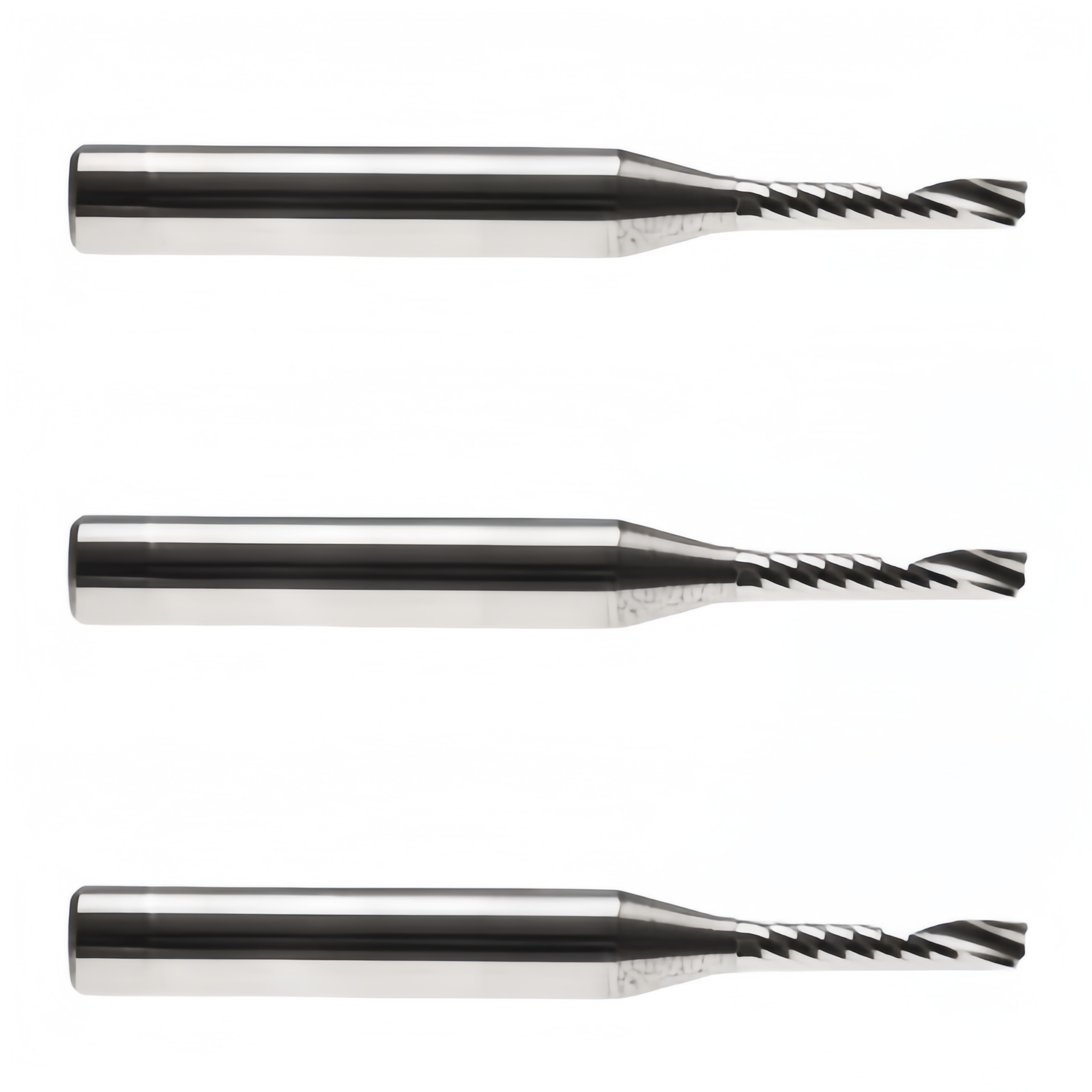

Esko Kongsberg BIT-MUS06-3014-50 (G42459537 or 42459537) is an industrial-grade, single-flute up-cut multi-purpose milling and router bit. It is specifically engineered for high-performance routing on digital flatbed precision cutting tables, such as the Kongsberg Precision Cutting Systems platforms…
Request A Quote
Esko Kongsberg Bit-Mus06-3014-50 G42459537 Milling And Router Bits China
Technical Specifications
The official nomenclature breaks down the structural dimension properties of this solid tungsten carbide tool:
Shank Diameter: 6 mm
Cutting Diameter: 3 mm (indicated by the "30" in the part name)
Flute Length (Cut Depth): 14 mm (indicated by the "14" in the part name), ideal for routing materials up to ½ inch thick.
Overall Length: 50 mm
Geometry: Single-flute, up-cut spiral layout designed to extract debris upwards away from the substrate.
Operational Hardware Compatibility
This tool fits standard 6 mm collet architectures across major industrial plotting platforms. Within the Kongsberg ecosystem, it is designed for:
High-Power Milling Unit (HPMU)
MultiCUT-HP tool heads
Application & Material Yields
The up-cut spiral design rapidly clears out waste material during high-RPM operations, protecting both the tool edge and the workpiece from heat-induced melting or weld-back. This makes it highly versatile across several broad industries:
Metals: Aluminum sheets and Aluminum Composite Materials (ACM / Dibond).
Plastics: Acrylic, Polycarbonate, and Foamed PVC (Forex/Sintra).
Woods: Solid wood, Plywood, and Medium-Density Fibreboard (MDF).
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
