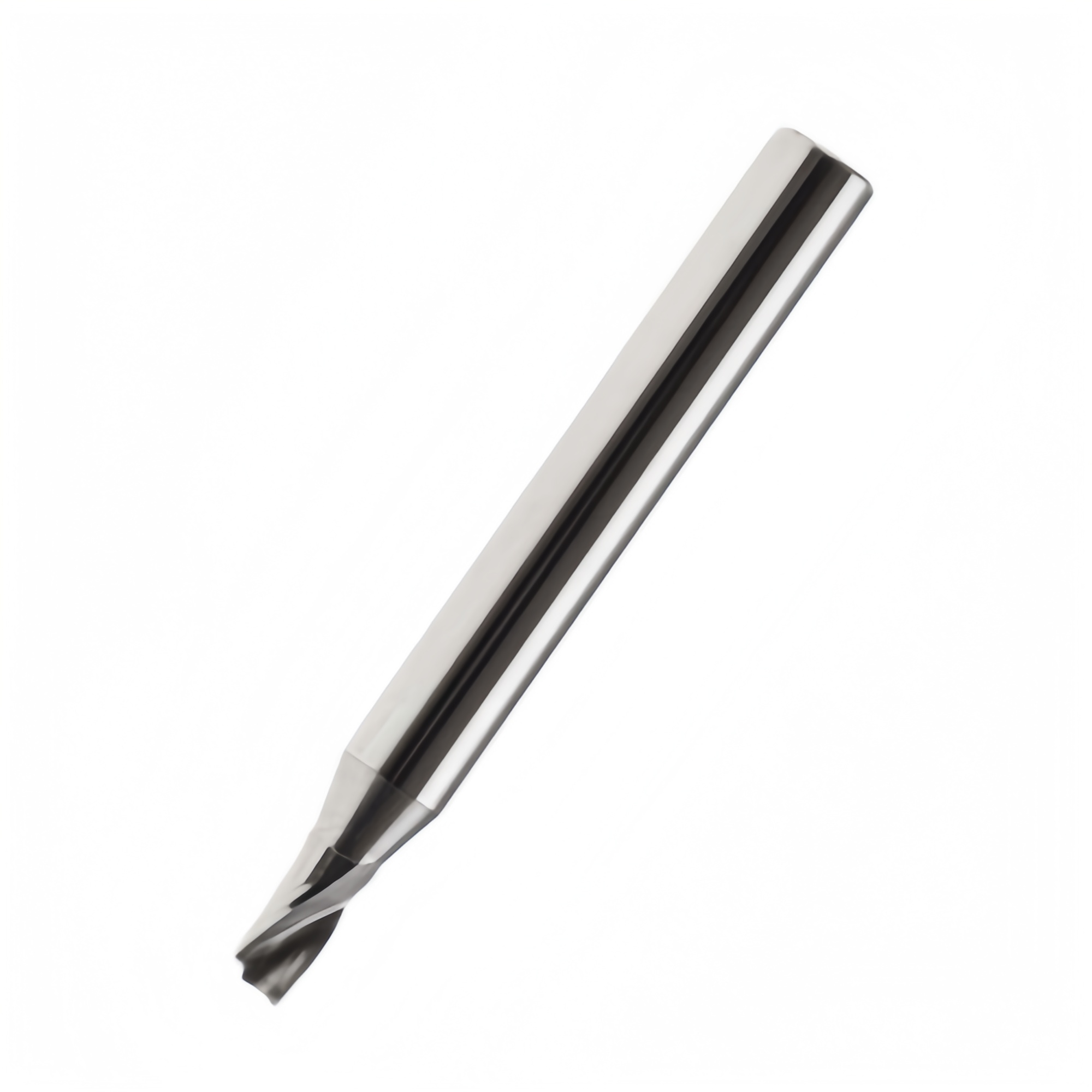

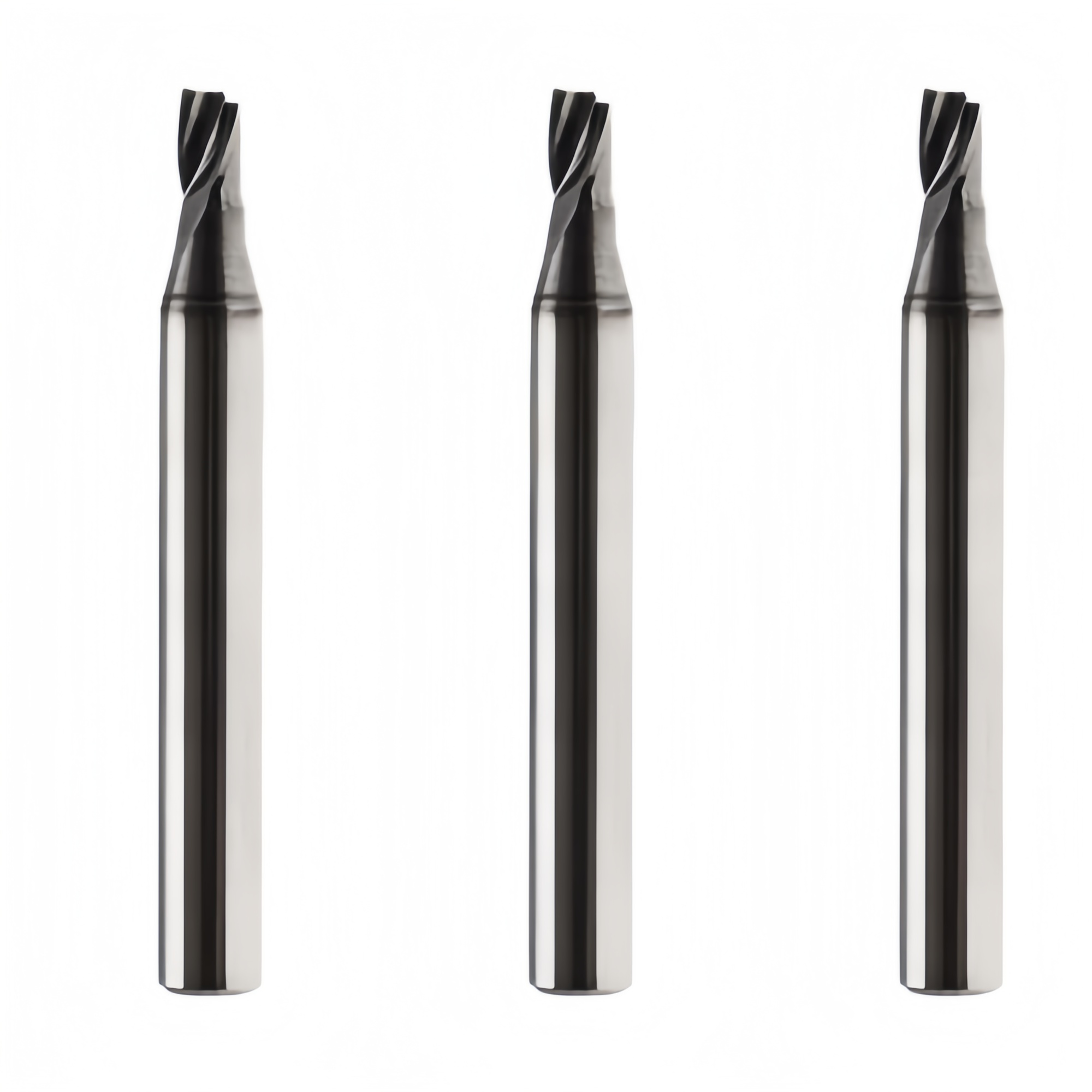

Esko Kongsberg Bit-Mus06-4006-50c1 G42451112 Coated Milling And Router Bit
Esko Kongsberg BIT-MUS06-4006-50C1 (G42451112) is a professional, high-performance coated solid tungsten carbide milling and router bit. It shares the identical structural architecture as the standard 4006-50 profile but introduces a specialized C1 surface coating designed to vastly improve tool lon…
Request A Quote
Esko Kongsberg Bit-Mus06-4006-50c1 G42451112 Coated Milling And Router Bit
Technical Specifications
Part Number: G42451112
Bit Code: BIT-MUS06-4006-50C1
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Flute Length (Max Cut Depth): 6.0 mm
Total Length: 50.0 mm
Geometry: Single Flute (Z1), Up-Cut
Material: Solid Tungsten Carbide (TC) with C1 Performance Coating
Compatible Hardware
This bit is fully compatible with Esko Kongsberg 6mm collets and specialized high-speed tool heads, such as:
High-Power Milling Unit (HPMU)
MultiCUT-HP (High Power)
MultiCUT
Benefits of the C1 Coating
Thermal Barrier: Reduces heat transfer to the bit, preventing material melting and gumming.
Low Friction: Lowers tool wear and resists material welding (especially with aluminum and acrylics).
Extreme Longevity: Outlasts standard uncoated bits (like the G42443564) when cutting high-wear substrates.
High Rigidity: The short 6.0 mm flute length maximizes stability and eliminates tool deflection.
Primary Applications
Aluminum Composites (ACM): Exceptional for Dibond and Alucobond routing.
Non-Ferrous Metals: Thin solid aluminum sheets.
Hard Plastics: Acrylic (PMMA), Polycarbonate, and dense engineering polymers.
NAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
Part Number: G42451112
Bit Code: BIT-MUS06-4006-50C1
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Flute Length (Max Cut Depth): 6.0 mm
Total Length: 50.0 mm
Geometry: Single Flute (Z1), Up-Cut
Material: Solid Tungsten Carbide (TC) with C1 Performance Coating
Compatible Hardware
This bit is fully compatible with Esko Kongsberg 6mm collets and specialized high-speed tool heads, such as:
High-Power Milling Unit (HPMU)
MultiCUT-HP (High Power)
MultiCUT
Benefits of the C1 Coating
Thermal Barrier: Reduces heat transfer to the bit, preventing material melting and gumming.
Low Friction: Lowers tool wear and resists material welding (especially with aluminum and acrylics).
Extreme Longevity: Outlasts standard uncoated bits (like the G42443564) when cutting high-wear substrates.
High Rigidity: The short 6.0 mm flute length maximizes stability and eliminates tool deflection.
Primary Applications
Aluminum Composites (ACM): Exceptional for Dibond and Alucobond routing.
Non-Ferrous Metals: Thin solid aluminum sheets.
Hard Plastics: Acrylic (PMMA), Polycarbonate, and dense engineering polymers.
NAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
