Esko Kongsberg Bit-Mus06-4012-50 G42437863 Multi-Purpose Up-Cut Router Bit

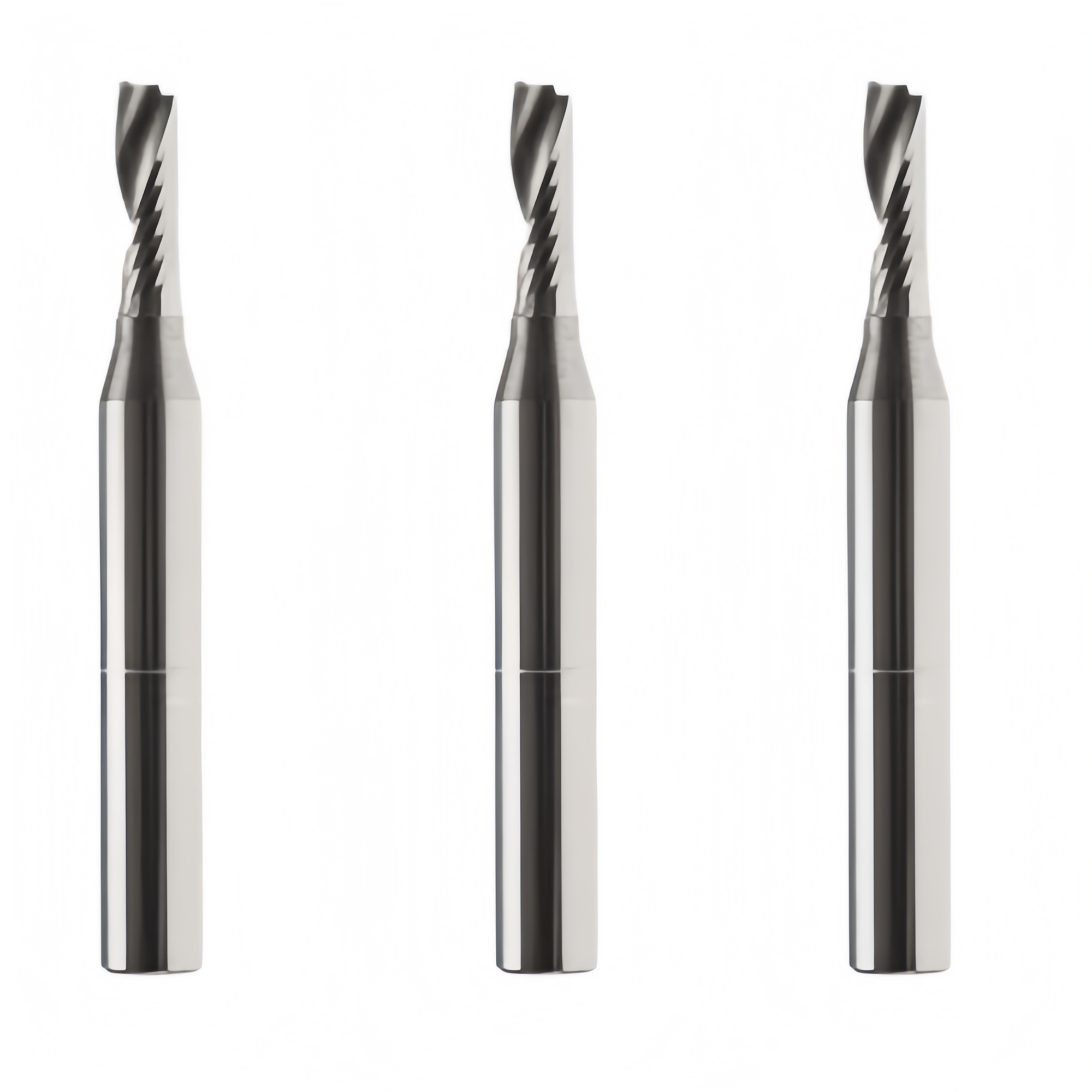

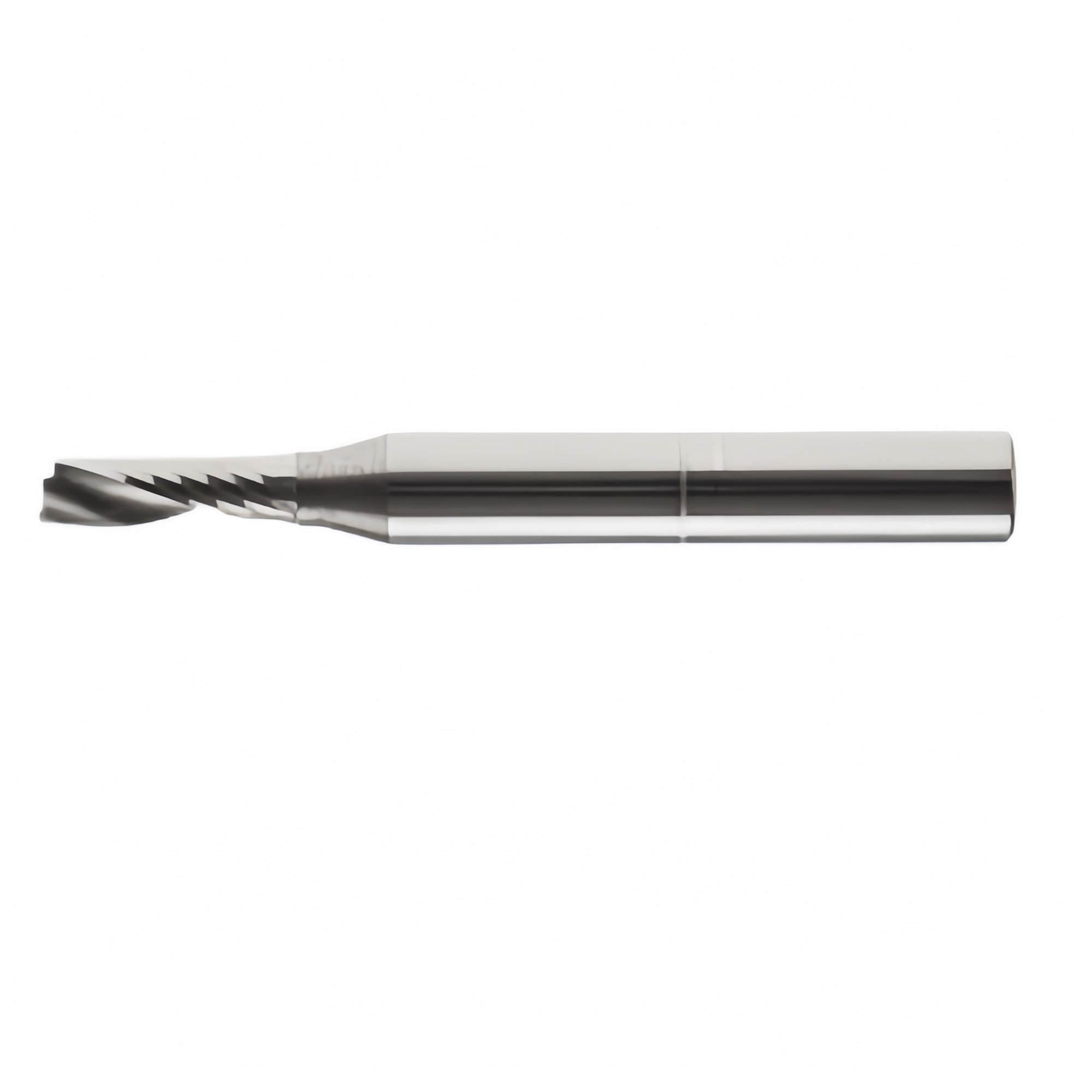

Esko Kongsberg BIT-MUS06-4012-50 (G42437863) is an original, solid tungsten carbide multi-purpose up-cut single-flute router bit. It is specifically engineered for use with Kongsberg digital flatbed cutting tables equipped with the High-Power Milling Unit (HPMU) or MultiCUT-HP tool heads.
Request A Quote
Esko Kongsberg Bit-Mus06-4012-50 G42437863 Multi-Purpose Up-Cut Router Bit
Key Tool Specifications
Type: Multi-purpose up-cut spiral (O-flute geometry).
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Cutting Depth: 12.0 mm to 14.0 mm (depending on OEM or aftermarket version).
Total Length: 50.0 mm
Material: Solid tungsten carbide for high wear resistance.
Primary Material Compatibility
The up-cut spiral design forces chips upward, preventing clogging when milling dense or melting-prone materials:
Metals: Aluminum and Aluminum Composite Materials (ACM, Dibond).
Plastics: Acrylic (Plexiglas), Polycarbonate (Lexan), PVC, PET, and Polystyrene.
Wood: MDF, HDF, plywood, and solid softwoods/hardwoods.
Foams: High-density foamed PVC (Forex, Sintra).
Ordering and Alternatives
Aftermarket Equivalents: High-quality replacements with identical dimensions are manufactured by specialized tooling brands like Shenzhen Oyea Machinery Co., Ltd.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
Type: Multi-purpose up-cut spiral (O-flute geometry).
Shank Diameter: 6.0 mm
Cutting Diameter: 4.0 mm
Cutting Depth: 12.0 mm to 14.0 mm (depending on OEM or aftermarket version).
Total Length: 50.0 mm
Material: Solid tungsten carbide for high wear resistance.
Primary Material Compatibility
The up-cut spiral design forces chips upward, preventing clogging when milling dense or melting-prone materials:
Metals: Aluminum and Aluminum Composite Materials (ACM, Dibond).
Plastics: Acrylic (Plexiglas), Polycarbonate (Lexan), PVC, PET, and Polystyrene.
Wood: MDF, HDF, plywood, and solid softwoods/hardwoods.
Foams: High-density foamed PVC (Forex, Sintra).
Ordering and Alternatives
Aftermarket Equivalents: High-quality replacements with identical dimensions are manufactured by specialized tooling brands like Shenzhen Oyea Machinery Co., Ltd.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
