Esko Kongsberg Bit-Mus06-4022-50 G42443572 Multi-Purpose Spiral Router Bits

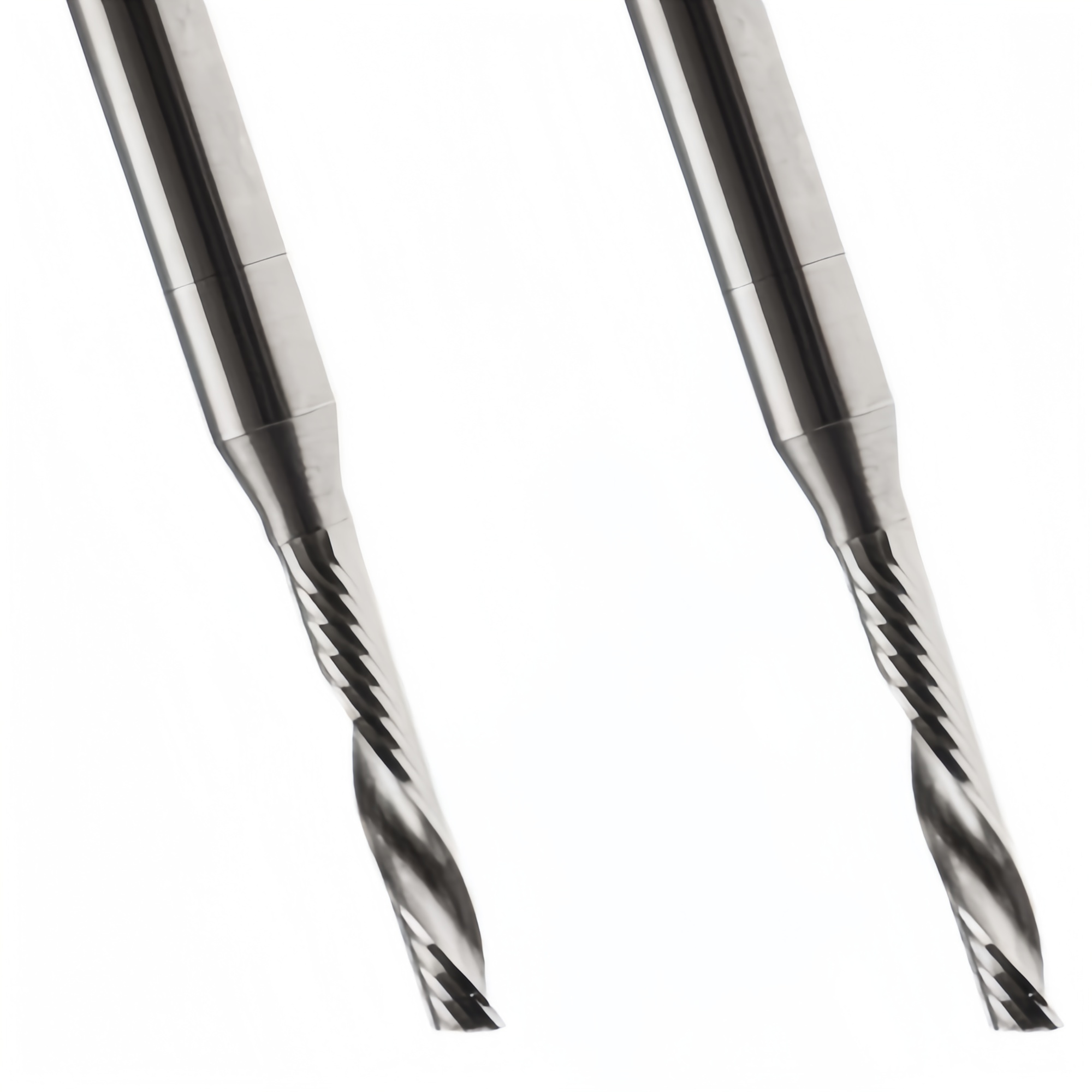

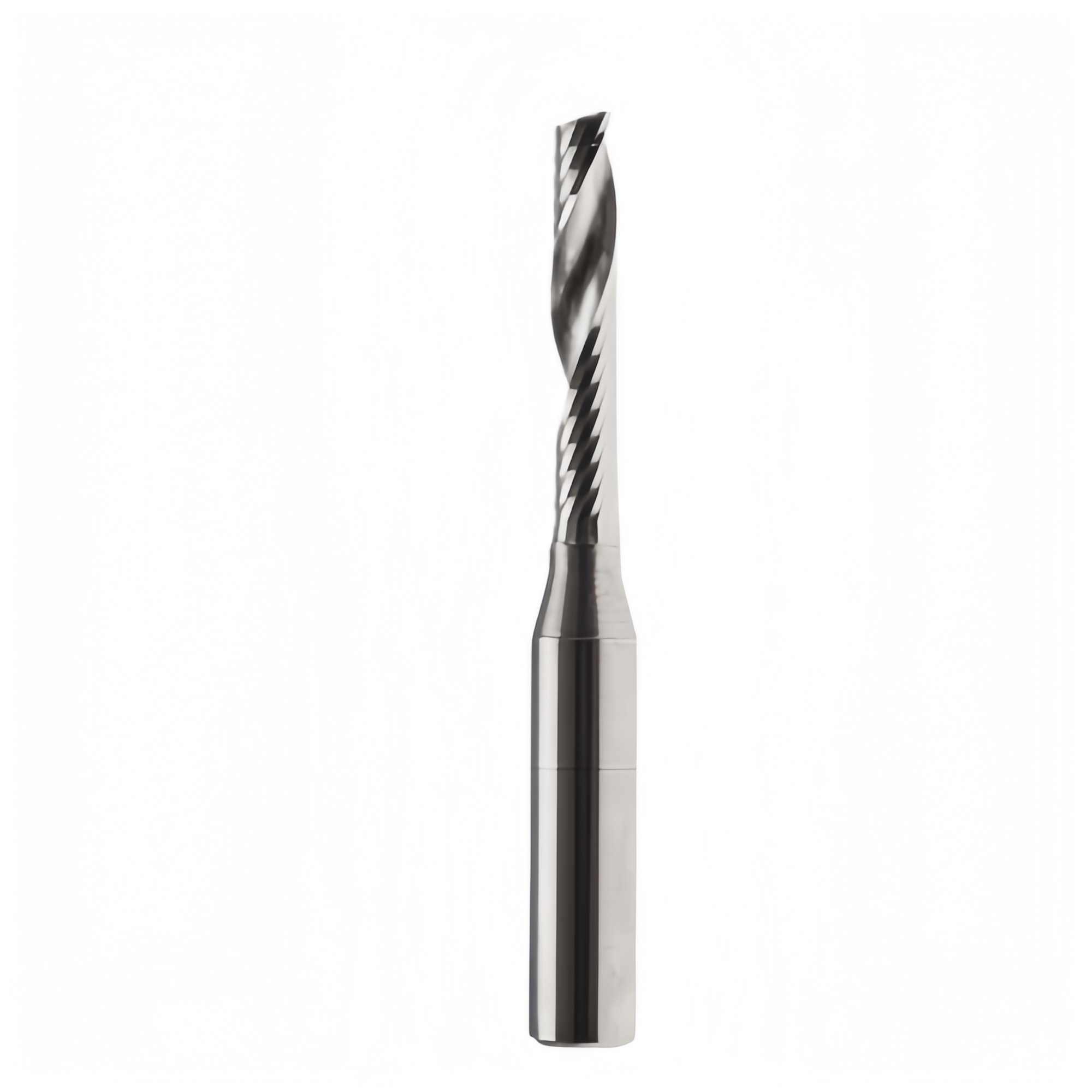

Esko Kongsberg BIT-MUS06-4022-50 (G42443572) is an original, solid tungsten carbide multi-purpose up-cut single-flute spiral router bit. It is specifically designed for high-performance deep milling and profile routing on Kongsberg digital flatbed cutting tables equipped with the MultiCUT-HP or High…
Request A Quote
Esko Kongsberg Bit-Mus06-4022-50 G42443572 Multi-Purpose Spiral Router Bits
Technical Dimensions
Part Number: G42443572 (42443572)
Shank Diameter: 6.0 mm
Cutting Edge Diameter: 4.0 mm
Cutting Flute Length: 22.0 mm (Optimized for routing materials up to 20 mm thick)
Overall Bit Length: 50.0 mm
Geometry & Design Benefits
Single Flute (Z1) "O-Flute" Design: Features one large, open, and polished flute channel. This provides maximum space for large chip removal.
Right-Hand Up-Cut Spiral: Forces debris, plastic curls, and dust aggressively upward. This clears the groove instantly and prevents heat from melting the material back together.
Extended Reach: The 22 mm flute allows for deep, single-pass processing on thick materials where standard 12 mm or 16 mm bits cannot reach.
Cross-Manufacturer Compatibility
This precise tooling geometry is widely standardized across the wide-format digital finishing industry and directly corresponds to:
Zund: Part Number 3910796 (Router Bit R158)
Colex: Part Number T00505
Ideal Material Applications
The single-flute design is optimal for materials that tend to melt or require deep, clean-cut edges:
Thick Plastics & Acrylics: Cast acrylic, polycarbonate, and heavy PVC sheets up to 20 mm.
Foams & Display Boards: High-density foamed PVC (Sintra, Forex), Gatorfoam, and technical packaging foams.
Wood Composites: MDF, plywood, and softwoods.
Aluminum Sandwich Panels: Multi-layer Aluminum Composite Materials (ACM, Dibond).
Deep Routing Best Practices
Vacuum Hold-Down: Because the 22 mm up-cut flute pulls upward with significant force, ensure your table vacuum or clamping pressure is maxed out to prevent thin or flexible sheets from lifting.
Deflection Risk: Because the cutting diameter is 4.0 mm but the length is an extended 22 mm, this bit is more susceptible to snapping under extreme sideways force compared to shorter bits. Avoid overly aggressive feed rates on very hard materials like thick polycarbonate.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
