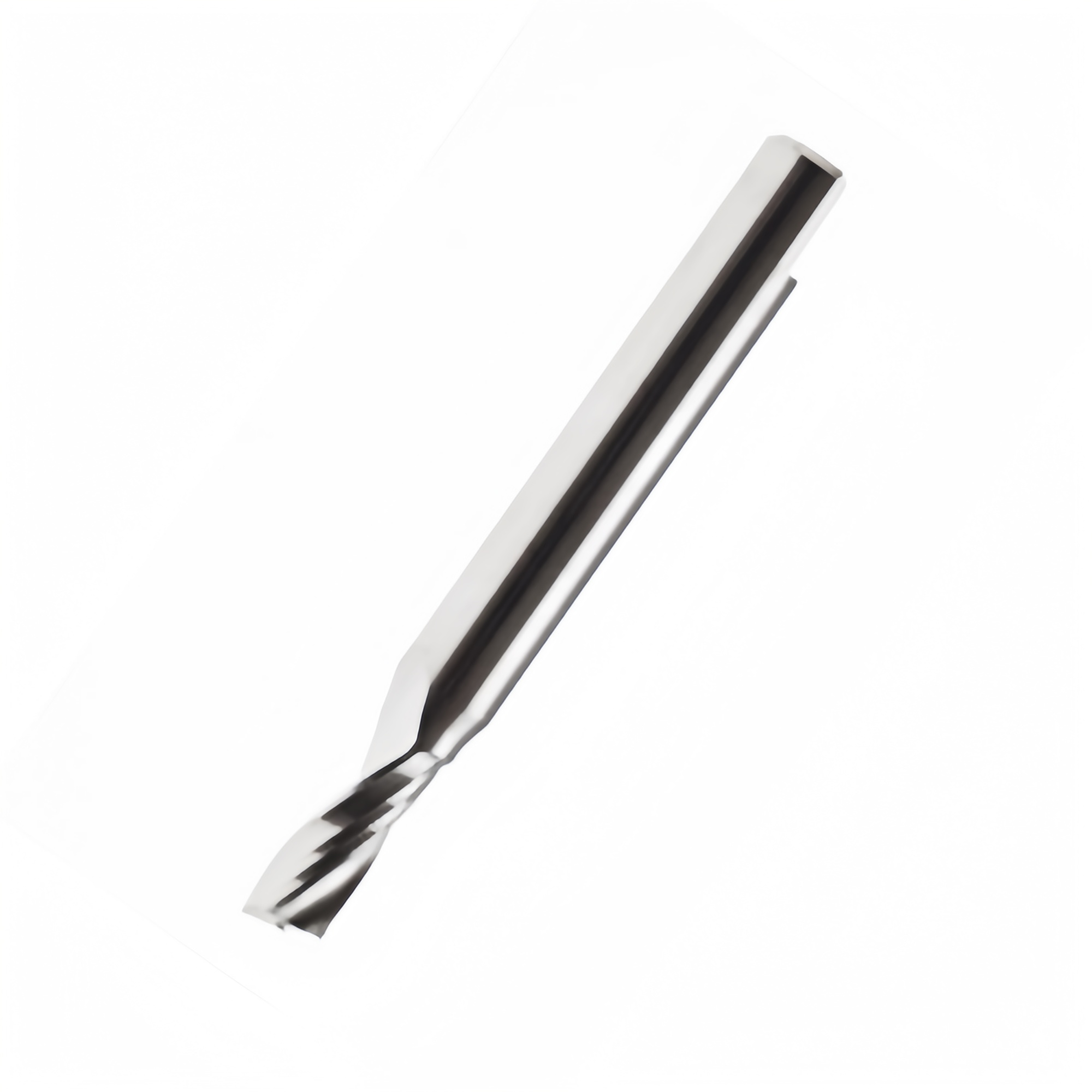

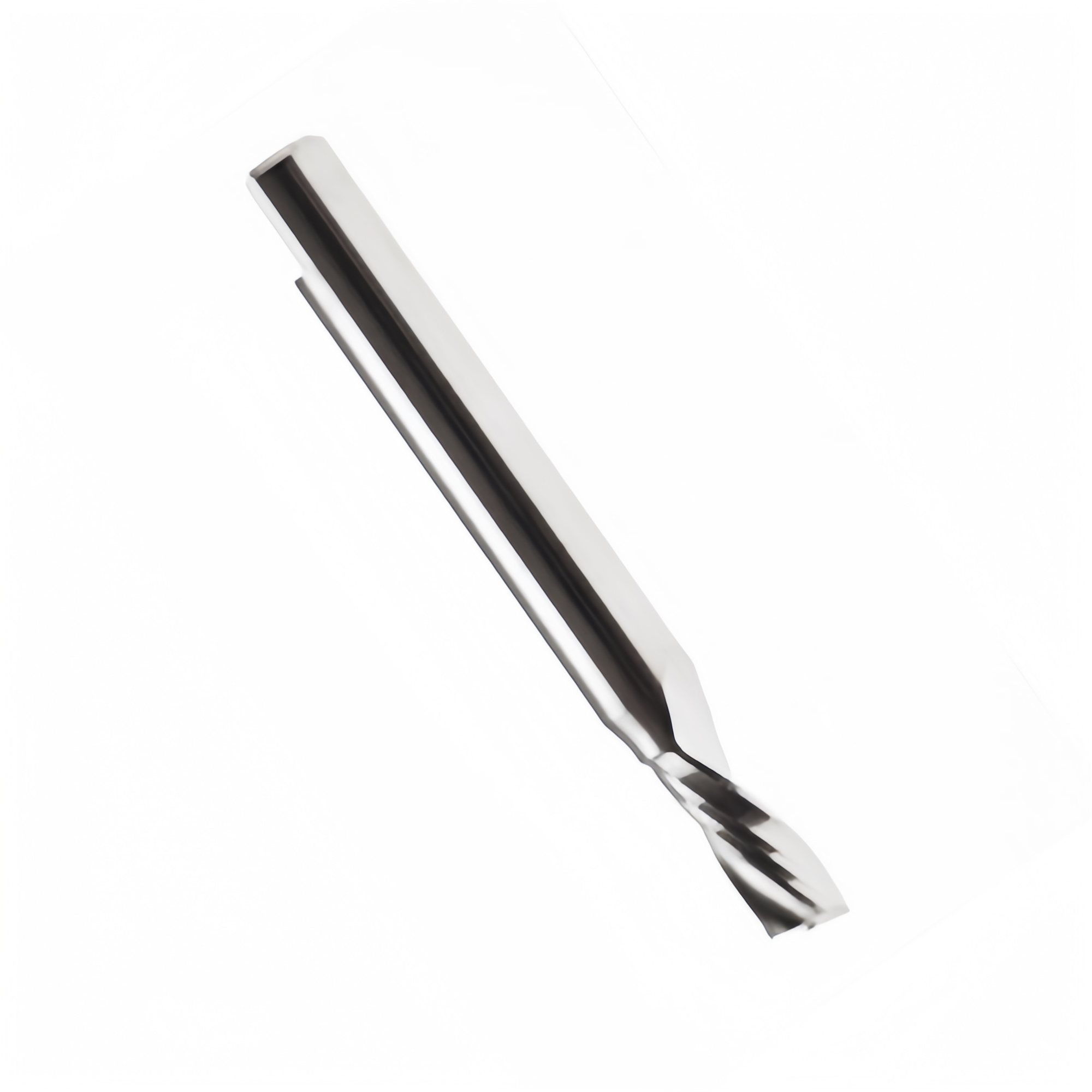

Esko Kongsberg Bit-Mus06-5012-50 G42451062 Multi-Purpose Spiral Router Bit
Esko Kongsberg BIT-MUS06-5012-50 (G42451062) is an original, solid tungsten carbide multi-purpose up-cut single-flute spiral router bit. It is specifically engineered for high-performance milling on Kongsberg digital flatbed cutting tables equipped with the MultiCUT-HP or High-Power Milling Unit (HP…
Request A Quote
Esko Kongsberg Bit-Mus06-5012-50 G42451062 Multi-Purpose Spiral Router Bit
Technical Specifications
Part Number: G42451062 (or 42451062)
Shank Diameter: 6.0 mm
Cutting Edge Diameter: 5.0 mm
Cutting Flute Length: 12.0 mm (Optimized for materials up to 10 mm thick)
Overall Tool Length: 50.0 mm
Geometry & Operational Benefits
Single Flute (Z1) "O-Flute" Design: Features one wide, polished flute channel. This profile maximizes space for chip clearance, which is critical for materials that melt or clog small spaces.
Right-Hand Up-Cut Spiral: Pulls chips, plastic shavings, and friction heat aggressively upward and out of the cut path. This action keeps the tool cool and prevents material from welding back together behind the bit.
Rigidity: With a 5.0 mm cutting diameter on a 6.0 mm shank, this bit offers excellent structural stiffness, reducing tool deflection and minimizing the risk of snapping compared to narrower 3 mm or 4 mm bits.
Primary Material Applications
This multi-purpose tool delivers clean, burr-free edge finishes on a wide variety of sign-making and display substrates:
Dense Plastics: Acrylic (Plexiglas), Polycarbonate (Lexan), and PETG.
Aluminum Sandwiches: Aluminum Composite Materials (ACM, Dibond, Alucobond).
Foam Boards: High-density foamed PVC (Sintra, Forex) and Gatorfoam.
Wood Composites: MDF, plywood, and softwoods/hardwoods.
Production Best Practices
Vacuum Efficiency: Because the 5.0 mm up-cut spiral exerts a strong upward pulling force on the material, ensure your cutting table's vacuum hold-down system is fully sealed and engaged to prevent small parts from shifting.
Chip Load: Maintain an optimal feed rate. Running the bit with too low a travel speed causes the carbide edge to rub against the material rather than slice it, creating friction heat that dulls the edge and melts plastics.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
Part Number: G42451062 (or 42451062)
Shank Diameter: 6.0 mm
Cutting Edge Diameter: 5.0 mm
Cutting Flute Length: 12.0 mm (Optimized for materials up to 10 mm thick)
Overall Tool Length: 50.0 mm
Geometry & Operational Benefits
Single Flute (Z1) "O-Flute" Design: Features one wide, polished flute channel. This profile maximizes space for chip clearance, which is critical for materials that melt or clog small spaces.
Right-Hand Up-Cut Spiral: Pulls chips, plastic shavings, and friction heat aggressively upward and out of the cut path. This action keeps the tool cool and prevents material from welding back together behind the bit.
Rigidity: With a 5.0 mm cutting diameter on a 6.0 mm shank, this bit offers excellent structural stiffness, reducing tool deflection and minimizing the risk of snapping compared to narrower 3 mm or 4 mm bits.
Primary Material Applications
This multi-purpose tool delivers clean, burr-free edge finishes on a wide variety of sign-making and display substrates:
Dense Plastics: Acrylic (Plexiglas), Polycarbonate (Lexan), and PETG.
Aluminum Sandwiches: Aluminum Composite Materials (ACM, Dibond, Alucobond).
Foam Boards: High-density foamed PVC (Sintra, Forex) and Gatorfoam.
Wood Composites: MDF, plywood, and softwoods/hardwoods.
Production Best Practices
Vacuum Efficiency: Because the 5.0 mm up-cut spiral exerts a strong upward pulling force on the material, ensure your cutting table's vacuum hold-down system is fully sealed and engaged to prevent small parts from shifting.
Chip Load: Maintain an optimal feed rate. Running the bit with too low a travel speed causes the carbide edge to rub against the material rather than slice it, creating friction heat that dulls the edge and melts plastics.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
