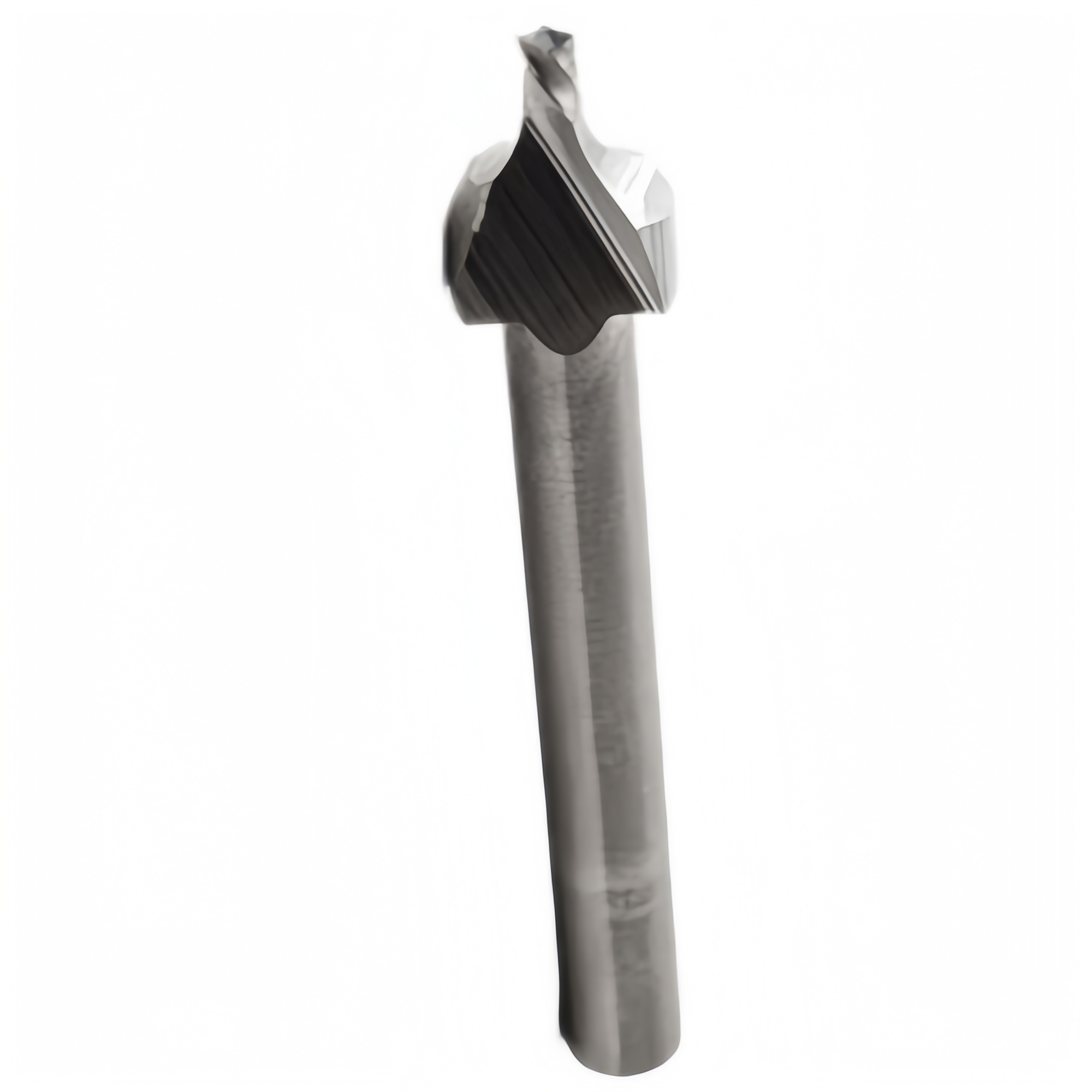

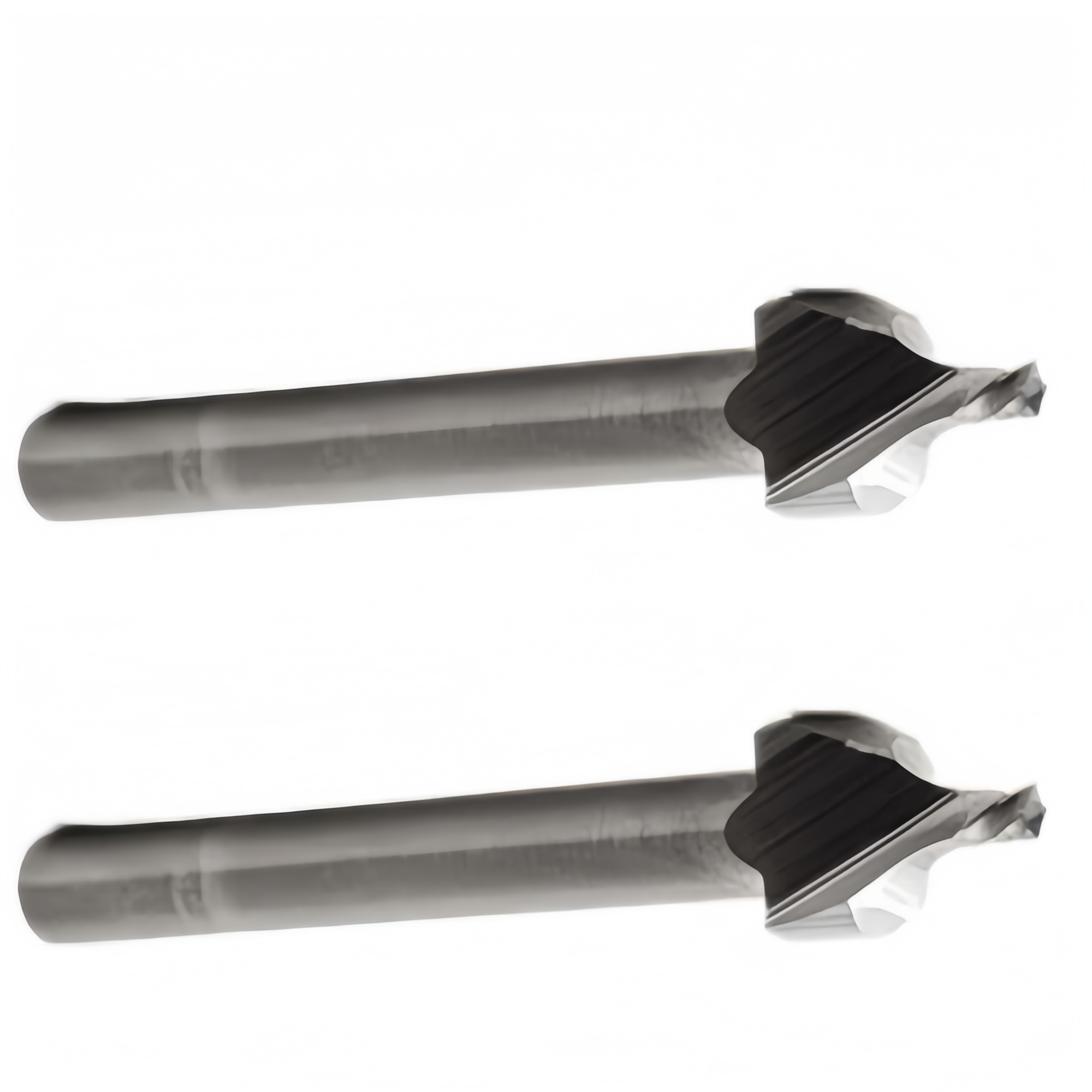

Esko Kongsberg Bit-Rbo06-6-8 G34111575 Milling Router Bit For Kongsberg Cutting Systems

Esko Kongsberg BIT-RBO06-6-8 (G34111575) is a highly specialized, industrial 6mm shaft milling and router bit manufactured for Kongsberg Precision Cutting Systems (formerly part of Esko). It belongs to the RBO series, which features professional-grade single-flute or radius geometries optimized for …

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Rbo06-6-8 G34111575 Milling Router Bit For Kongsberg Cutting Systems

Specification Details
Part Number G34111575
Model Code BIT-RBO06-6-8
Tool Type Radius Routing & Milling Bit
Profile Type Outer Radius Bit
Radius R3.5 mm
Tip Diameter 3 mm
Shank Diameter 6 mm
Recommended Material Thickness 6–8 mm
Overall Length 60 mm
Material Solid Tungsten Carbide (Cemented Carbide)
Maximum Speed Up to 40,000 RPM
Compatible Machines Esko Kongsberg Digital Cutting Systems
Applications & Material Compatibility
The "RBO" series bits are typically designated as special-purpose radius bits designed to create clean, rounded profiling on outer edges or custom contours rather than straight plunge routing.
Target Processes: Edge-profiling, rounding sharp outside corners, and executing smooth border contours.
Compatible Materials: Works with rigid or semi-rigid substrates processed on CNC tables, including acrylics, foam boards (Forex/Sintra), wood, MDF, and Aluminum Composite Materials (ACM/Dibond).

Operational Recommendations
Bit Swapping: Always engage the machine's air collet chuck system via the safety switch during a tool change. Ensure the bit is gripped cleanly at its 6mm shoulder.
Calibration: Execute an Automatic Tool Leveling (ATL) cycle immediately after installation to protect the router matrix underlayment and guarantee accurate milling depth.

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
