Esko Kongsberg Bit-Wud06-6025-64 I-5212 G42458752 Wood Milling Bit

The Esko Kongsberg Bit-Wud06-6025-64 I-5212 G42458752 Wood Milling Bit is specifically engineered for Esko Kongsberg XL, X, and XP digital cutting tables equipped with High-Frequency (HF) Milling units.

Request A Quote

Description
Related Products

Esko Kongsberg Bit-Wud06-6025-64 I-5212 G42458752 Wood Milling Bit

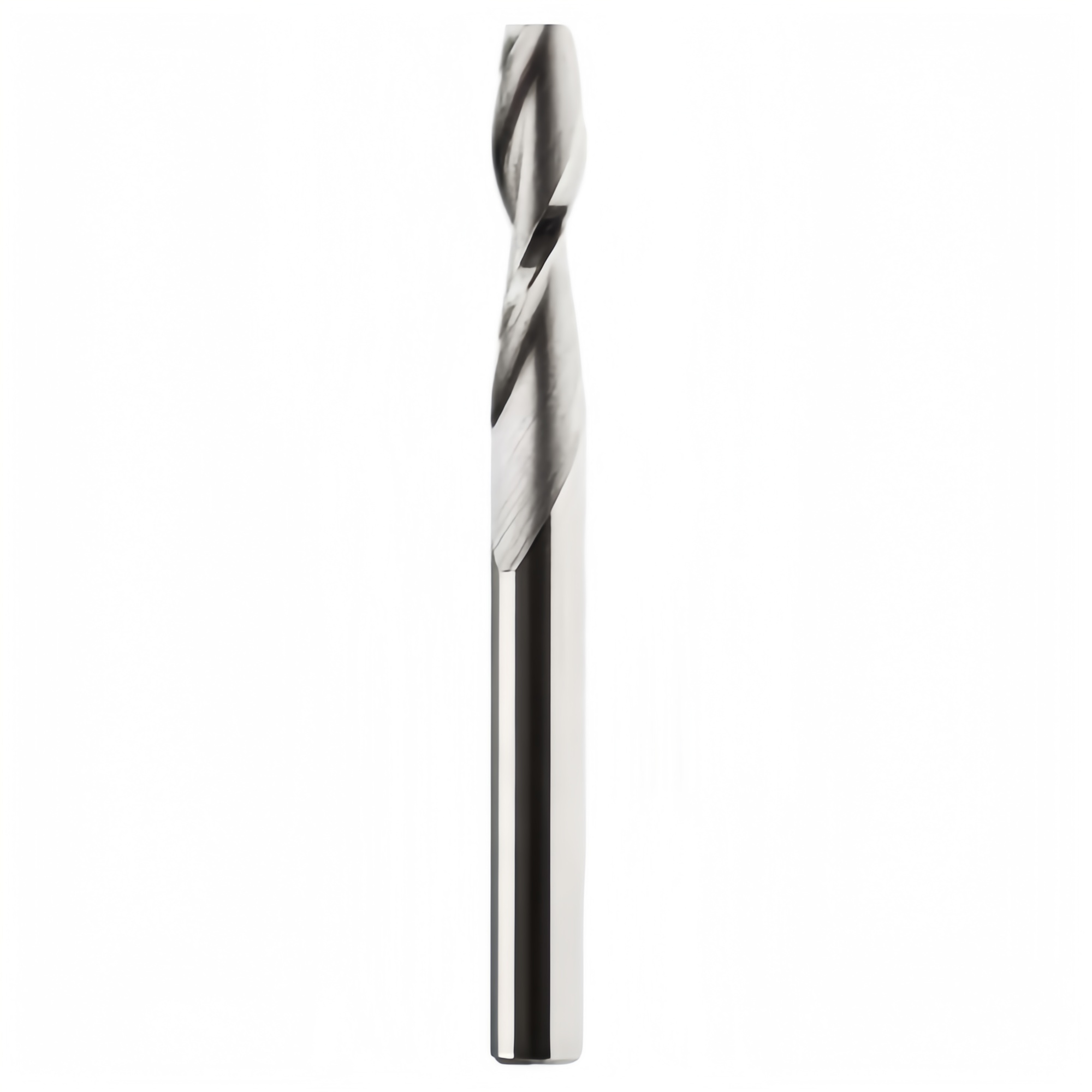

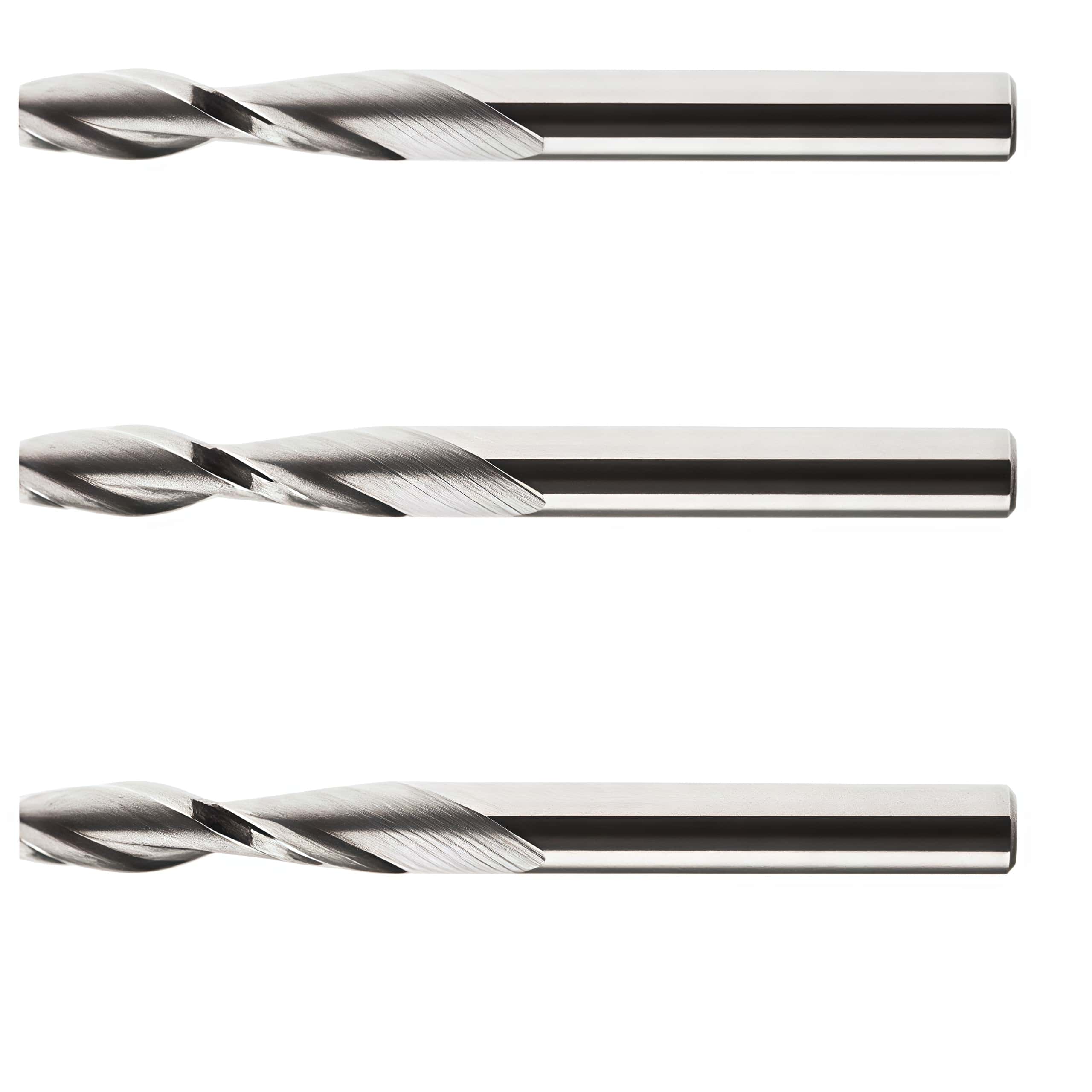

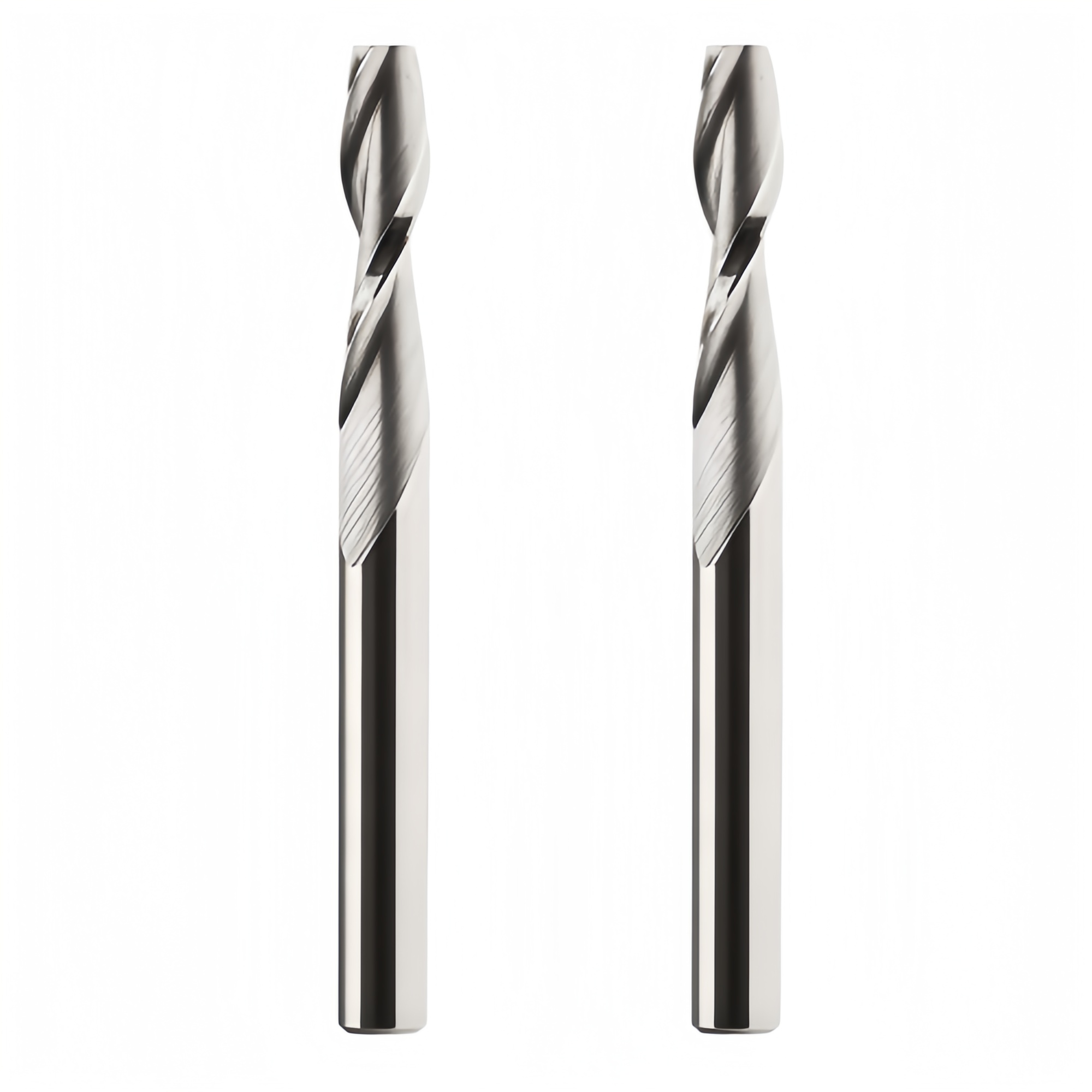

The Esko Kongsberg BIT-WUD06-6025-64 (identified by part number G42458752 and technical ID i-5212) is a professional-grade, double-flute milling bit specifically designed for cutting wood-based materials on Kongsberg digital cutting table.

Key Technical Specifications
This bit is a polished, up-cut spiral tool designed for high-performance routing.
Shank Diameter: 6 mm
Milling/Tip Diameter: 6 mm
Max Milling Depth: 25 mm (though some listings suggest a recommended thickness up to 23 mm for optimal performance)
Total Length: 64 mm
Flute Design: Double-flute (Z2), Up-cut spiral

Applications and Material Compatibility
This bit is optimized for substrates that require efficient chip removal (achieved by the up-cut spiral) and a clean finish.
Primary Materials: Soft and hard composite wood, including those with top-print laminates.
Secondary Materials: MDF, thin plywood, and certain rigid display materials like foamed PVC (Forex/Sintra).
Compatible Equipment: It is used with Esko Kongsberg tables equipped with a High-Power Milling Unit or MultiCUT-HP tool head.
