Esko Kongsberg Cutting Systems Bit-Mus06-3011-50 G42437905 Milling Router Bit

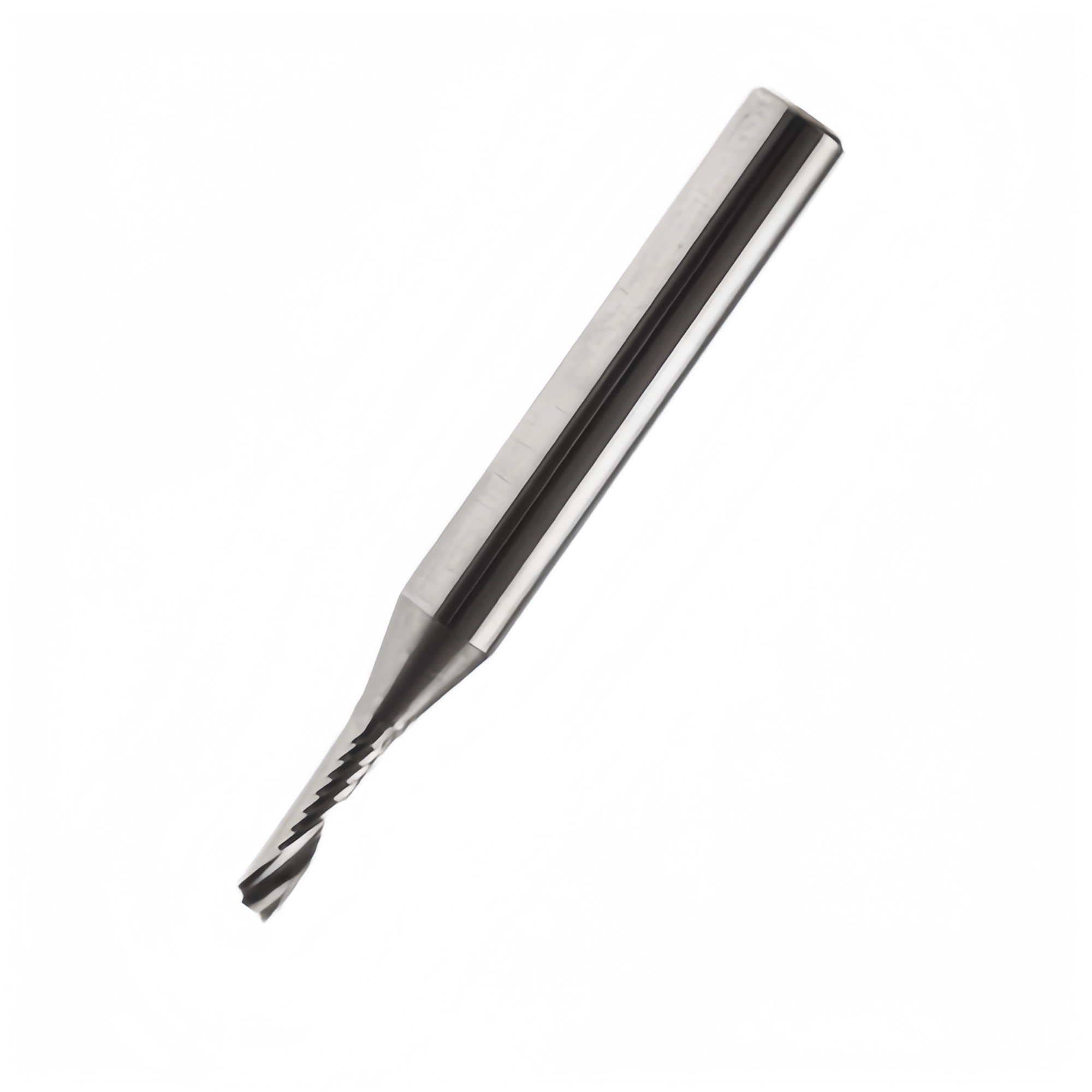

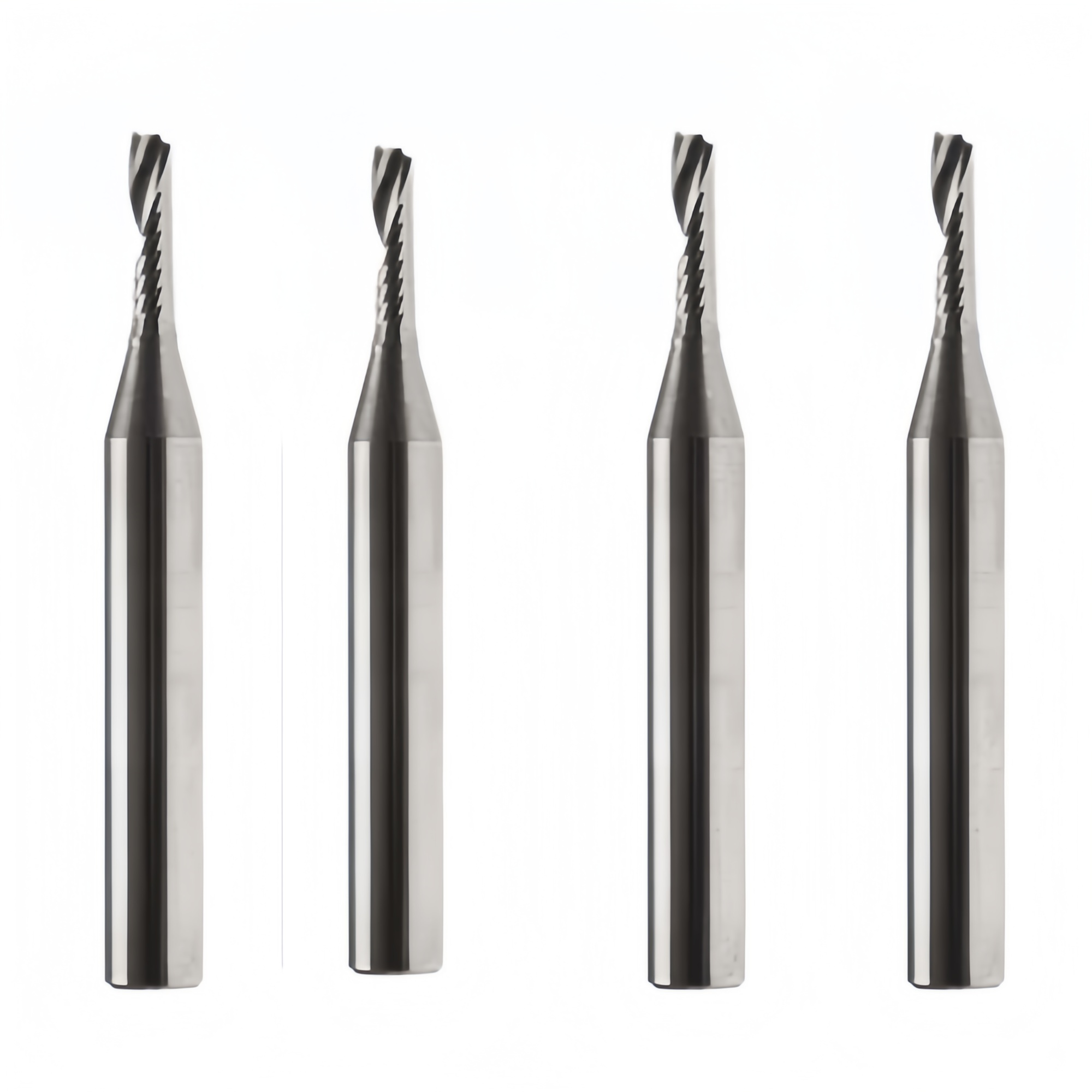

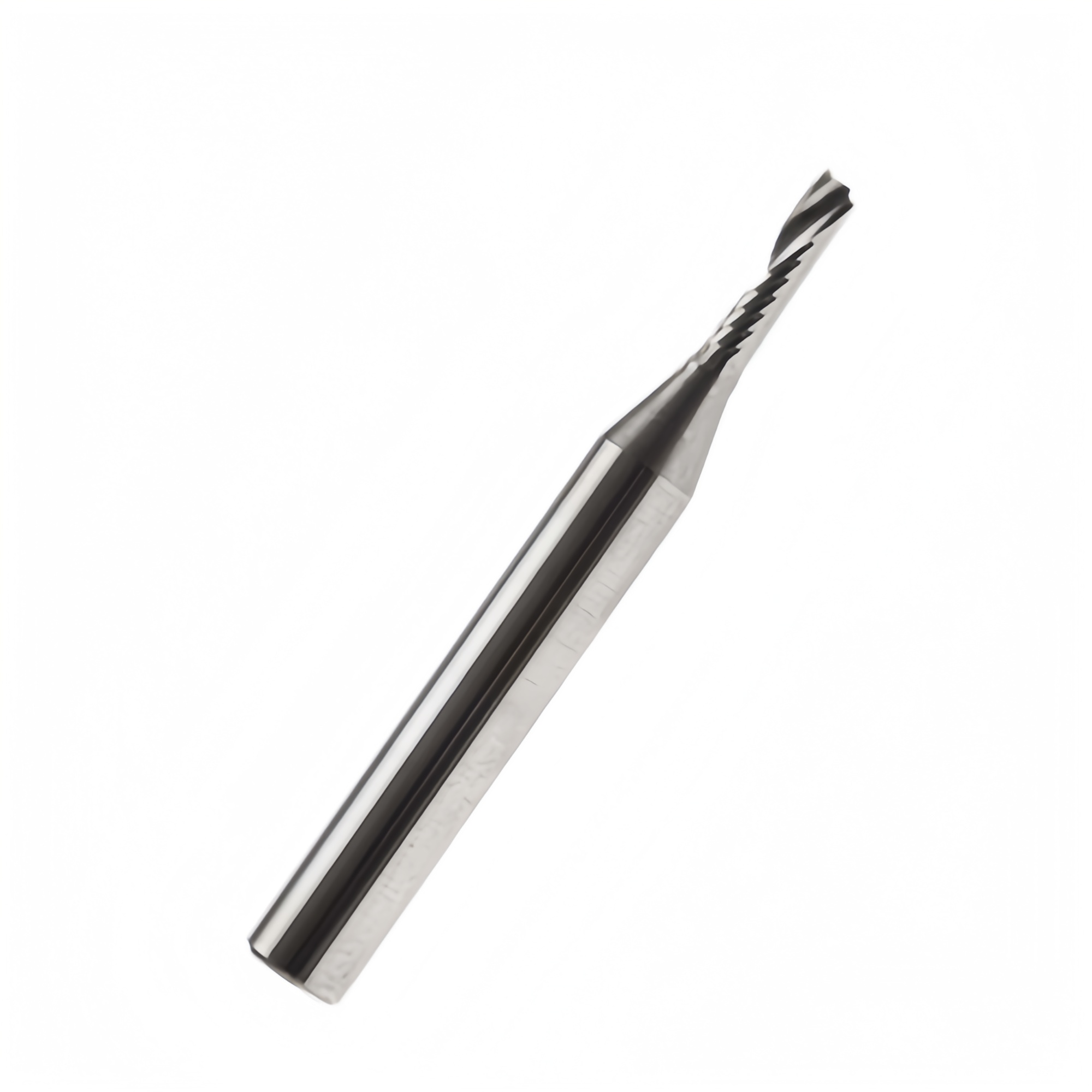

The Esko Kongsberg BIT-MUS06-3011-50 (Original Part Number G42437905) is a premium, high-performance solid tungsten carbide milling and router bit. It is engineered specifically for use with high-speed milling spindles on Kongsberg digital finishing tables, as well as cross-compatible machinery.

Key Technical Specifications
The part number directly outlines the precise physical layout of the tool geometry:
Flute / Cutting Length: 11.0 mm
Total Length: 50.0 mm
Shank Diameter: 6.0 mm
Cutting Edge / Tip Diameter: 3.0 mm

Flute Type: Single Flute (O-Flute), Right-Hand Spiral
Cut Type: Up-Cut (pulls chips upward for clean bottom finishes)

Application & Material Compatibility
This bit is a multi-purpose (MU) routing asset. The polished single flute design excels at clearing chips efficiently during high-speed production, which minimizes material melting or friction buildup. It is broadly used to cut:
Plastics & Synthetics: PMMA (Acrylic / Plexiglas), Polycarbonate, Forex, and soft plastics
Composites: Aluminum Composite Material (ACM / Dibond)
Wood Products: MDF, solid wood, and plywood
Soft Metals: Solid aluminum sheet routing

Industry Equivalents
If you are managing a mixed production floor, this geometry corresponds to alternative manufacturer naming schemas:
Zund Equivalent: Part number 3910763 (Model R113).

MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
