Esko Kongsberg Milling & Router BIT-AUS03-3022-50 G42443705

The Esko Kongsberg BIT-AUS03-3022-50 (referenced by number G42443705 or similar in the AUS series) is a specialized, high-performance milling bit designed for precision cutting on Kongsberg digital finishing tables.

Request A Quote

Description
Related Products

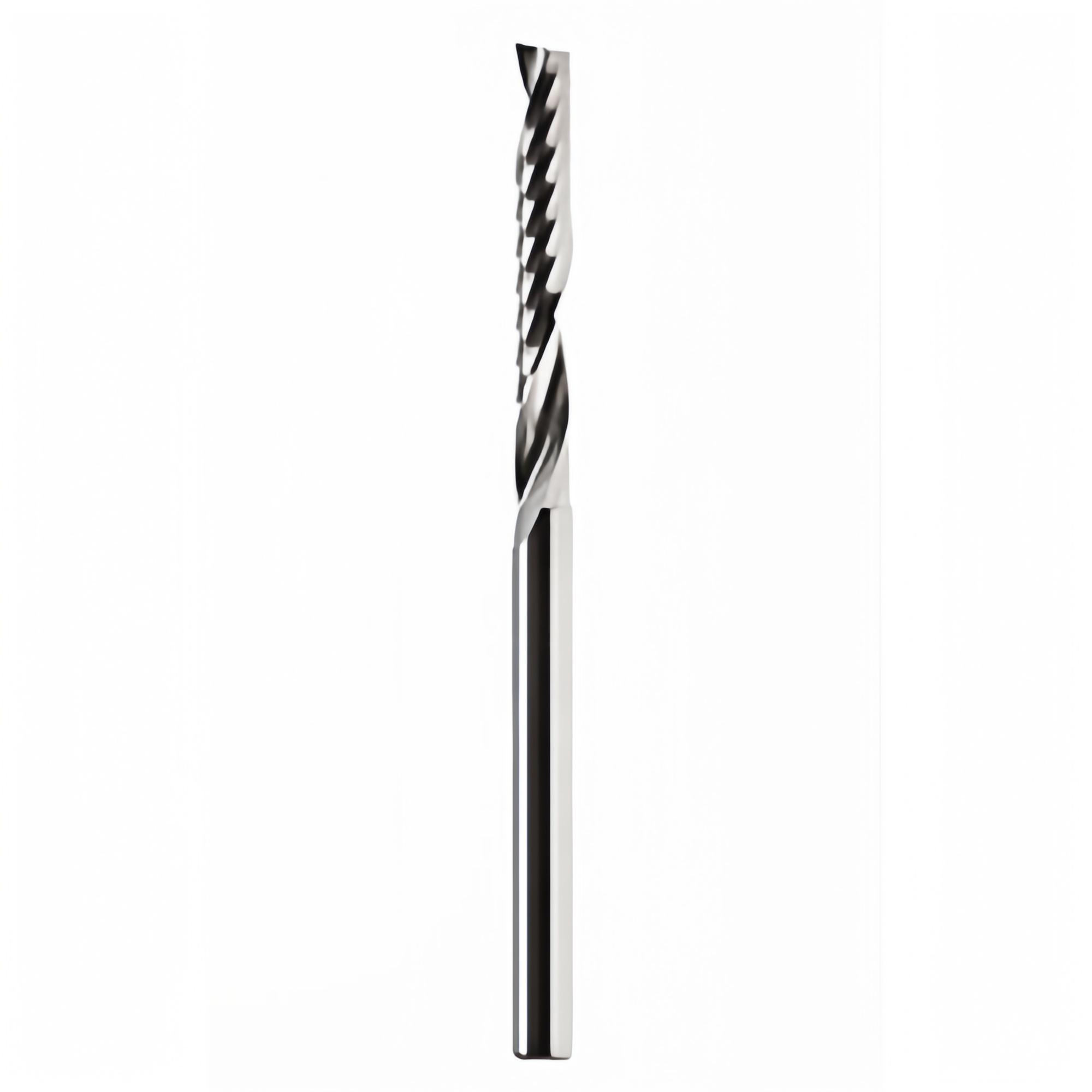

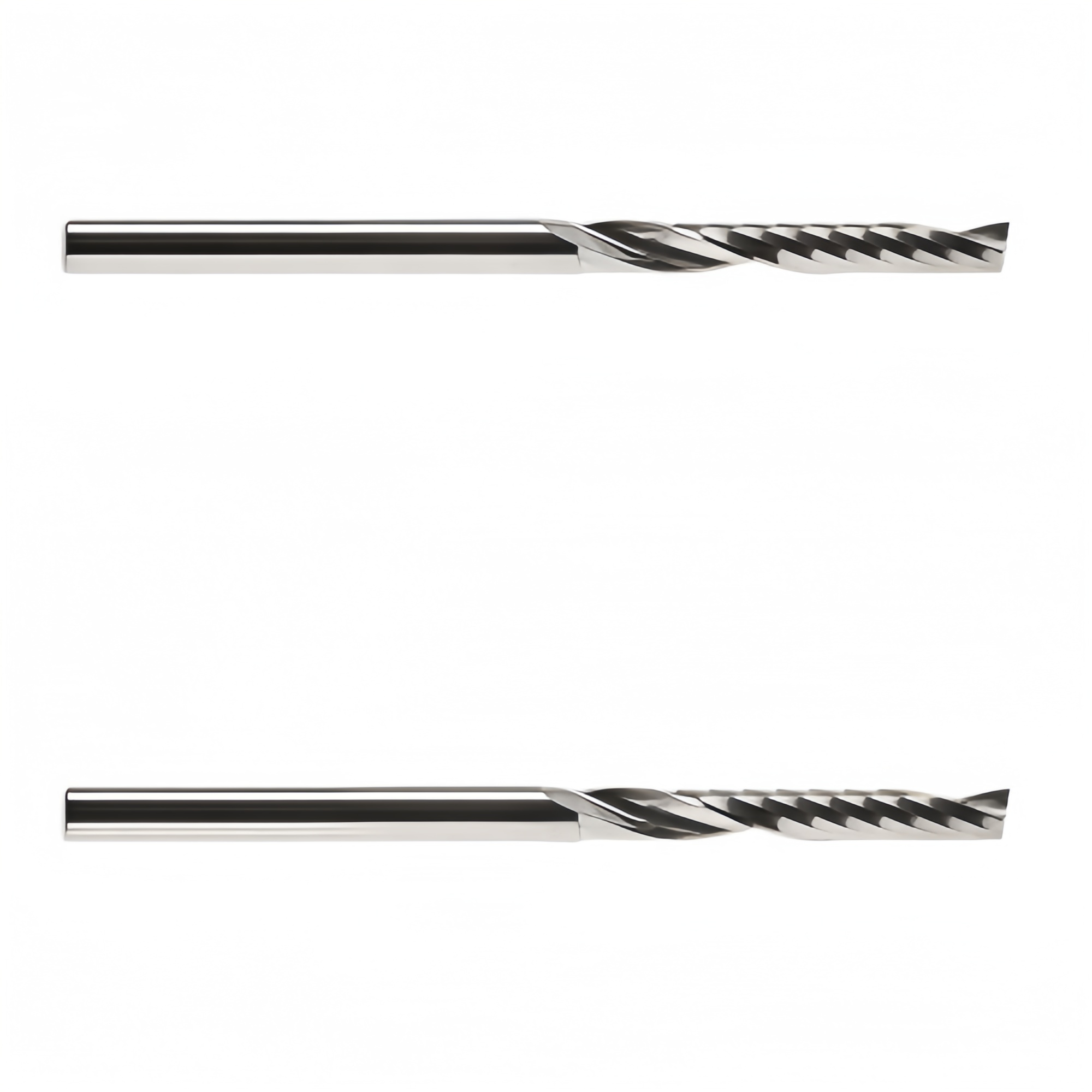

Esko Kongsberg Milling & Router BIT-AUS03-3022-50 G42443705

Key Specifications & Features
Series: AUS - Acrylic Up-Cut "Super Sharp"
Cutting Diameter: 3.0 mm
Cutting Depth (Length of Cut): 11 mm
Shank Diameter: 6.0 mm
Total Length: 50 mm
Geometry: Single Flute, Up-Cut, 24° angle
Material: High-quality solid carbide for superior wear resistance

Key Features
Premium solid tungsten carbide for exceptional wear resistance and extended tool life.
Single-flute up-cut spiral efficiently removes chips to minimize heat buildup and prevent acrylic melting.
Produces clean, smooth, transparent edges on acrylic with minimal finishing required.
Ideal for high-speed CNC routing of acrylic, PMMA, plastics, wood, and selected non-ferrous materials.
Precision-ground cutting edge ensures excellent dimensional accuracy and superior surface finish.
Optimized for continuous industrial production and long service life.
Material Applications

Suitable for machining:

Acrylic (PMMA)
Cast Acrylic
Plexiglass
PVC
ABS
Polycarbonate (PC)
HDPE
Soft Plastics
MDF
Wood
Aluminum Composite Material (ACM)
Compatible Tool Heads

Compatible with Esko Kongsberg routing systems including:

MultiCUT
MultiCUT HP (High Performance)
X Series
C Series
V Series
XP Series

Designed for high-speed CNC routing applications requiring superior cutting quality and precision.
