iEcho E56 Rotation Knife Blades For Iecho Cutting Machine Digital Cutter Machine
iEcho E56 rotation knife blade is a rotary blade for iEcho digital cutters and flatbed cutting machines, typically listed with a 25 mm height, 0.63 mm thickness, 8 mm mounting hole, and 4.0 mm max cutting depth.
Request A Quote
iEcho E56 Rotation Knife Blades For Iecho Cutting Machine Digital Cutter Machine

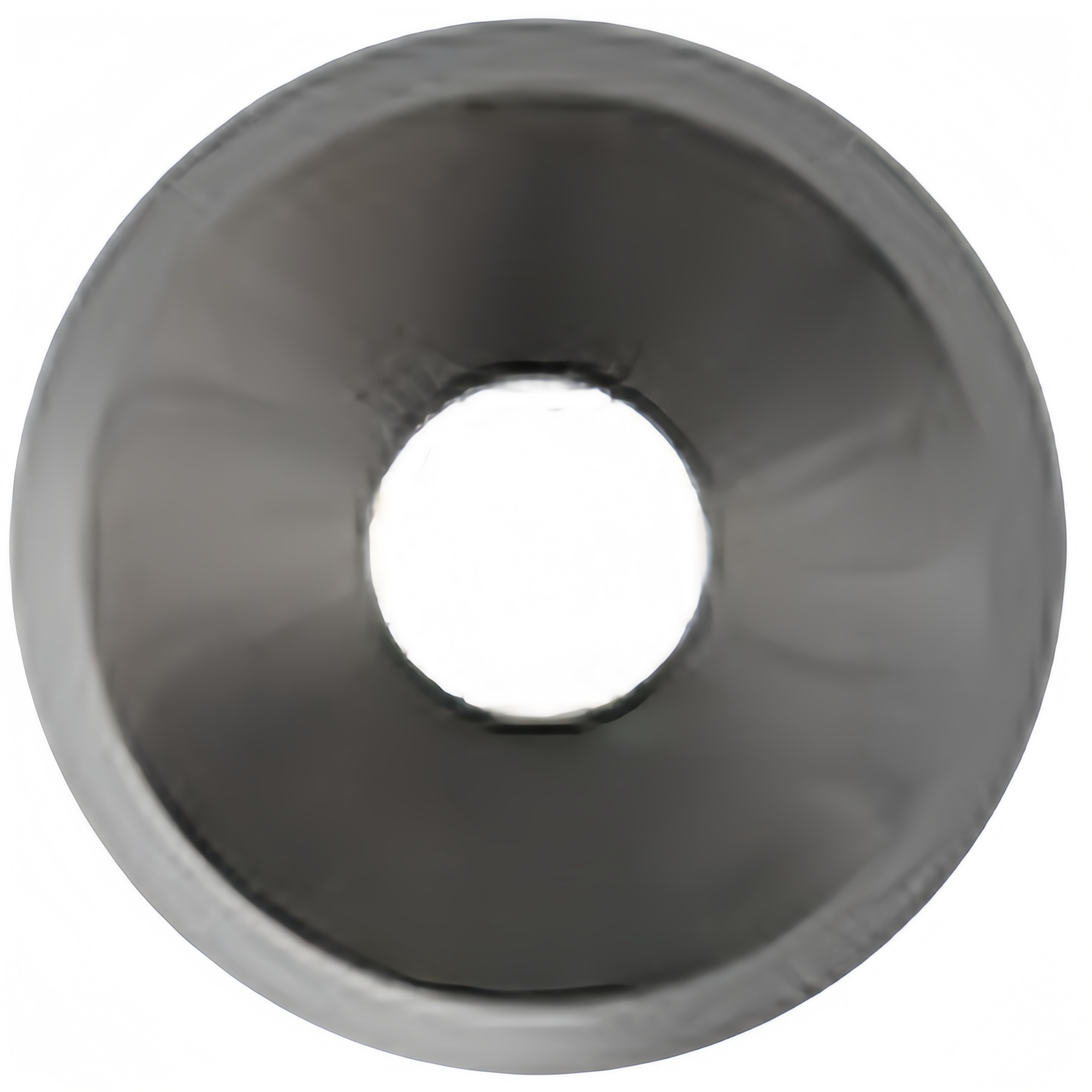

iEcho E56 Rotation Knife Blade is a perfectly round, high-performance circular rotary blade designed for iEcho Automated Digital Flatbed Cutters. Engineered with a smooth, continuous edge from wear-resistant tungsten carbide, it relies on a high-speed rolling shear action. This makes it highly effective at slicing through flexible fiber roll goods without catching, snagging, or pulling the material threads.
The E56 shares an industry-standard universal configuration, allowing it to act as a direct drop-in replacement across systems from multiple alternative tool brands, including Zund, Esko Kongsberg, and Aristo.
Technical Specifications
The exact physical properties of the E56 manage its maximum cutting capabilities and module installation:

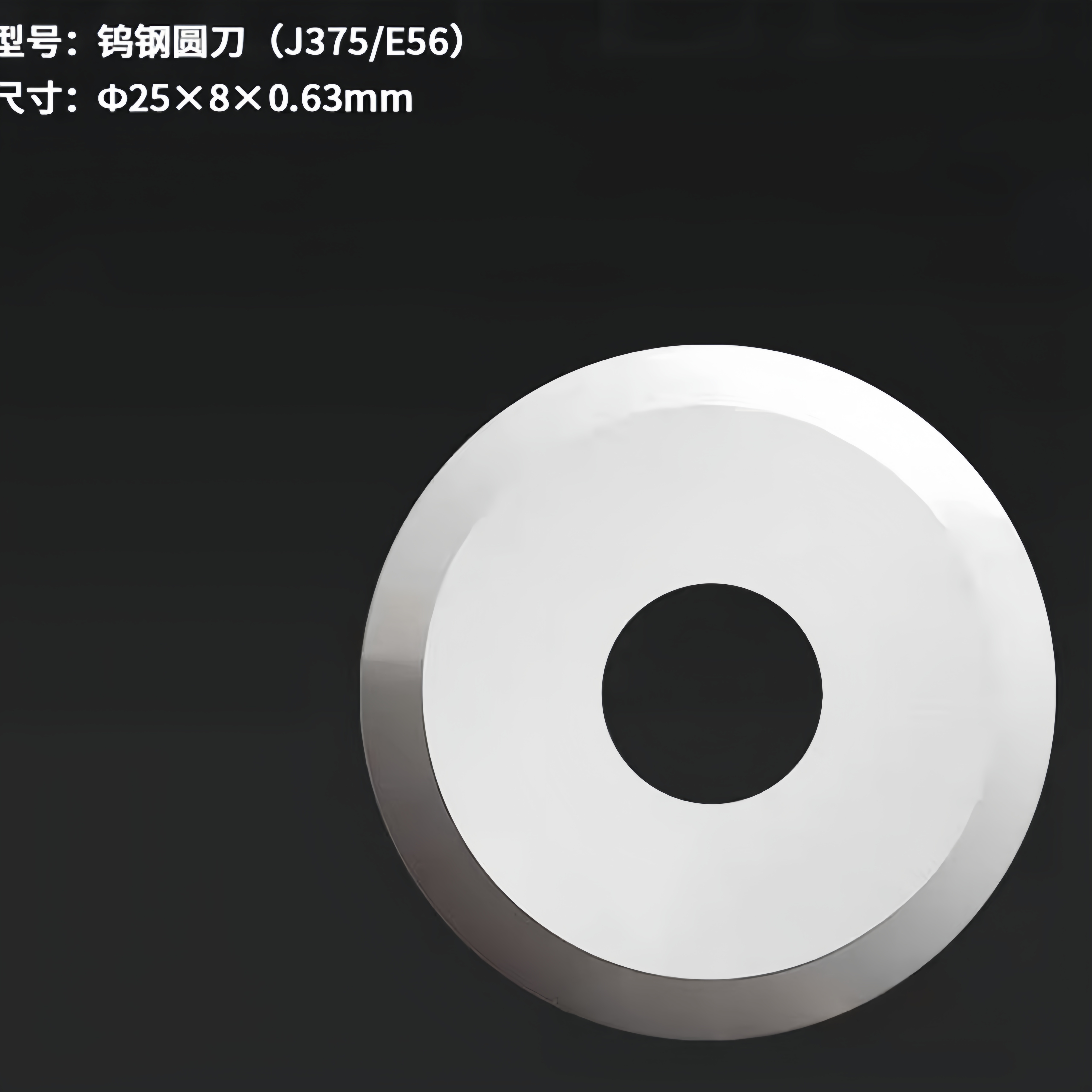

Blade Geometry: Perfectly circular continuous round edge
Outer Diameter (Blade Height): 25.00 mm
Blade Thickness: 0.63 mm
Maximum Cutting Depth: 4.00 mm
Mounting Configuration: Center bore hole Ø 8.00 mm
Material Composition: 100% Virgin Tungsten Carbide / Hard Metal
Tool Module Compatibility
The 8mm center hole centers precisely onto the spindle axles of iEcho's rotation-specific tool assemblies:
DRT (Driven Rotary Tool): A motorized spindle tool head that spins the E56 at controlled RPMs matching the machine's gantry speed. This active rotation ensures clean cuts on lightweight or single-layer fabrics by reducing surface drag.
PRT (Power/Pneumatic Rotary Tool): A compressed-air driven, high-torque module that spins the blade up to 11,000 RPM. It supplies the sheer mechanical power required to slice through multi-layered fabric sheets or highly resistive woven structures without bogging down.
Ideal Material Applications
Because the E56 does not pull or drag through fibers like a static blade, it is ideal for thin to medium flexible materials:
Advanced Technical Weaves: Raw carbon fiber fabrics, fiberglass mats, and high-strength aramid (Kevlar) layers.
Industrial Fabrics: Dense nylon, polyester mesh, industrial canvas, and non-woven filter textiles.
Soft Padding: Light synthetic felts and technical foam backings.
The E56 shares an industry-standard universal configuration, allowing it to act as a direct drop-in replacement across systems from multiple alternative tool brands, including Zund, Esko Kongsberg, and Aristo.
Technical Specifications
The exact physical properties of the E56 manage its maximum cutting capabilities and module installation:
Blade Geometry: Perfectly circular continuous round edge
Outer Diameter (Blade Height): 25.00 mm
Blade Thickness: 0.63 mm
Maximum Cutting Depth: 4.00 mm
Mounting Configuration: Center bore hole Ø 8.00 mm
Material Composition: 100% Virgin Tungsten Carbide / Hard Metal
Tool Module Compatibility
The 8mm center hole centers precisely onto the spindle axles of iEcho's rotation-specific tool assemblies:
DRT (Driven Rotary Tool): A motorized spindle tool head that spins the E56 at controlled RPMs matching the machine's gantry speed. This active rotation ensures clean cuts on lightweight or single-layer fabrics by reducing surface drag.
PRT (Power/Pneumatic Rotary Tool): A compressed-air driven, high-torque module that spins the blade up to 11,000 RPM. It supplies the sheer mechanical power required to slice through multi-layered fabric sheets or highly resistive woven structures without bogging down.
Ideal Material Applications
Because the E56 does not pull or drag through fibers like a static blade, it is ideal for thin to medium flexible materials:
Advanced Technical Weaves: Raw carbon fiber fabrics, fiberglass mats, and high-strength aramid (Kevlar) layers.
Industrial Fabrics: Dense nylon, polyester mesh, industrial canvas, and non-woven filter textiles.
Soft Padding: Light synthetic felts and technical foam backings.
MAISI Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-

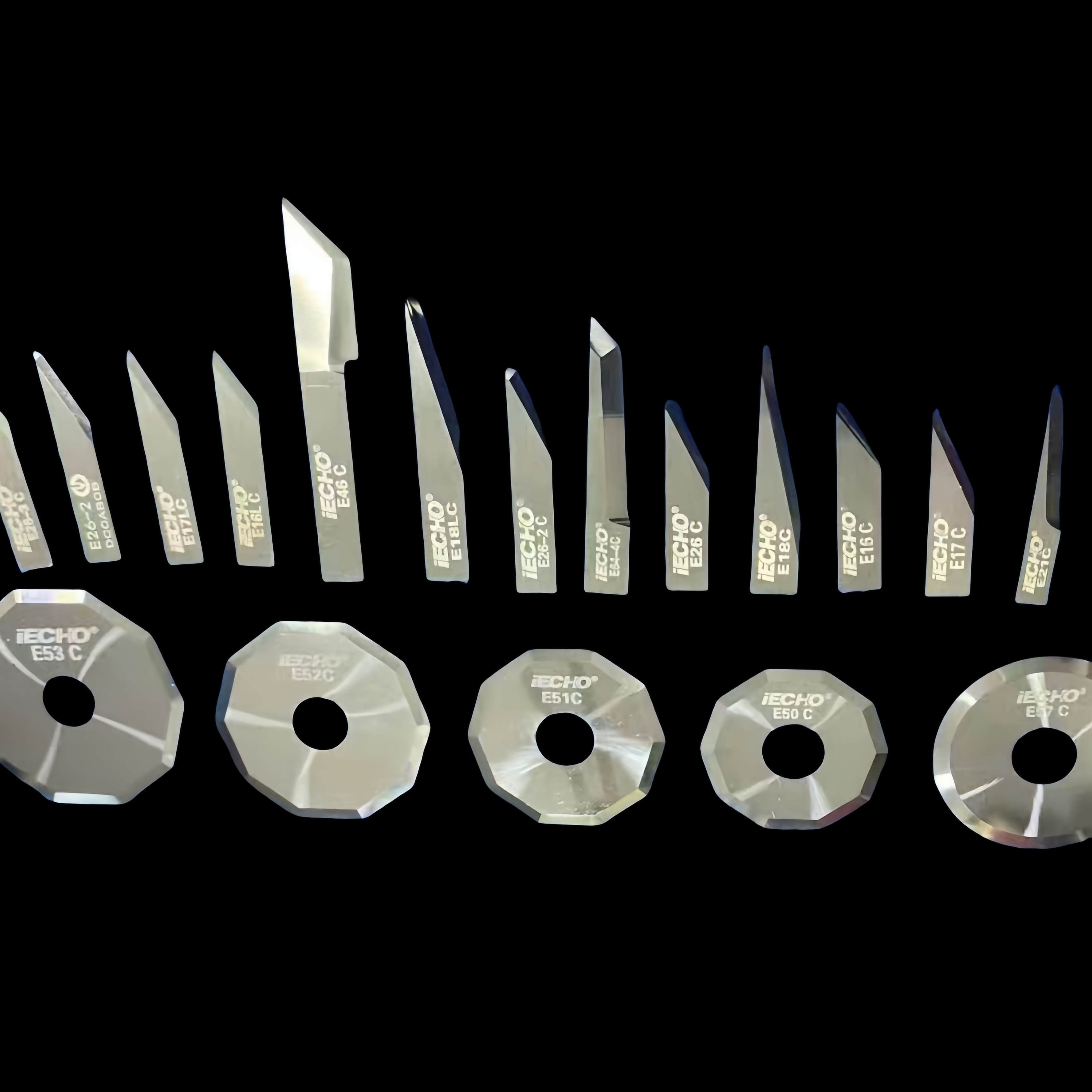

iEcho E1, Drag Knife blade, round-stock
-
