Esko Kongsberg Bit-Mus06-4006-50 Multi Purpose Milling & Router Bits G42443564

Esko Kongsberg Bit-Mus06-4006-50 Multi Purpose Milling & Router Bits G42443564 Compatible Equivalent Colex: SX/SXC/PX; Kongsberg: XP/C;Zund: G3, S3; Gerber: MCT; Summa: F Series; Multicam: Celero/Digital Express;Cutworx: Apex Series;

Request A Quote

Description
Related Products

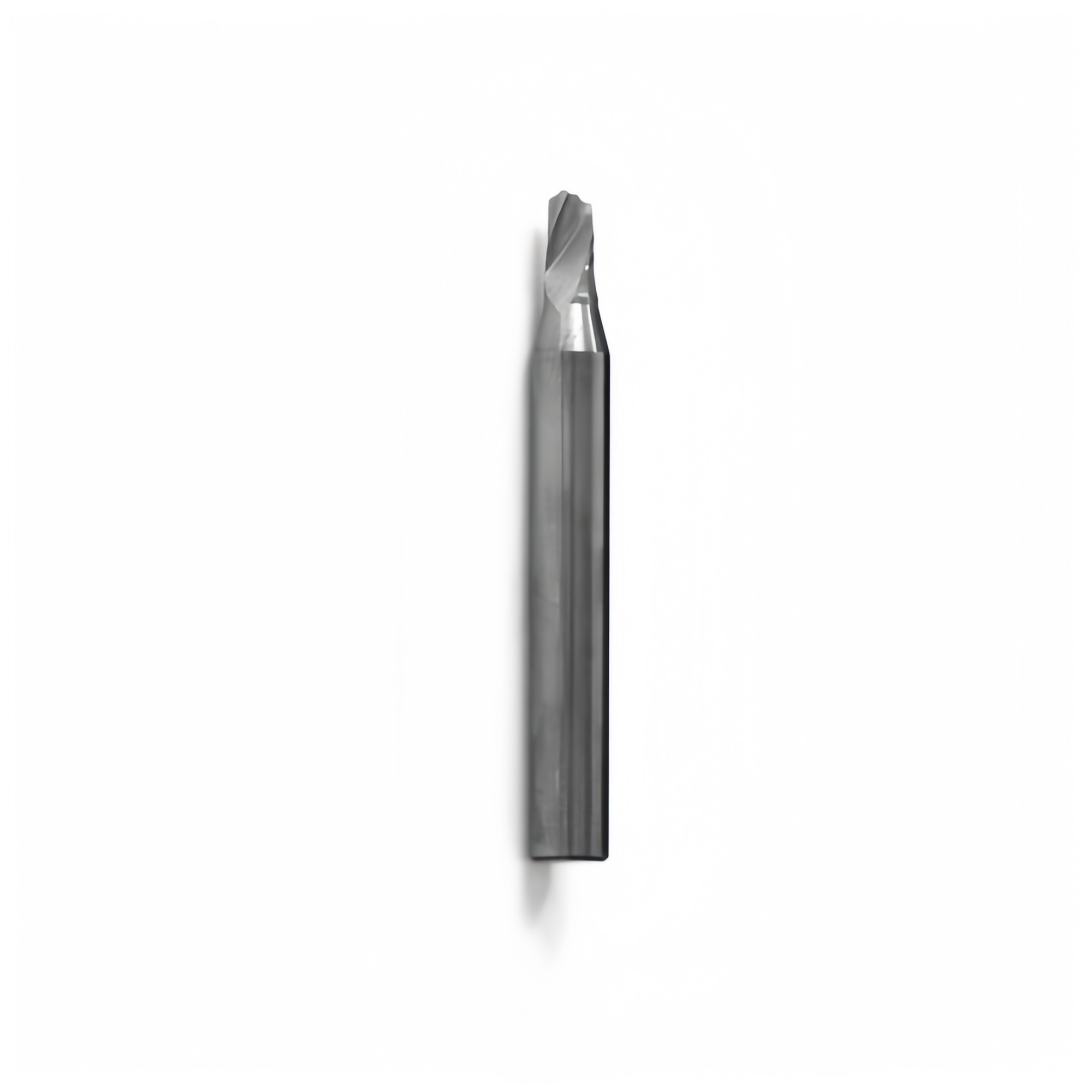

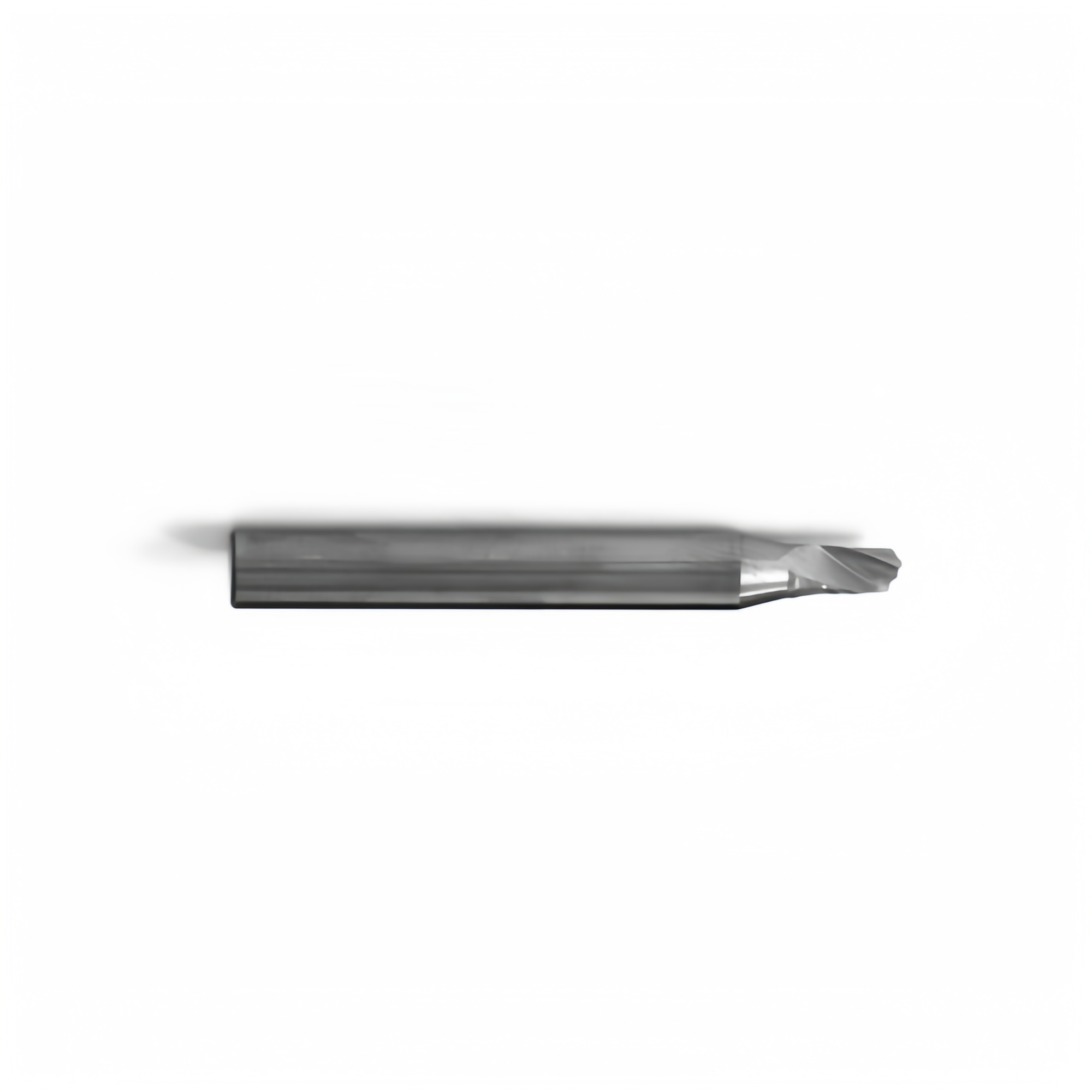

Esko Kongsberg Bit-Mus06-4006-50 Multi Purpose Milling & Router Bits G42443564

Multi purpose, up-cut, single flute bit.
D Shank diameter 6mm
d Tip diameter 4mm
L Total length 50mm
M Max milling cutting thickness 5mm

To use BIT-MUS06-4006-50 on your Kongsberg PCS table, you need one of the following configurations.

· HSMU / MultiCut (1kW) Ibag requires chuck 42444067

· MultiCUT (1kW) Kavo requires chuck 02721314

· HPMU (3kW) / MultiCUT HP (3kW) requires chuck 42454728

To use BIT-MUS06-4006-50 on your Multicam router you need a 6mm collet installed.

Length (cm) 5
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.015

Material Sub Category Thickness Method
Foamed PVC / PS Foamed PVC / PS (Forex, Sintra) < 5mm Milling
Lenticular display panels Lenticular display panels < 5mm Milling
Protective foam High density < 20mm Milling
