Esko Kongsberg Bit-Mus06-4006-50c1 Multi Purpose Coated Milling & Router Bits G42451112

Esko Kongsberg Bit-Mus06-4006-50c1 Multi Purpose Coated Milling & Router Bits G42451112 on your Kongsberg PCS table Compatible Colex: SX/SXC/PX; Kongsberg: XP/C;Zund: G3, S3; Gerber: MCT; Summa: F Series;Multicam: Celero/Digital Express; Cutworx: Apex Series;Equivalent

Request A Quote

Description
Related Products

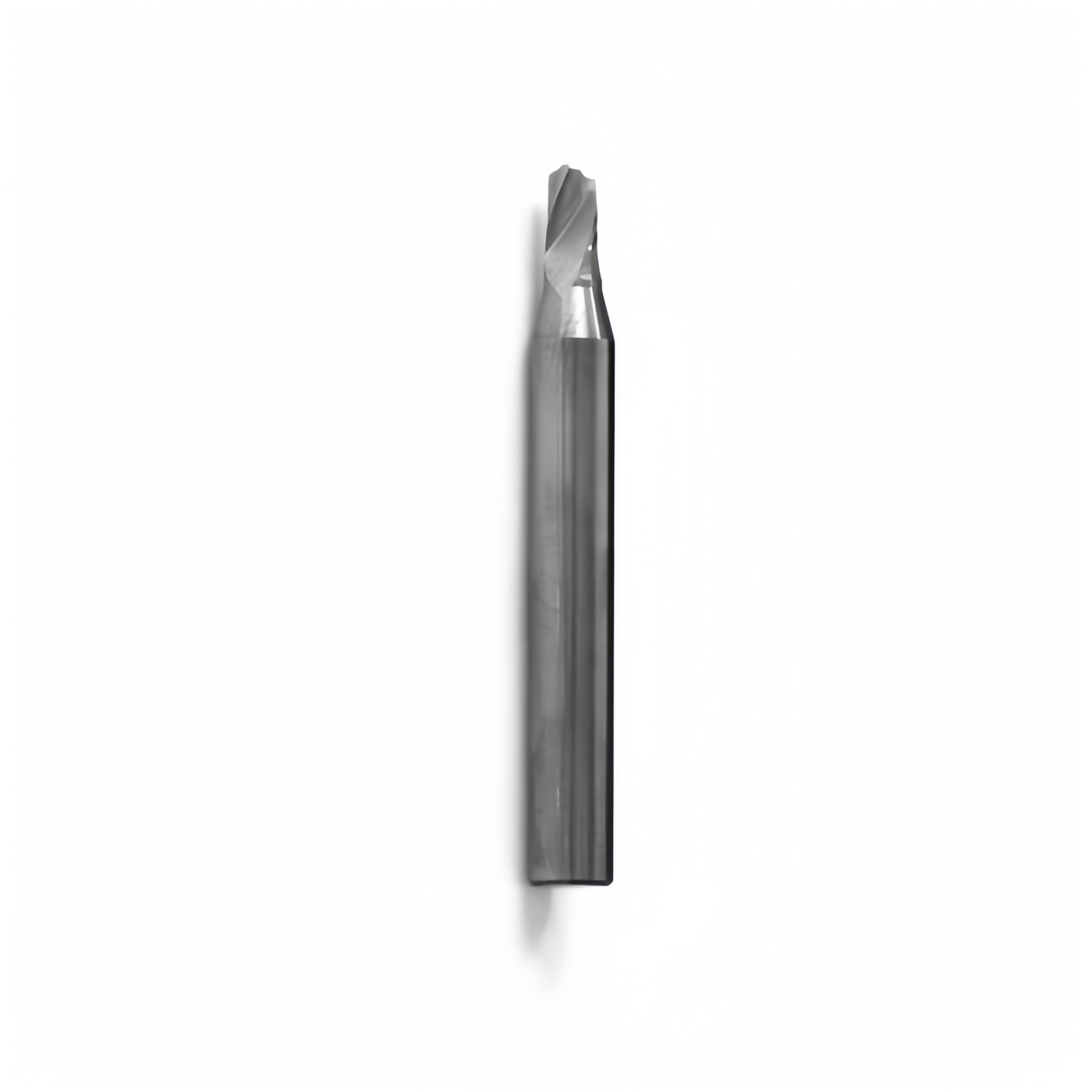

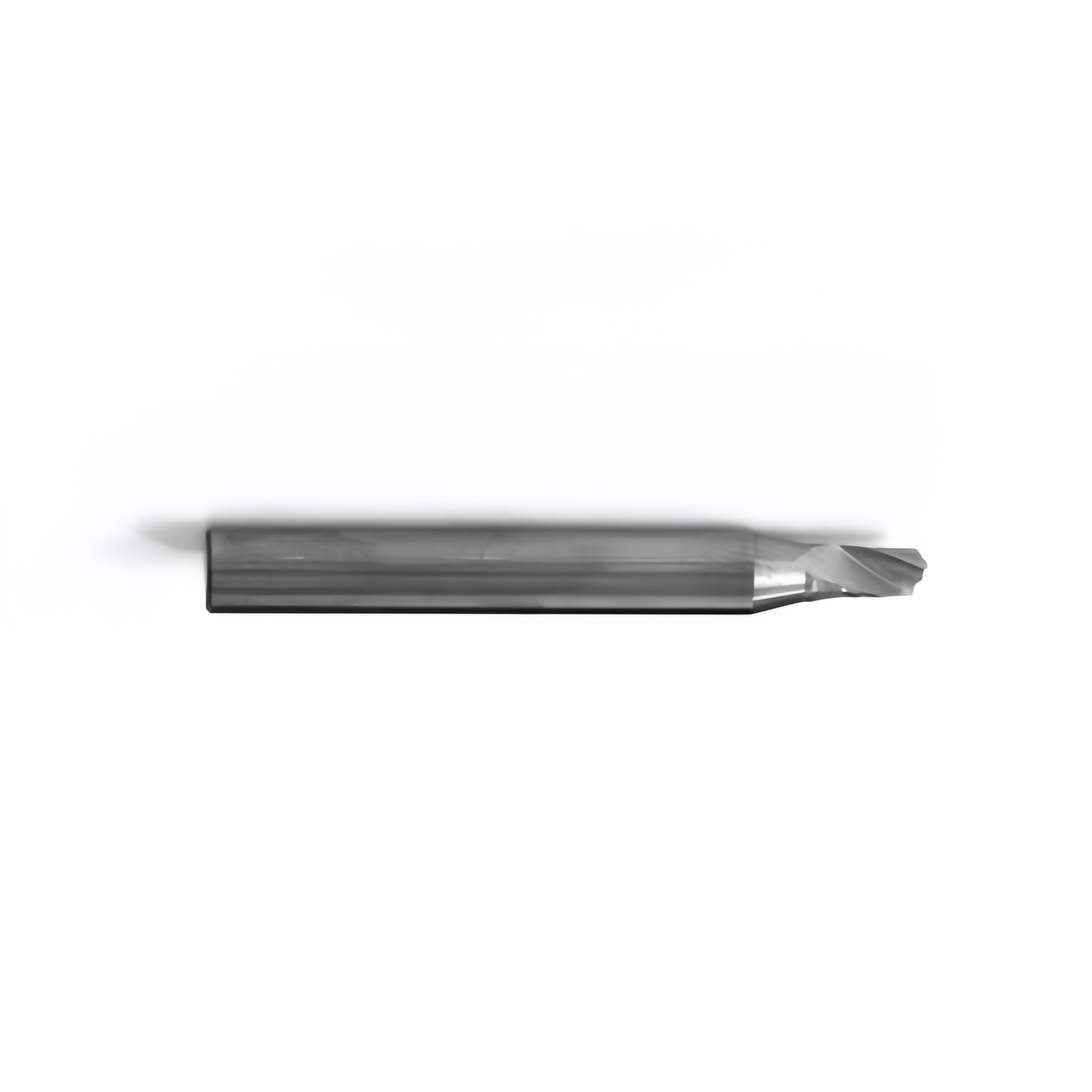

Esko Kongsberg Bit-Mus06-4006-50c1 Multi Purpose Coated Milling & Router Bits G42451112

Multi purpose, up-cut, single flute, coated. Special variety of multi purpose milling bit, coated for better performance with different materials like
aluminum and ACM.
D Shank diameter 6mm
d Tip diameter 4mm
L Total length 50mm
M Max milling cutting thickness 5mm

To use BIT-MUS06-4006-50C1 on your Kongsberg PCS table, you need one of the following configurations.

· HSMU / MultiCut (1kW) Ibag requires chuck 42444067

· MultiCUT (1kW) Kavo requires chuck 02721314

· HPMU (3kW) / MultiCUT HP (3kW) requires chuck 42454728

To use BIT-MUS06-4006-50C1 on your Multicam router you need a 6mm collet installed.

Length (cm) 5
Width (cm) 0.6
Height (cm) 0.6
Net weight (kg) 0.015

Material Sub Category Thickness Method
ACM (Aluminium composite materials) ACM Aluminium composite materials < 5mm Milling
