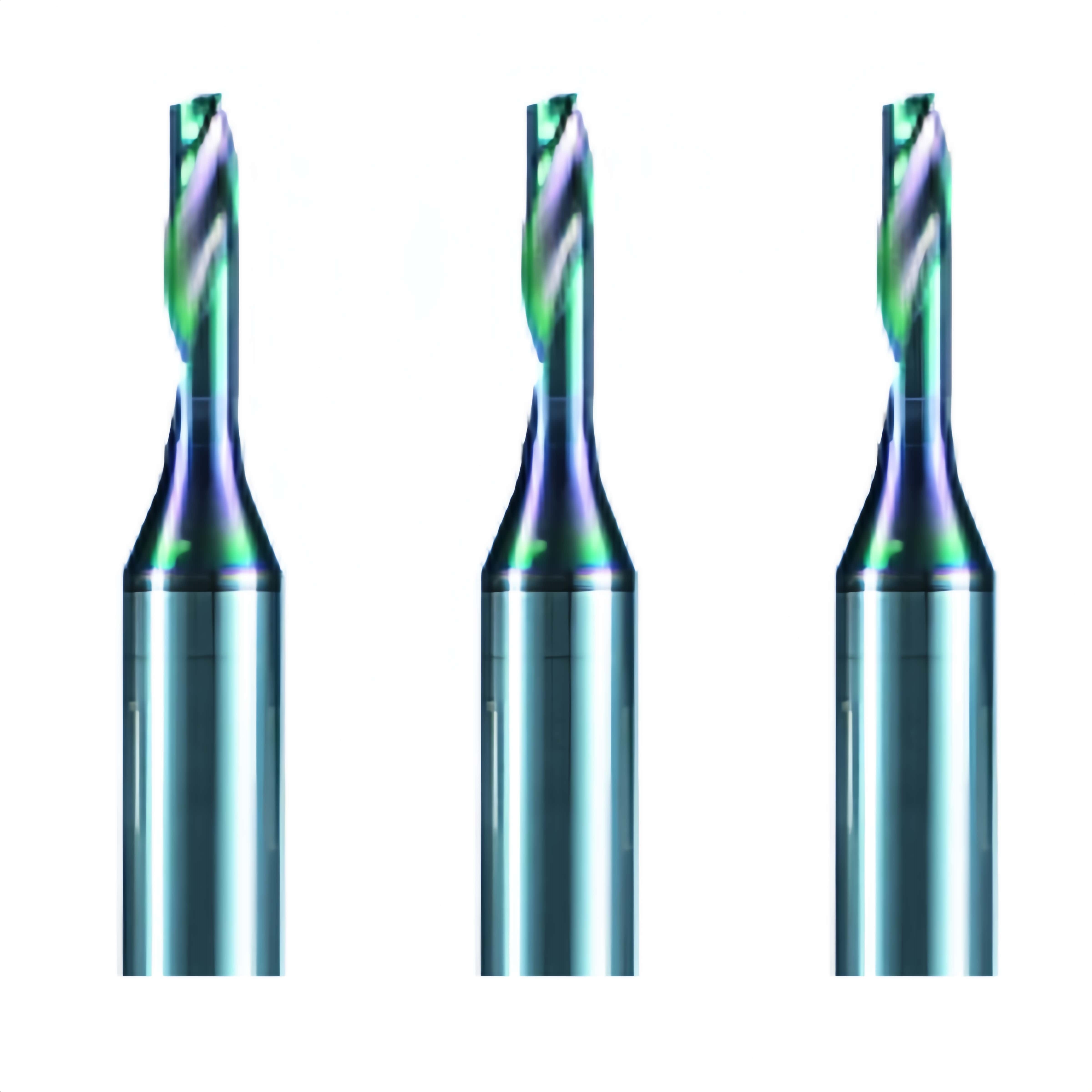

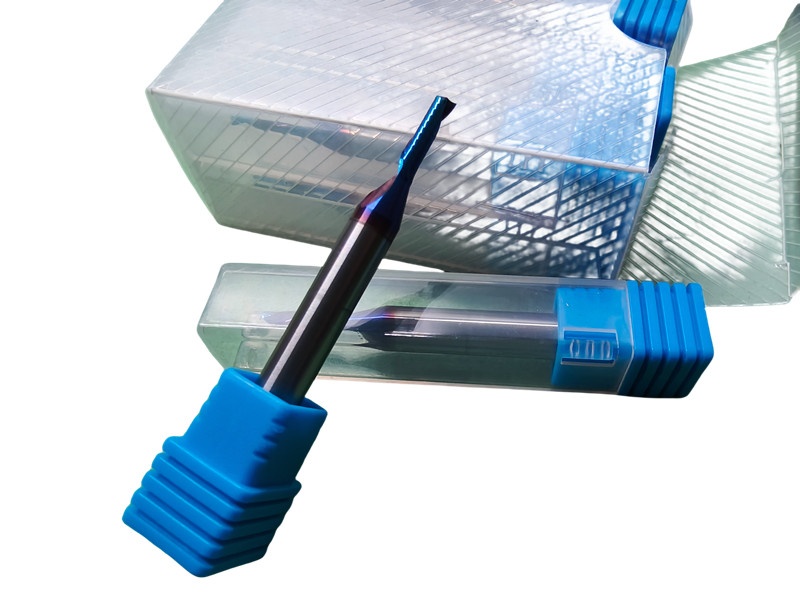

Multielement, multilayered “rainbow” coated, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 11mm.
Zund R503 Cnc Color-Coated Milling & Router Bits 5218135-Production Manufacturing Wholesale Sales Su
Zund R503 Cnc Color-Coated Milling & Router Bits 5218135-Production Manufacturing Wholesale Sales Su
Properties
Coated multipurpose router bit
Recommended materials
ACMAluminum alloyCorrugated plastic - PPExpanded PVCFoam - PEFoam - PURHard paperPlastic - PA 6.6Plastic - PCPlastic - PEPlastic - PETPlastic - PETGPlastic - PMMA (Acryl)Plastic - PPWood - MDFWood - MPXWood - PlywoodXPS
Tools
R45-sRM-ARM-A QCRM-LRM-S
Diameter of shank
6 mm
Max. rotations speed (1/min)
50000
Max. routing depth
11 mm
Number of cutting edges
1
Routing diameter
3 mm
Twist
right-hand twist
-
