Zund S3 Z10 3910301 Double-Edged Carbide (SHM) Knife Blade

CHINA maisi Blades supplies a full range of carbide blades and router bits, is an enterprise integrating sales and service, we can customize any specifications of products according to customer requirements, cutting blades manufacturers suppliers sellers wholesalers

Request A Quote

Description
Related Products

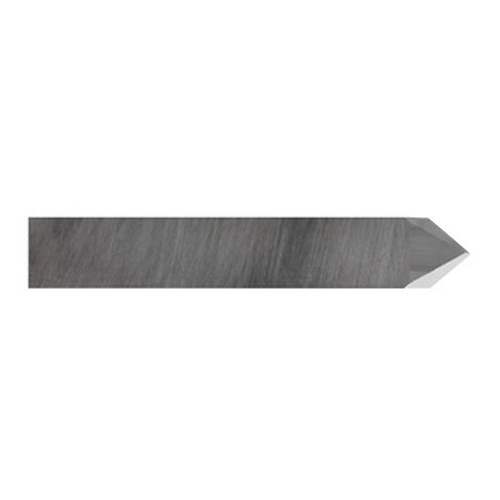

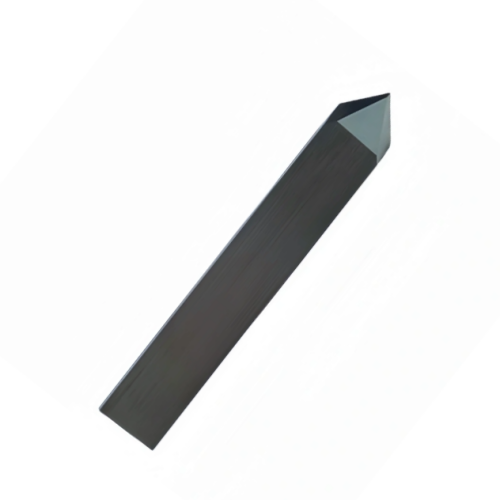

Zund S3 Z10 3910301 Double-Edged Carbide (SHM) Knife Blade

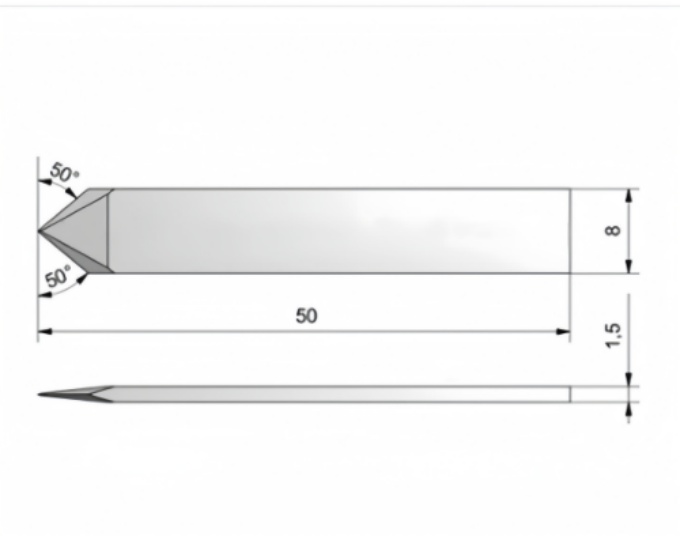

Cutting depth approx. 4,5 mm
no. (3910301, Z10 )
asymmetrical cut
Tip 0.75 mm outside the center

Special feature:
Optimized for a nice cut, the asymmetrical cut ploughs the material only to one side. Cut control function required.

Compatible Brand:
AXYZ
Aoke-Kasemake
Aristo
Atom
Torielli
USM
Wild Leica
Zund
iEcho

Cutter Models: Fully compatible with Zund S3, D3, G3, L3, and PN series flatbed digital cutters.

Tool Compatibility
The Z10 blade functions natively within specific Zund Tool Heads
Universal Cutting Tool (UCT) paired with Blade Holder Type 1 (part number 3960322)
Score Cutting Tool (SCT) paired with Blade Holder Type 1 (part number 3960322)
Recommended Materials
Thanks to its rigid design, operators on Reddit's Commercial Printing Community highly recommend the Z10 for achieving crisp, detailed cuts and avoiding over-rounded corners on tough materials. It is optimized for:
Graphics & Signage: Self-adhesive vinyls, reflective vinyls, PVC banners, and tarpaulin.
Packaging: Folding cartons, paper board, solid cardboard, and polypropylene.
Industrial Fabrics: Canvas, mesh, polyester fabric, and carbon fiber or glass fiber prepreg.
Plastics & Foams: Polycarbonate (PC), expanded PVC, magnetic foil, and hard foam cores.

Product number: Zund Z10 3910301 Bullmer B10 iEcho E10C Comagrav E10,ITC BDF-10

If you have more questions to know ,please contact us .
