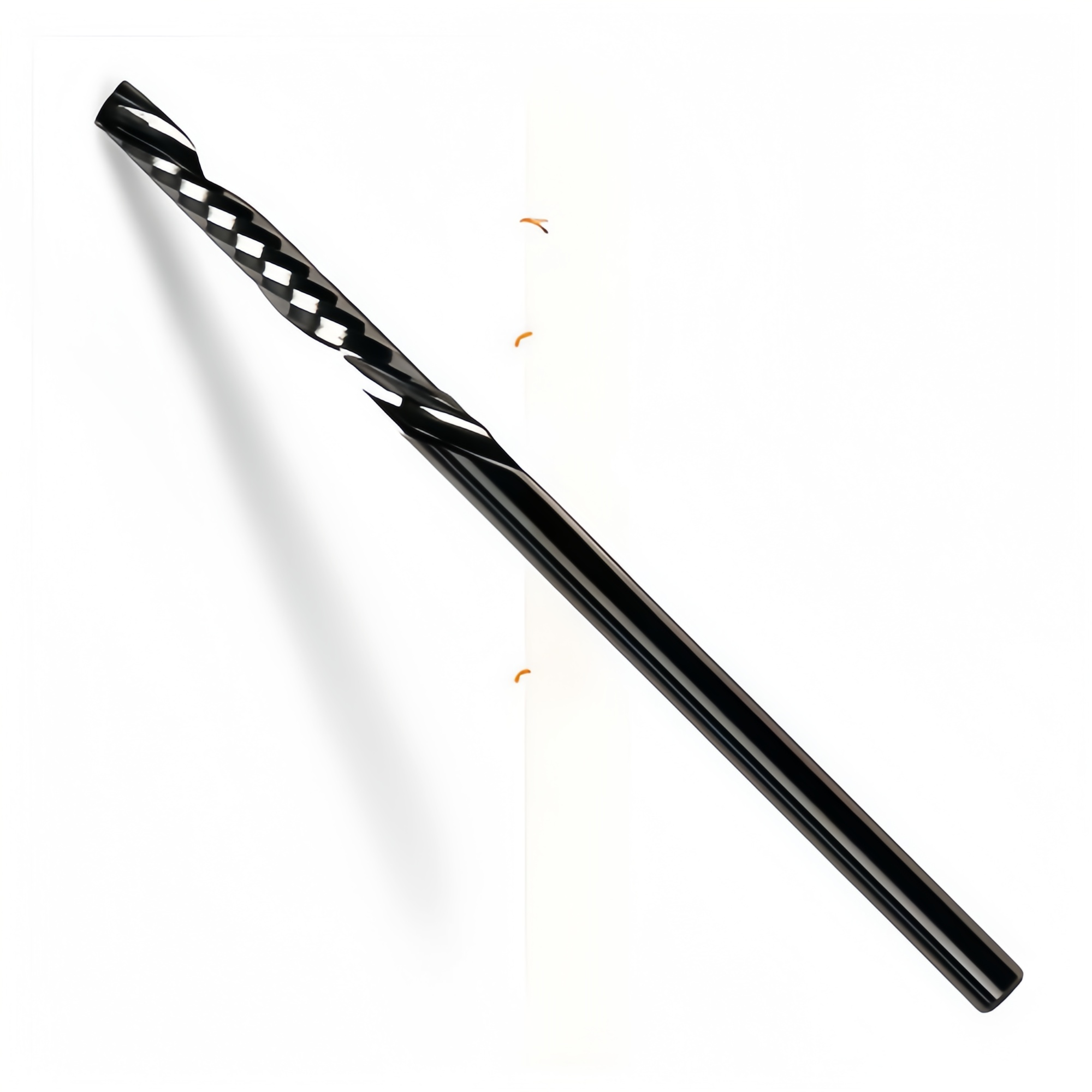

Summa 500-9851 F Series Carbide Upcut Router Bit for CNC Flatbed Cutters
CHINA Summa 500-9851 is a professional-grade industrial router bit designed specifically for the standard router module of Summa F series CNC flatbed cutting machines (such as F1612, F1832, etc.)
Request A Quote
Summa 500-9851 F Series Carbide Upcut Router Bit for CNC Flatbed Cutters
Specifications
Shank Diameter: 3 mm
Routing Diameter: 3 mm
Tool Length: 60 mm
Max Routing Depth: 20 mm
Flutes: 1 flute (Up-Cut, moves debris to the top)
Performance & Substrate Compatibility
The 500-9851 is a highly versatile tool capable of clean cuts across the most common rigid materials handled by the graphic and sign industries:
Foam Boards & Thick Plastics: Excellent for thick PVC foam, expanded polystyrene, and various insulation foams where deep, vertical passes are required.
Wood & MDF: Routs plywood, softwoods, and medium-density fiberboards cleanly up to its 20 mm threshold.
Acrylics & Composites: While material-specific bits deliver a more polished finish on acrylic, this multi-purpose version provides high durability and reliable evacuation of chips on generic plastics and aluminum composite panels.
Critical Operational Considerations
The Deflection Hazard: Because the routing diameter is narrow (3mm) but the cutting edge length is exceptionally long (20mm), this bit features a very high length-to-diameter ratio. It is highly prone to bending, deflection, and snapping if forced through tough materials too quickly.
Feed Rate Management: You must drop your feed rates and consider managing deep cuts in multiple shallow passes (step-downs) rather than a single 20 mm deep plunge, especially when routing harder woods or dense plastics.
Up-Cut Updraft: The single up-cut spiral design forces hot chips upward into your router module's vacuum cleaning kit. This minimizes the risk of plastic melting or welding back into the groove.
Setup Precision: When configuring this tool in Summa Axis Control, ensure you meticulously verify your Down Position origin over your protective mat to prevent damaging the elongated cutting tip.
If you have more questions to know ,please contact us .
