Summa 500-9857 Solid Carbide Milling & Router Bit D6/6 L50/12
Summa 500-9857 Solid Carbide Milling & Router Bit D6/6 L50/12
Product Description:

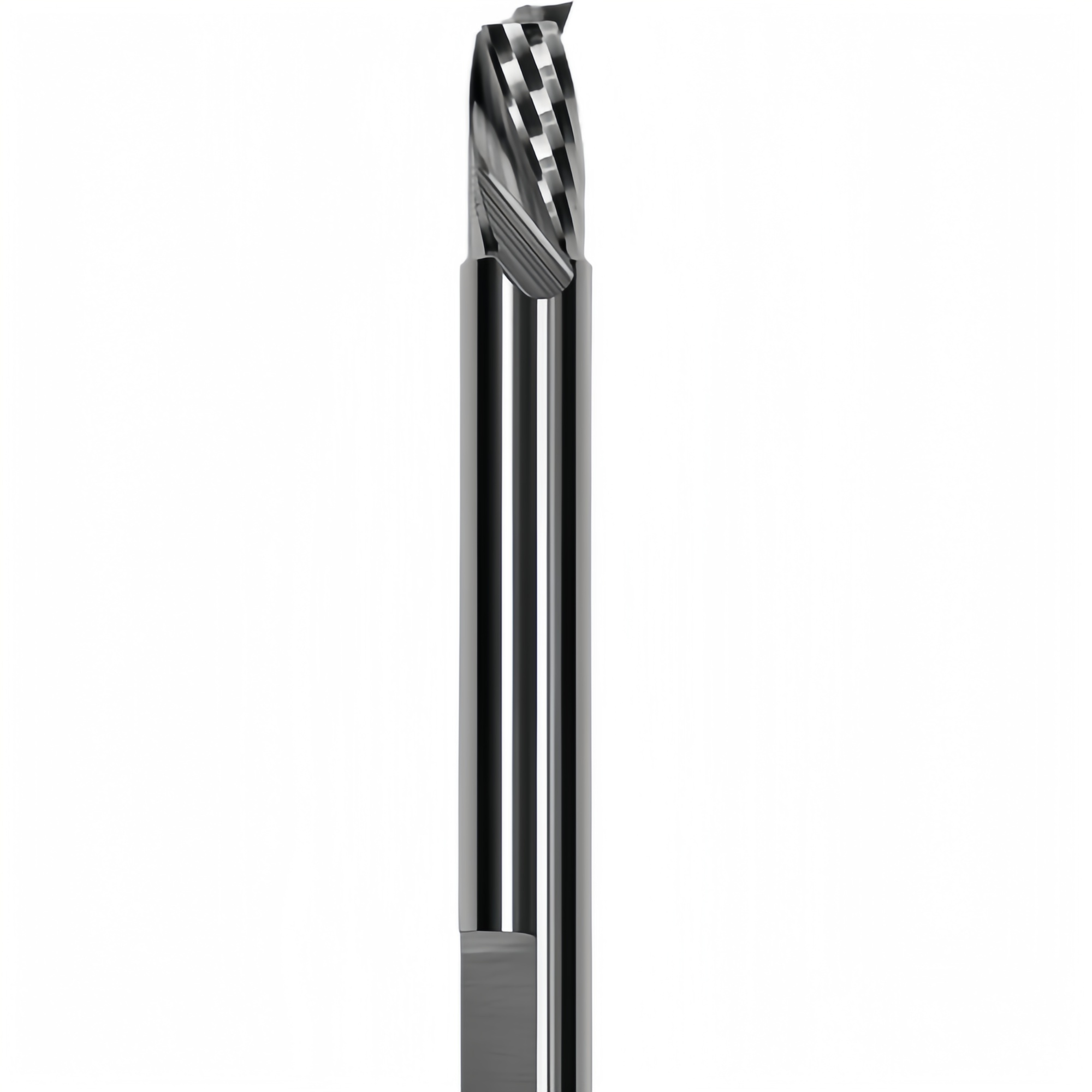

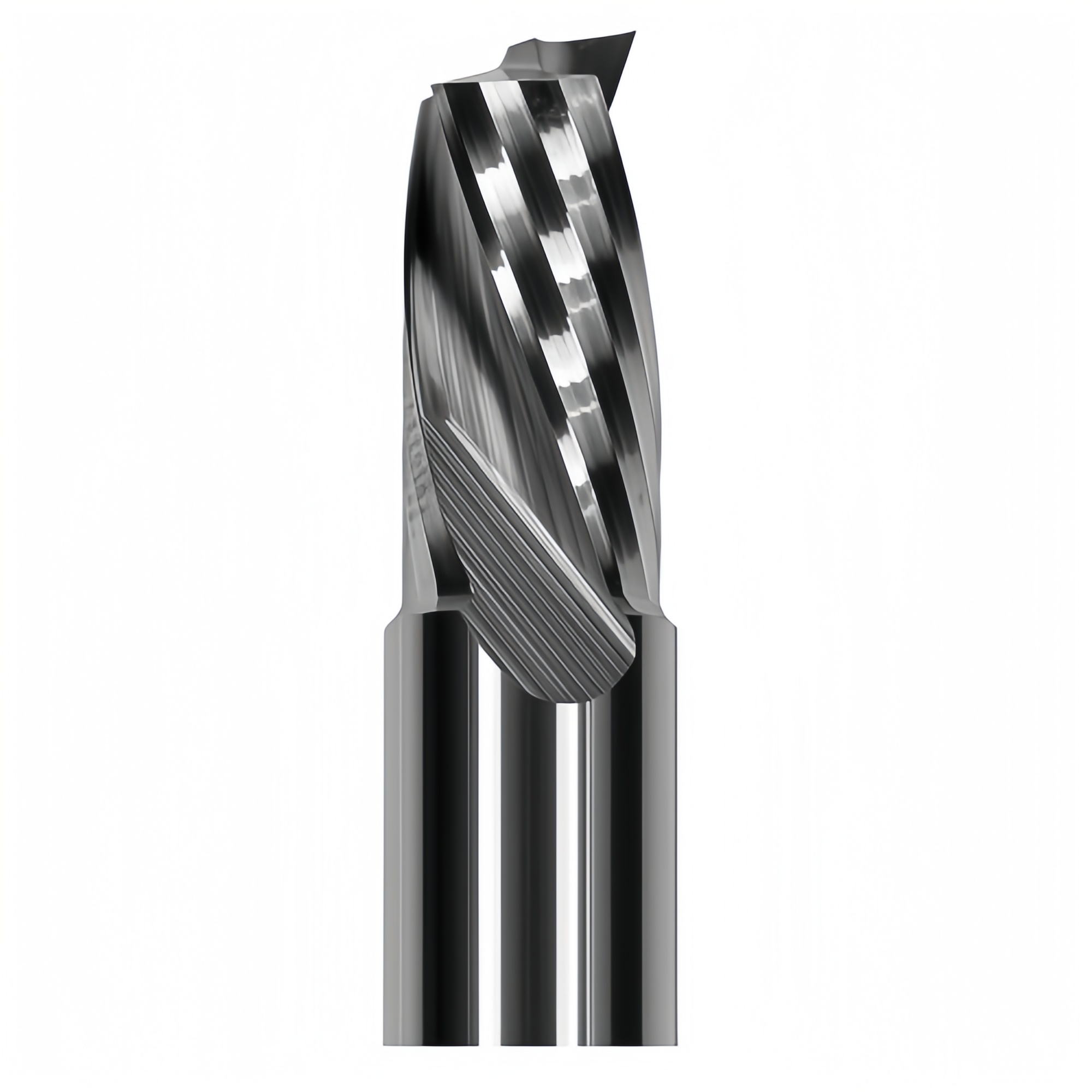

Summa 500-9857 is a solid carbide milling and router bit designed for compatible Summa F Series CNC flatbed cutting machines. With a D6/6 L50/12 specification and 1-flute upcut geometry, it provides stable routing performance and efficient material removal.
Configuration Code: D6/6 L50/12 1FL UC BAL MP
Shank / Routing Diameter: 6 mm / 6 mm
Total Length: 50 mm
Maximum Cut / Routing Depth: 12 mm
Flutes: 1 Flute (Single O-Flute)
Cut Type: Up Cut (UC) — pulls debris upward along with the blade rotation.
Balance: Balanced (BAL) — designed specifically to eliminate vibration on high-frequency spindles.
Purpose: Multi-Purpose (MP).
High-Load Material Applications
The 6 mm thickness allows this bit to withstand immense lateral forces, making it the premier choice for demanding, high-resistance rigid substrates up to 12 mm thick:
Aluminum Composite Materials (ACM / Dibond): Exceptional for high-speed routing of ACM panels without vibrating or leaving burrs.
Thick Acrylics & Polycarbonates: Effortlessly cuts dense engineered plastics, delivering smooth, uniform edge profiles.
Hardwoods, MDF, & Plywood: Highly efficient for structural wood panels and heavy signmaking substrates where thinner bits would deflect or snap.
Solid Aluminum Sheets: Suitable for light milling of thin, solid aluminum plates when paired with appropriate cooling/mist options.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
Summa 500-9857 is a solid carbide milling and router bit designed for compatible Summa F Series CNC flatbed cutting machines. With a D6/6 L50/12 specification and 1-flute upcut geometry, it provides stable routing performance and efficient material removal.
Configuration Code: D6/6 L50/12 1FL UC BAL MP
Shank / Routing Diameter: 6 mm / 6 mm
Total Length: 50 mm
Maximum Cut / Routing Depth: 12 mm
Flutes: 1 Flute (Single O-Flute)
Cut Type: Up Cut (UC) — pulls debris upward along with the blade rotation.
Balance: Balanced (BAL) — designed specifically to eliminate vibration on high-frequency spindles.
Purpose: Multi-Purpose (MP).
High-Load Material Applications
The 6 mm thickness allows this bit to withstand immense lateral forces, making it the premier choice for demanding, high-resistance rigid substrates up to 12 mm thick:
Aluminum Composite Materials (ACM / Dibond): Exceptional for high-speed routing of ACM panels without vibrating or leaving burrs.
Thick Acrylics & Polycarbonates: Effortlessly cuts dense engineered plastics, delivering smooth, uniform edge profiles.
Hardwoods, MDF, & Plywood: Highly efficient for structural wood panels and heavy signmaking substrates where thinner bits would deflect or snap.
Solid Aluminum Sheets: Suitable for light milling of thin, solid aluminum plates when paired with appropriate cooling/mist options.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-

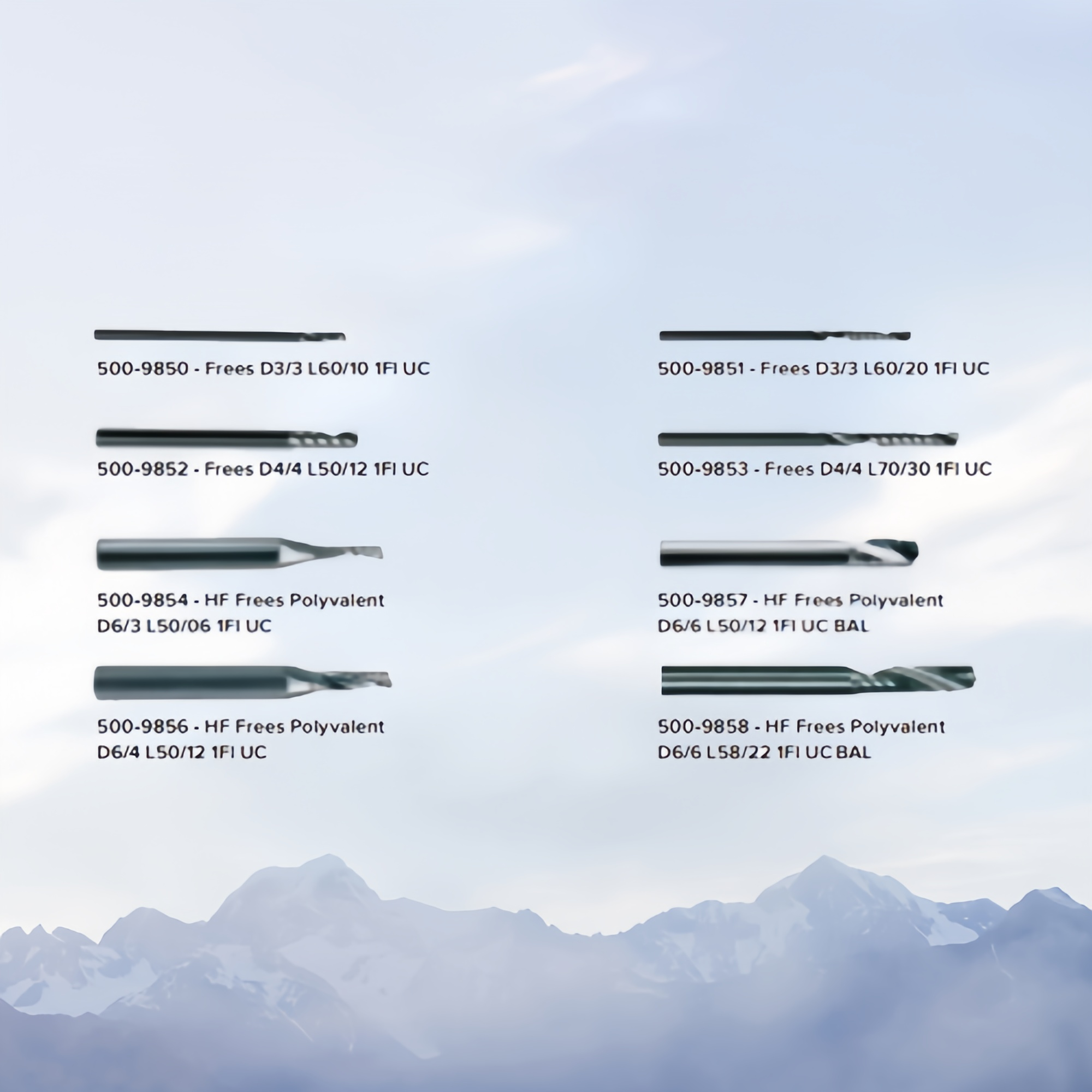

Summa 500-9850 D3/3 L60/10 Solid Carbide Milling & Router Bit
-
