Summa 500-9856 Solid Carbide Milling & Router Bit D6/4 L50/12

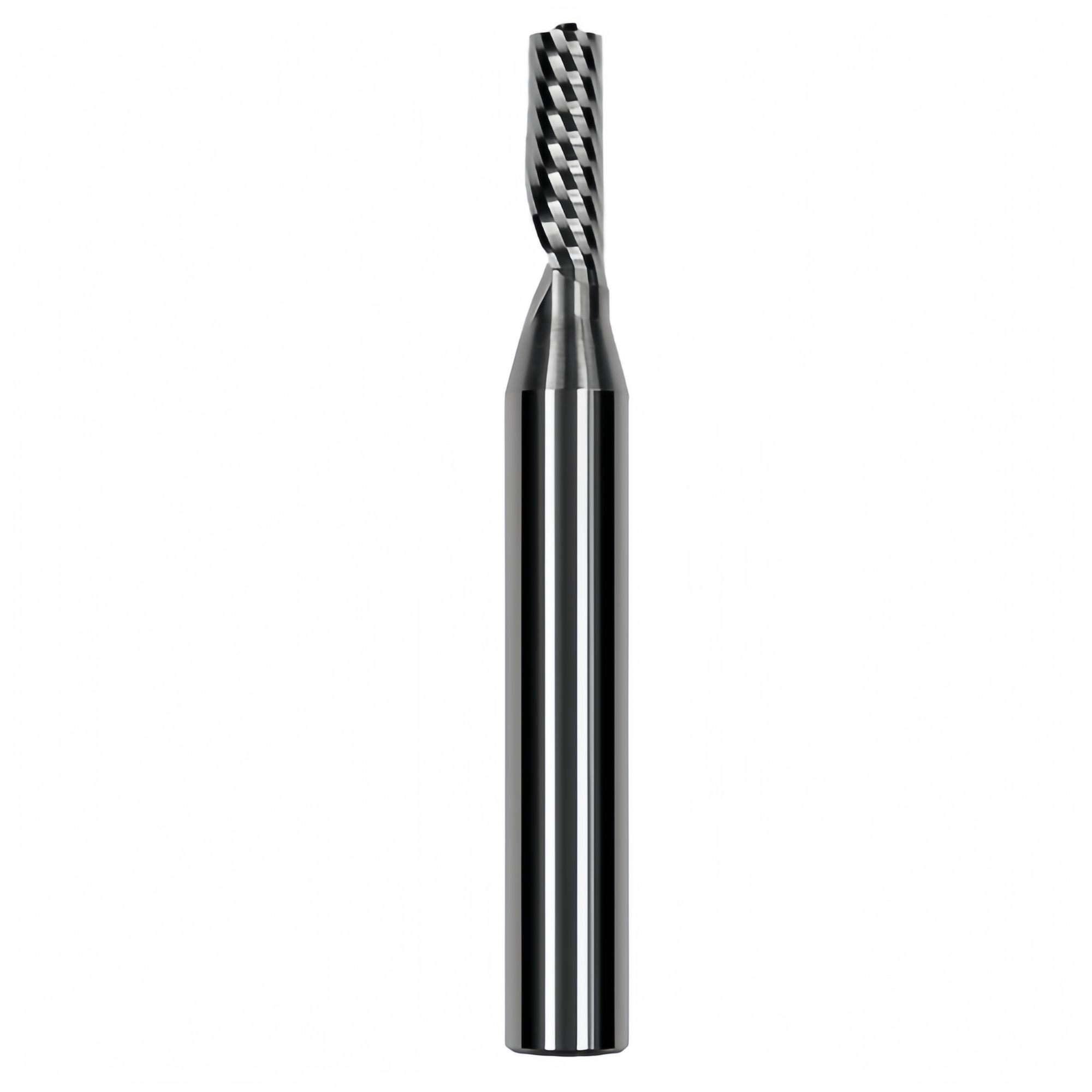

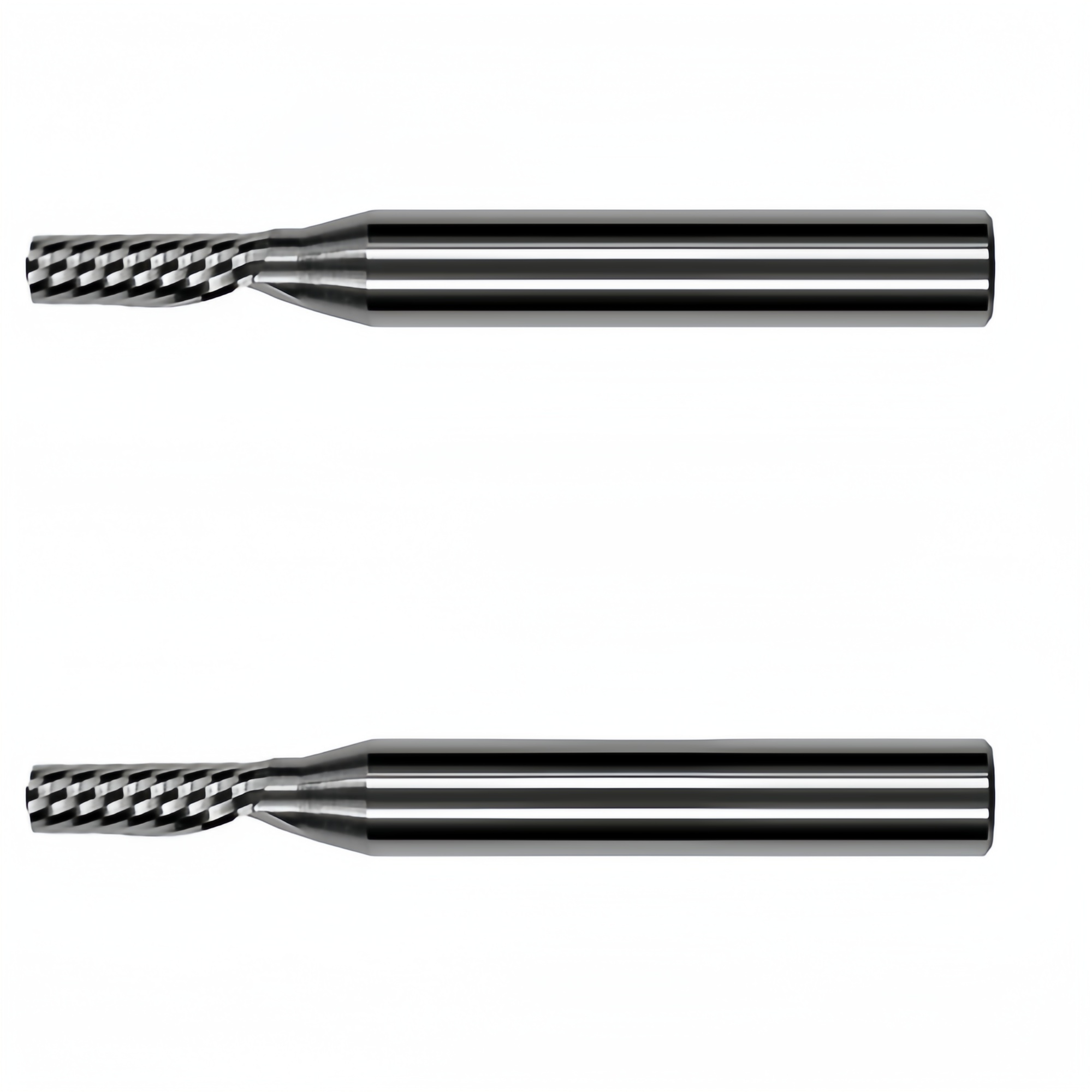

CHINA Summa 500-9856 (D6/4 L50/12) is a single-flute, balanced up-cut solid carbide router bit designed for the Summa F Series flatbed routing system. This bit features a hybrid stepped design—a heavy-duty 6 mm shank paired with a narrower 4 mm cutting diameter.
Request A Quote
Summa 500-9856 Solid Carbide Milling & Router Bit D6/4 L50/12
Description
These are Summa, general use, multi-purpose router bits for the Summa F Series Flatbed Cutters. Ideal for routing aluminum, composites, wood, and PVC.. For use with the Summa F Series High Frequency Routing System.
Specifications
Shank Diameter: 6 mm
Routing Diameter: 4 mm
Tool Length: 50 mm
Max. Routing Depth: 12 mm
Flutes:: 1 Flute, Up-Cut (UC)
Balancing: Balanced (BAL) for high-frequency spindles
Category: Multi-Purpose (MP)
Material: Ultra-fine Tungsten Solid Carbide
Compatibility
Summa F Series Flatbed Cutters
Summa F Series High Frequency Routing System
Key Design Benefits
The "BAL" Advantage: The bit is dynamically balanced (BAL). This engineering detail minimizes vibration when spun inside the Summa F Series High-Frequency Router module, producing cleaner edge finishes and extending the life of the spindle bearings.
Stepped Geometry Resistance: Because the upper body is a thick 6 mm core, this bit handles much higher lateral force and feed speed than straight 4 mm bits (like the 500-9852). It gives you the narrow cuts of a 4 mm tool with the break-resistance of a 6 mm tool.
Up-Cut Evacuation: Its single deep flute spiral scoops molten plastic and dust upward seamlessly, preventing debris from melting back down into the freshly cut track.
Material Adaptability & Performance
The 500-9856 is built as a general-use tool for multi-purpose sheet fabrication up to 12 mm thick:
Aluminum Composite Materials (ACM / Dibond): The 6 mm shank anchors the bit firmly to prevent chatter, while the 4 mm cutting tip cleanly routes out grooves and profiles.
Hardwoods, Plywood, & MDF: Slices through dense woods without burning, providing tight radius corners thanks to the smaller 4 mm cutting tip.
PVC & Solid Plastics: Ideal for processing acrylics, polycarbonates, and expanded foam sheets smoothly.
Operational Tip
Always ensure your machine uses a 6 mm collet to fit this shank. Keep the collet completely free of sawdust and chip debris before tightening to prevent tool runout
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
