Summa 500-9852 D4/4 L50/12 Milling & Router Bit for F Series Cutters

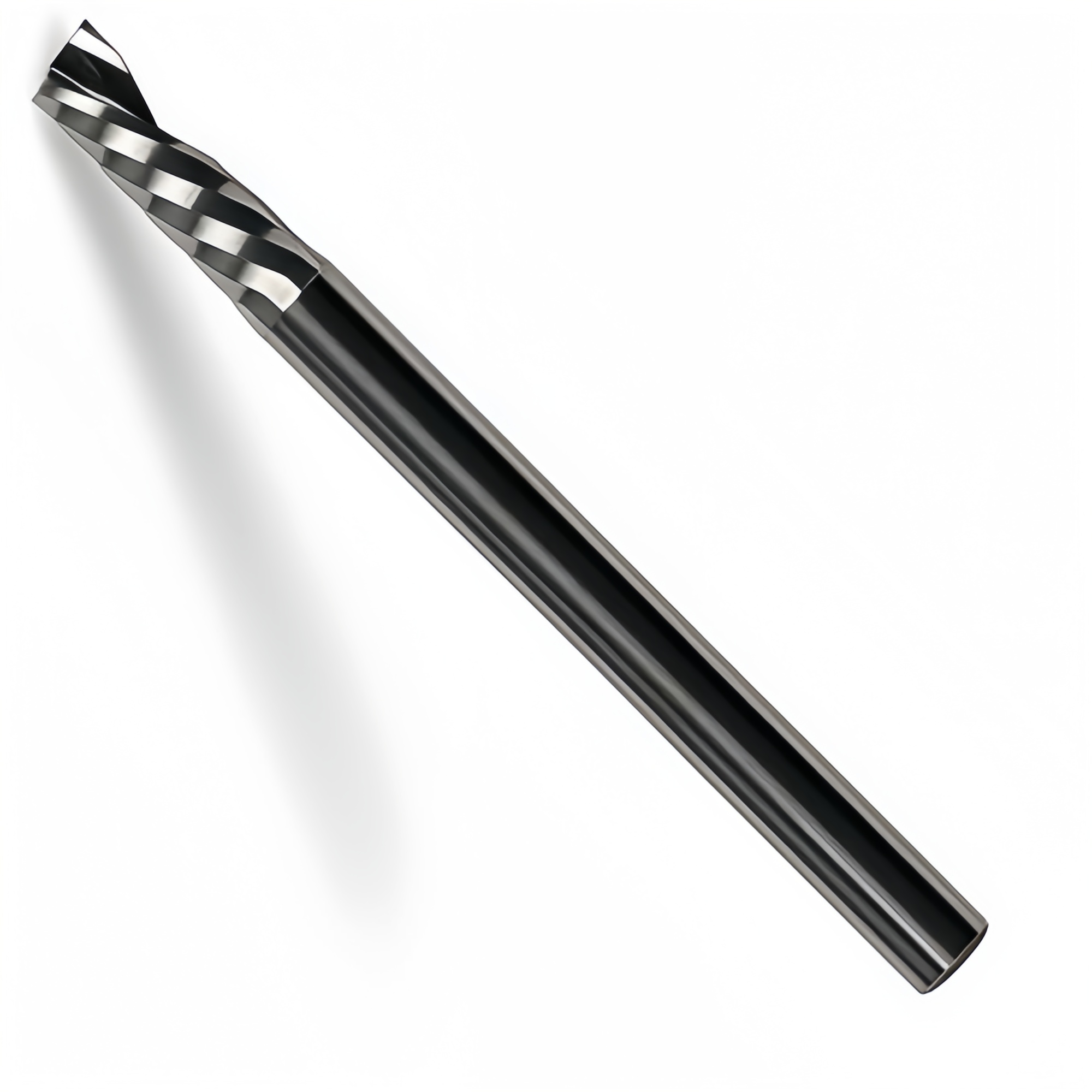

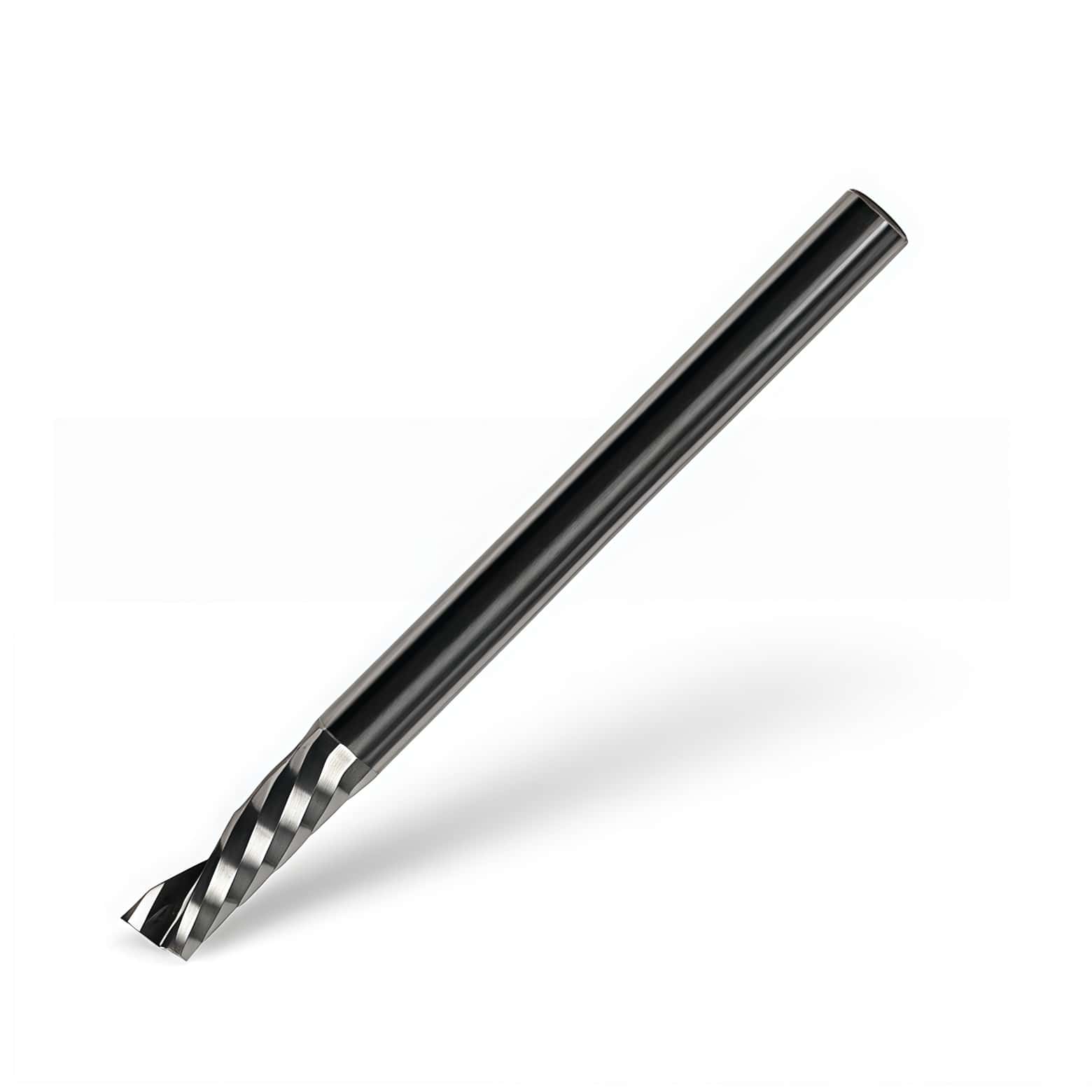

Summa 500-9852 (D4/4 L50/12) is a single-flute, up-cut solid carbide router bit designed specifically for the Summa F Series flatbed routing system. This bit steps up to a 4 mm diameter, providing significantly more structural rigidity and resistance to breakage compared to the thinner 3 mm variatio…
Request A Quote
Summa 500-9852 D4/4 L50/12 Milling & Router Bit for F Series Cutters
Specifications
Shank diameter: 4 mm
Routing diameter: 4 mm
Tool length: 50 mm
Max routing depth: 12 mm
Performance & Substrate Compatibility
The 500-9852 is widely considered a "workhorse" tool for mid-range rigid sheet materials. The increased 4 mm core allows you to push the machine faster than 3 mm bits without fearing immediate snapping.
Aluminum Composite Materials (ACM / Dibond): Excellent choice for routing ACM. The 4 mm thickness easily clears aluminum skins and polyethylene cores cleanly.
Acrylic & Solid Plastics: Ideal for processing acrylic sheet, polycarbonate, and dense PVC up to 12 mm thick.
Hardwoods, Plywood, & MDF: Easily handles dense woods and structural boards, making it perfect for signmaking panels and display components.
Critical Operational Considerations
Reduced Deflection: The 4 mm geometry means this tool suffers from drastically less deflection (bending) than 3 mm alternatives. This results in straighter, perfectly vertical edge profiles on thick materials.
Higher Feed Rates: Because the bit is physically stronger, you can safely increase your flatbed’s feed rate (travel speed), increasing your overall shop throughput.
Efficient Chip Removal: The single-flute spiral geometry continuously throws hot waste upward, ensuring the vacuum extraction hoods on the Summa router module clear debris instantly to prevent edge melting.
Collet Requirement: Remember that this bit requires a 4 mm collet in your Summa router spindle. Do not attempt to force it into a 3 mm collet or leave it loose in a 6 mm sleeve.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
Specifications
Shank diameter: 4 mm
Routing diameter: 4 mm
Tool length: 50 mm
Max routing depth: 12 mm
Performance & Substrate Compatibility
The 500-9852 is widely considered a "workhorse" tool for mid-range rigid sheet materials. The increased 4 mm core allows you to push the machine faster than 3 mm bits without fearing immediate snapping.
Aluminum Composite Materials (ACM / Dibond): Excellent choice for routing ACM. The 4 mm thickness easily clears aluminum skins and polyethylene cores cleanly.
Acrylic & Solid Plastics: Ideal for processing acrylic sheet, polycarbonate, and dense PVC up to 12 mm thick.
Hardwoods, Plywood, & MDF: Easily handles dense woods and structural boards, making it perfect for signmaking panels and display components.
Critical Operational Considerations
Reduced Deflection: The 4 mm geometry means this tool suffers from drastically less deflection (bending) than 3 mm alternatives. This results in straighter, perfectly vertical edge profiles on thick materials.
Higher Feed Rates: Because the bit is physically stronger, you can safely increase your flatbed’s feed rate (travel speed), increasing your overall shop throughput.
Efficient Chip Removal: The single-flute spiral geometry continuously throws hot waste upward, ensuring the vacuum extraction hoods on the Summa router module clear debris instantly to prevent edge melting.
Collet Requirement: Remember that this bit requires a 4 mm collet in your Summa router spindle. Do not attempt to force it into a 3 mm collet or leave it loose in a 6 mm sleeve.
If you have more questions to know ,please contact us .
Shenzhen Maisi Blades Co., Ltd.
Email: info@maisi-blades.com 798090832@qq.com
qq: 798090832
WeChat: 15983853385
-
